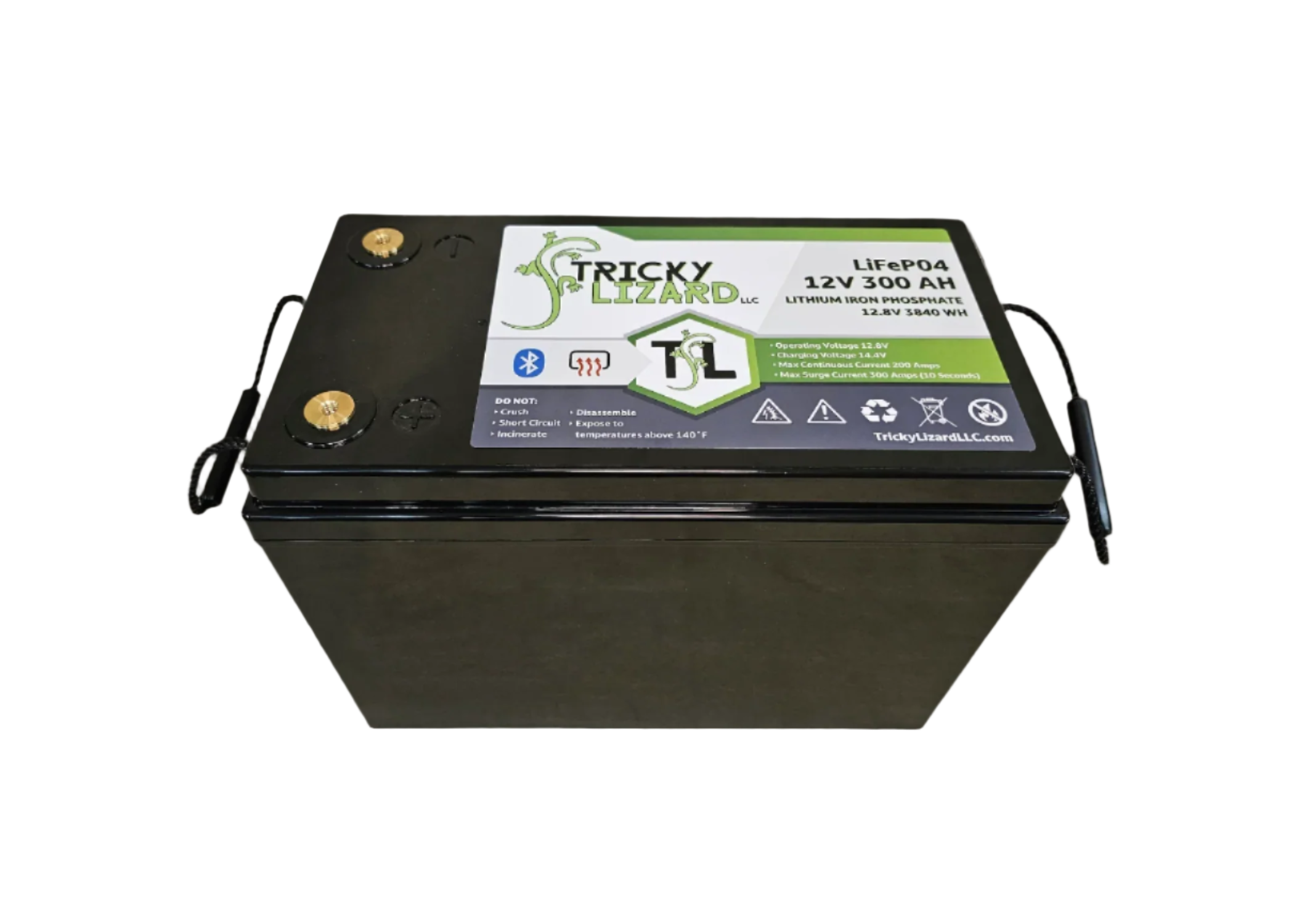

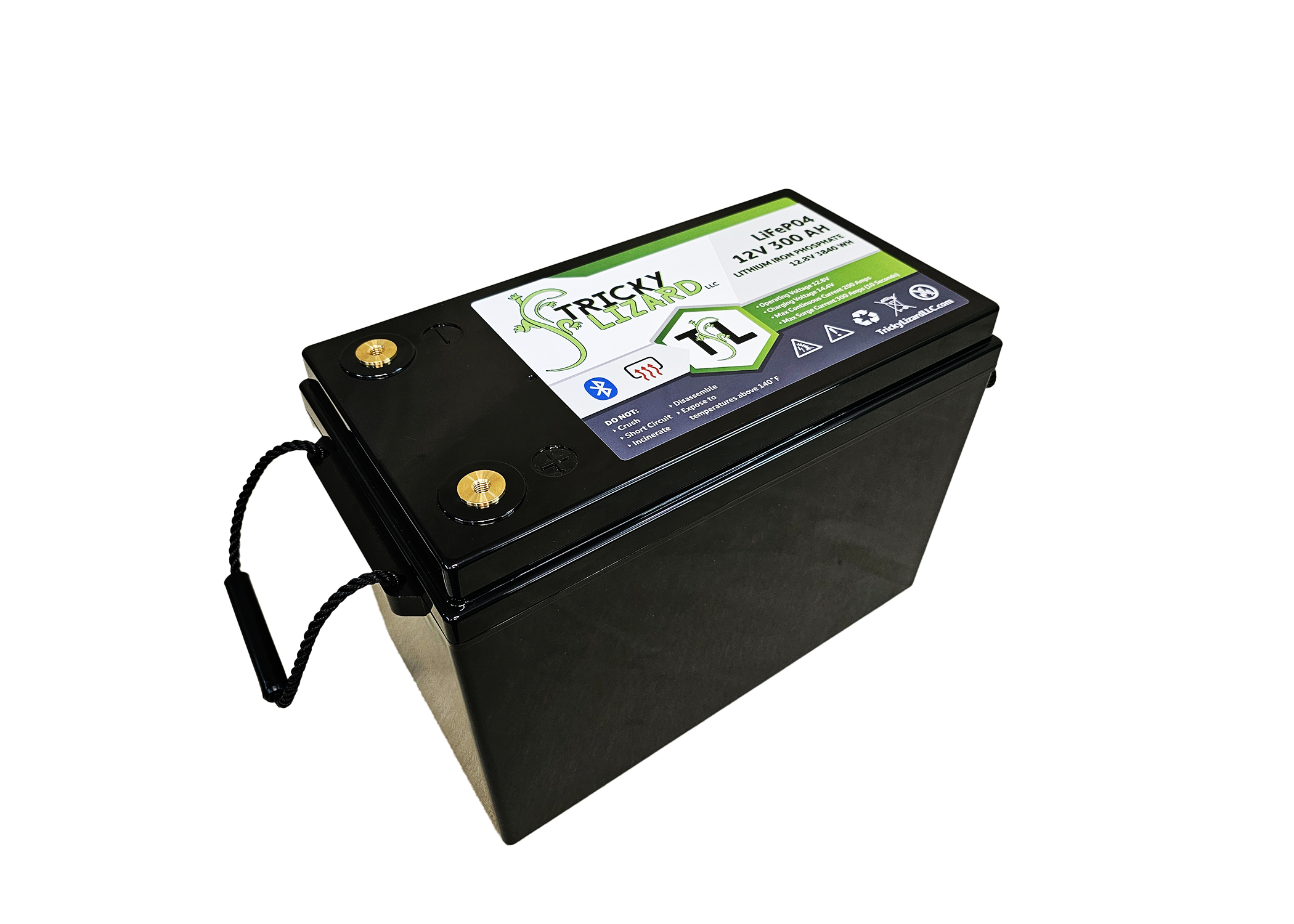

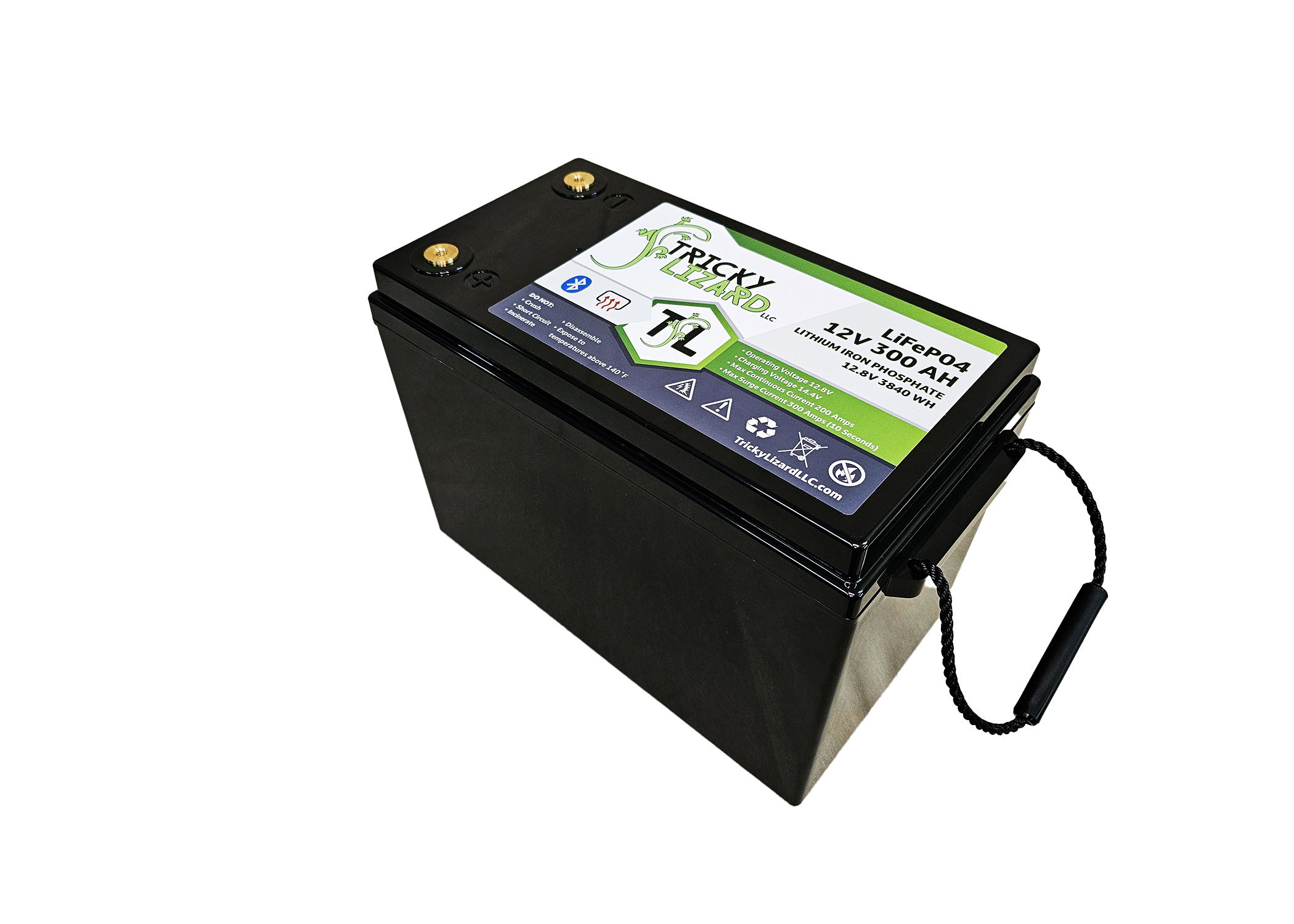

12V 300AH 3.8KWH LiFePO4 Battery

Specification Sheet

Introducing the Ultimate Powerhouse: 300 AH Lithium Battery with Heating Function, 10-year warranty and made in the USA

 Lithium Battery Specifications:

• Type: LiFeP04
• Nominal Voltage: 12.8 VDC
• Rated kWh Capacity: 3.8 kWh
• Usable Depth of Discharge (DoD): 100%
• Efficiency: 99%

Dimensions and Weight:

• Battery Dimensions: 13.31" L x 7.24" W x 10" H
• Weight: 55 lbs

Performance and Capacity:

• Amp-Hours: 300 AH
• Max Discharge Current: 200A
• Surge for Loads Over 480A: 0.05 seconds
• Cycles: 3K-5K

Charging and Discharging:

• Recommended Low Voltage Disconnect: 10.7V
• Discharge Cut-Off Voltage: 10V
• Recommended Charge Current: 0.5C
• Max Charge Current: 200A
• Max Charge Voltage: 14.6V
• Float Voltage: 13.4V - 13.8V
• Charging Type: CC/CV

Temperature Ranges:

• Charge Working Temperature: 30°F to 131°F (0°C to 55°C)
• Discharge Working Temperature: -20°F to 131°F (-28°C to 55°C)
• Storage Temperature: -10°F to 131°F (-20°C to 55°C)

Other Features:

• Internal BMS: Yes
• Internal Battery Heater: 5.5A
• Bluetooth: Yes
• Terminal Torque: 212 in/lbs
• Terminal Size: M8 - 15 ft/lbs
• Case Material: Plastic ABS121H
• Water Resistance: IP65 (Non-Submersible)
• Model Number: TLA300AH 12V
