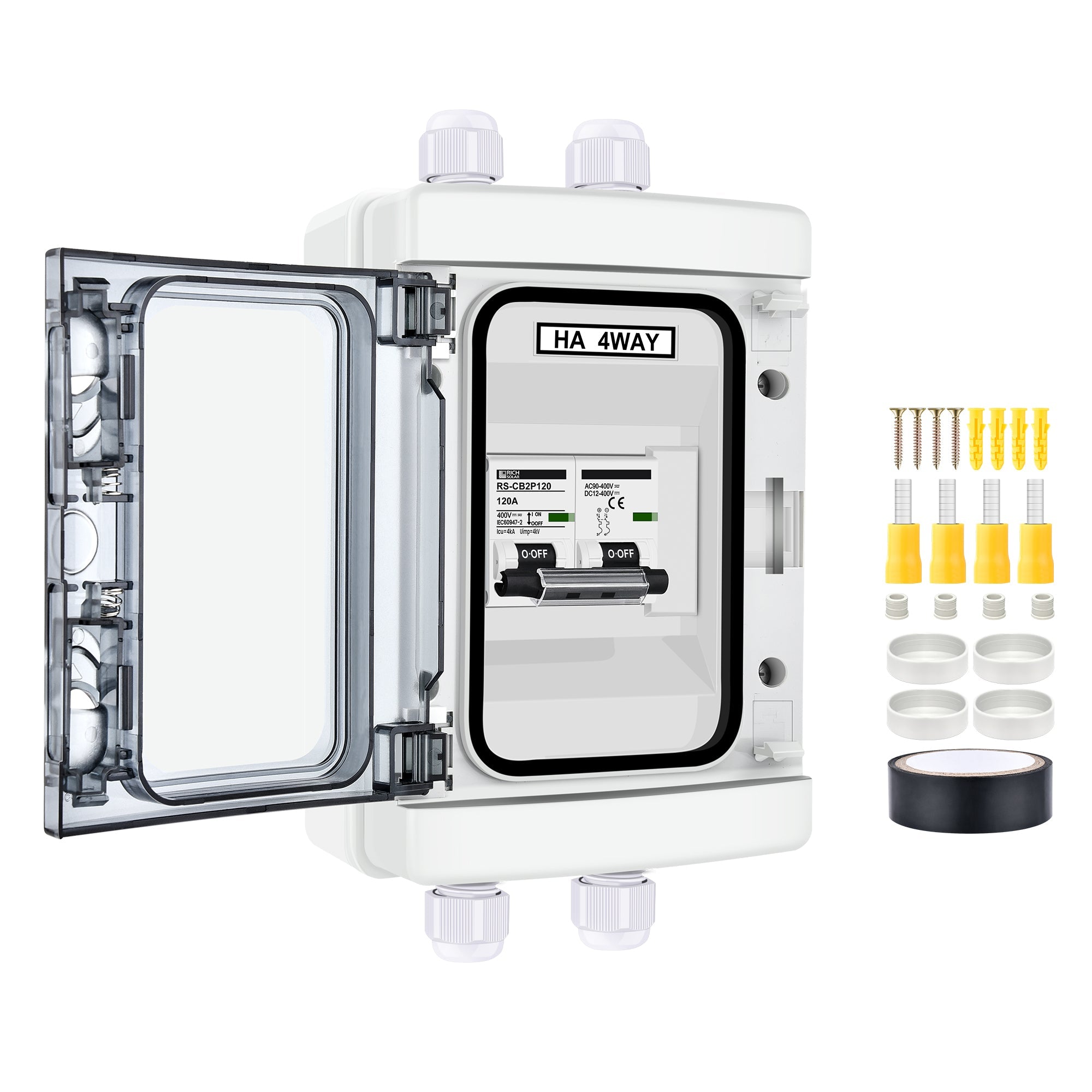

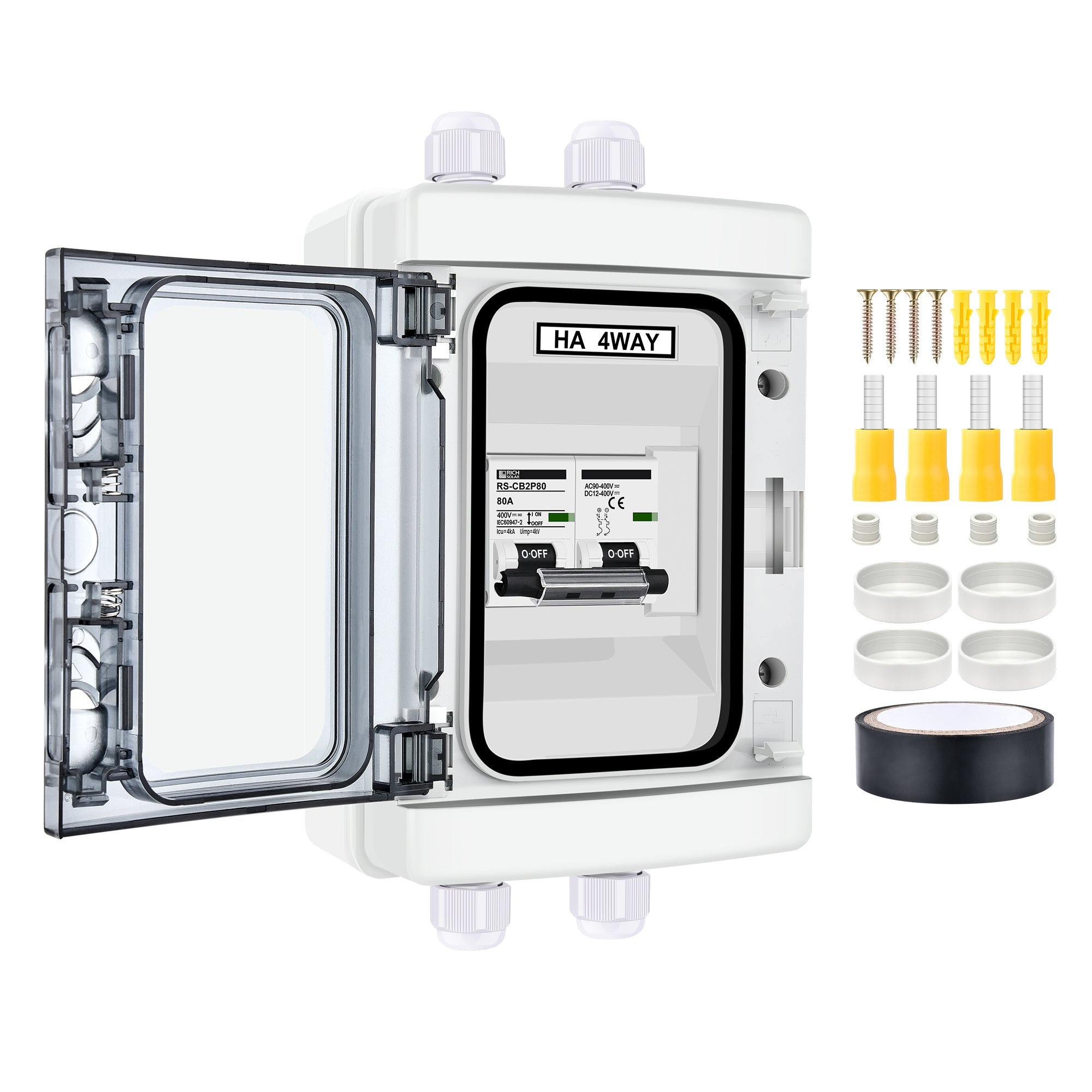

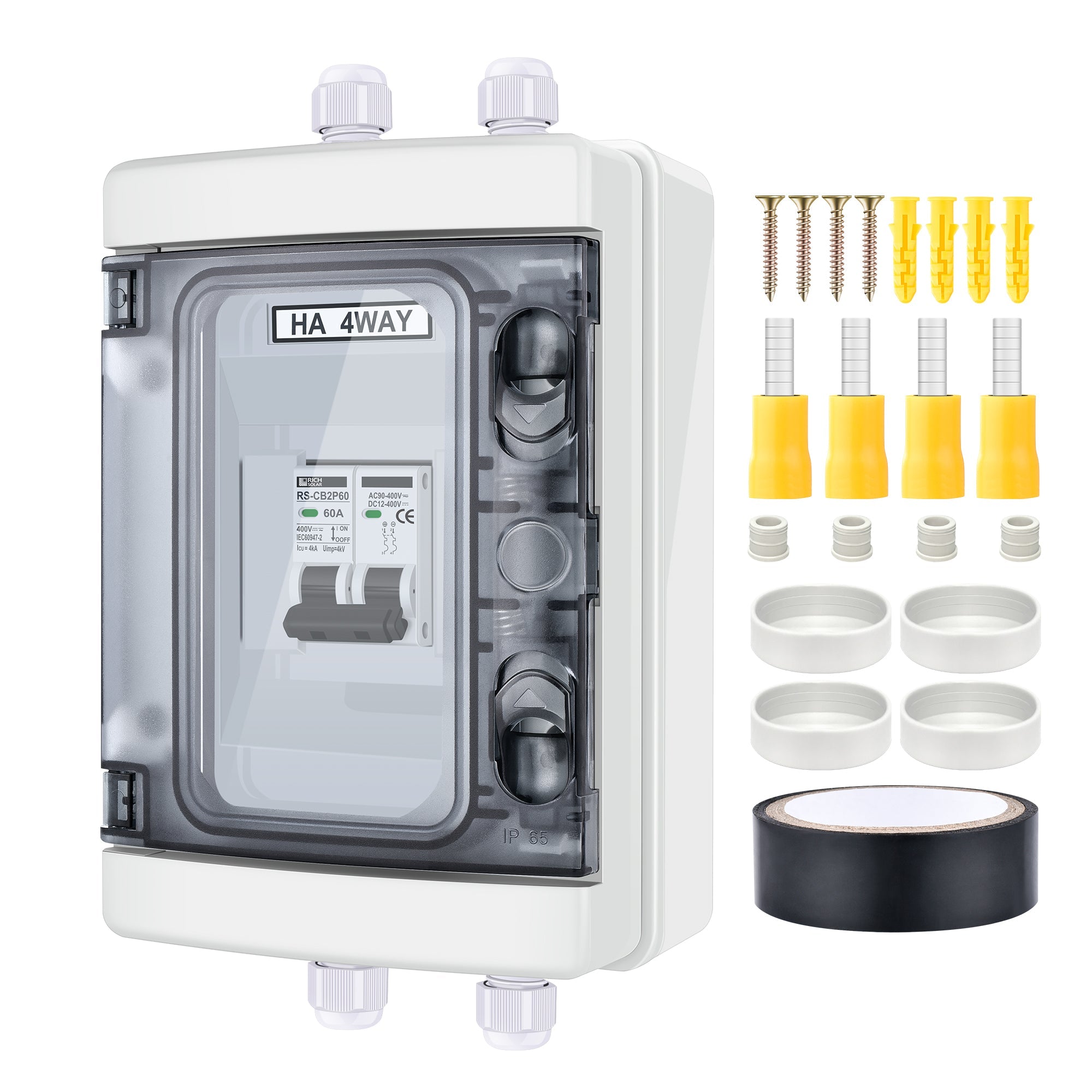

5 Pole Outdoor Circuit Breaker Box

Features Dual-Pole Circuit Protection: Provides reliable protection for AC and DC circuits with a 4,000A breaking capacity. Wide Voltage Compatibility: Supports AC 90–400V and DC 12–400V systems. IP65 Weatherproof Enclosure: Protects agains

Features

• Dual-Pole Circuit Protection: Provides reliable protection for AC and DC circuits with a 4,000A breaking capacity.
• Wide Voltage Compatibility: Supports AC 90–400V and DC 12–400V systems.
• IP65 Weatherproof Enclosure: Protects against water, dust, and harsh environments.
• Transparent Flip Cover: Enables quick visual status checks without opening the enclosure.
• Industrial-Grade PC/ABS Housing: Impact-resistant construction ensures long-lasting durability.
• Built-in DIN Rail Design: Simplifies installation of circuit breakers and DIN rail components.
• Enhanced Copper Bus Bars: Expanded neutral and ground terminals ensure secure electrical connections.
• Pre-drilled Wiring Ports: Simplify cable routing and installation.
• Easy Wall Mount Installation: Enables fast, secure installation on flat surfaces.
• Ideal for Solar Power Systems: Perfect for solar PV systems, RVs, and off-grid applications.
• Number of Poles: 2P
• Current Ratings: 30A, 40A, 60A, 80A, 120A, 150A, 200A, 250A
• Rated Voltage: AC 90–400V; DC 12–400V
• Rated Frequency: 50/60Hz
• Breaking Capacity: 4,000A
• Endurance: ≥4,000 Operations (30A–60A); ≥20,000 Operations (80A–250A)
• Protection Rating: IP65 Exterior / IP20 Interior
• Operating Temperature: 23°F to 104°F (-5°C to 40°C)
• Enclosure Material: Industrial-Grade PC/ABS
• Mounting: Wall Mount with Built-in DIN Rail

Specifications

Questions about this product, shipping, or warranty? Contact Tricky Lizard.

SKU: RS-CB2P80
