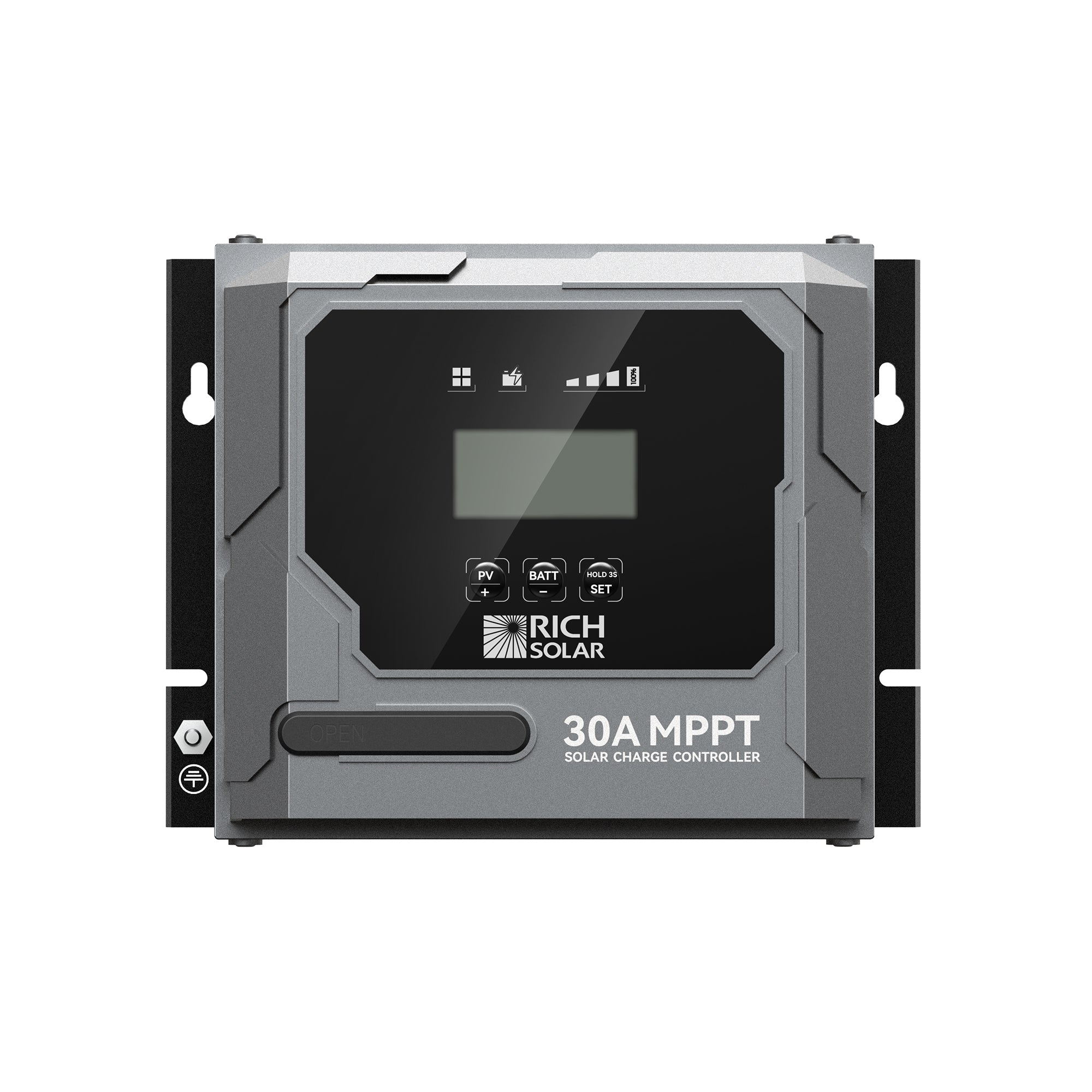

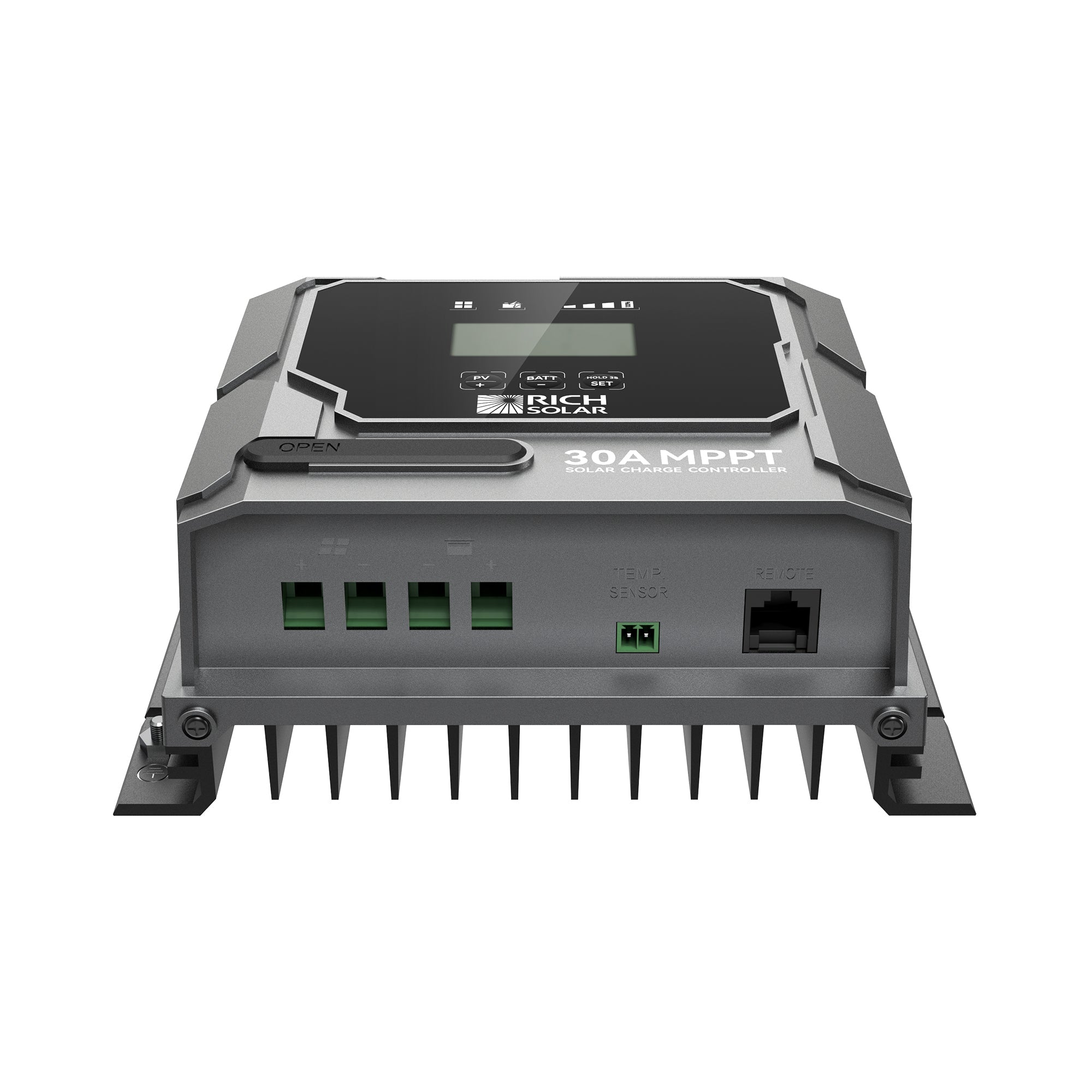

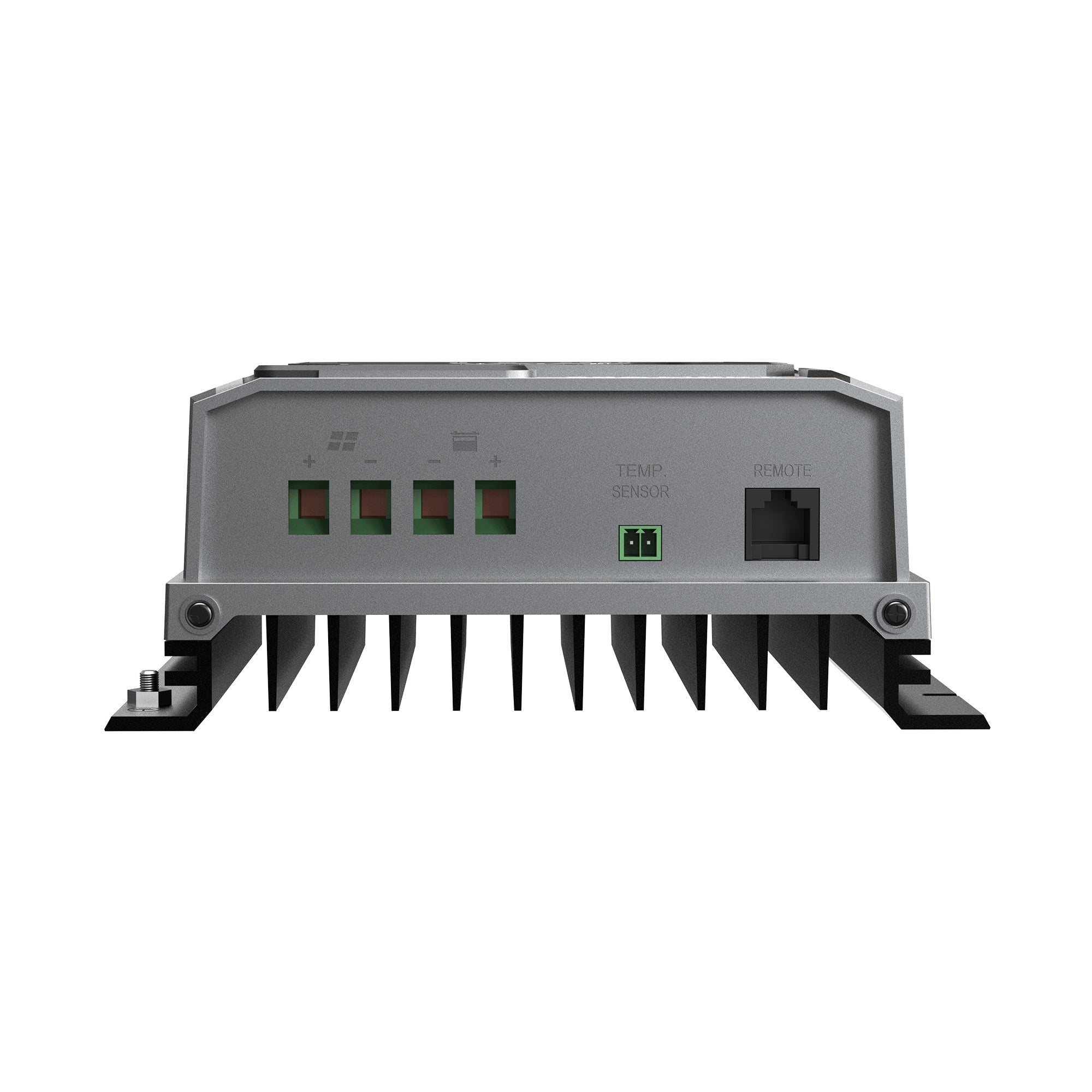

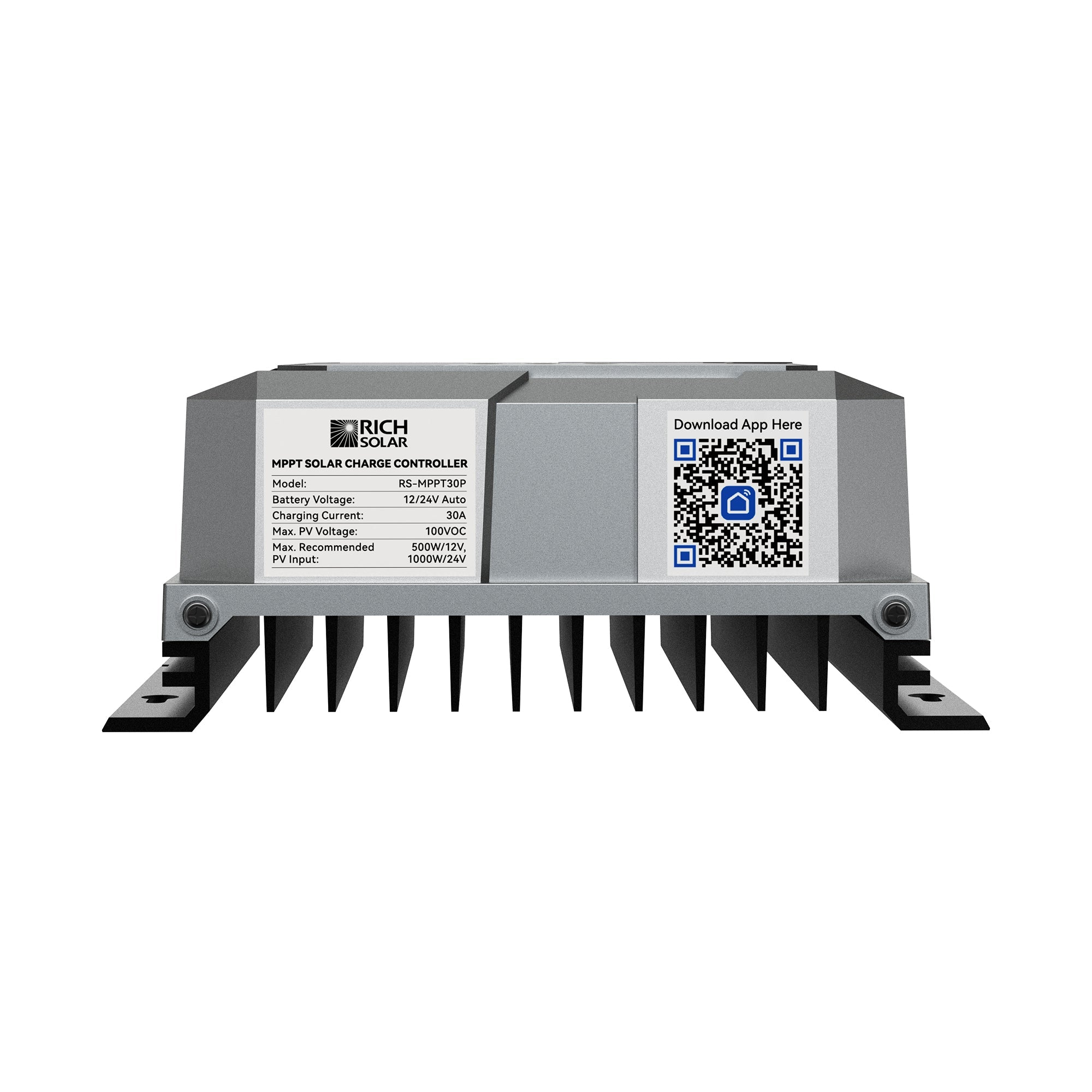

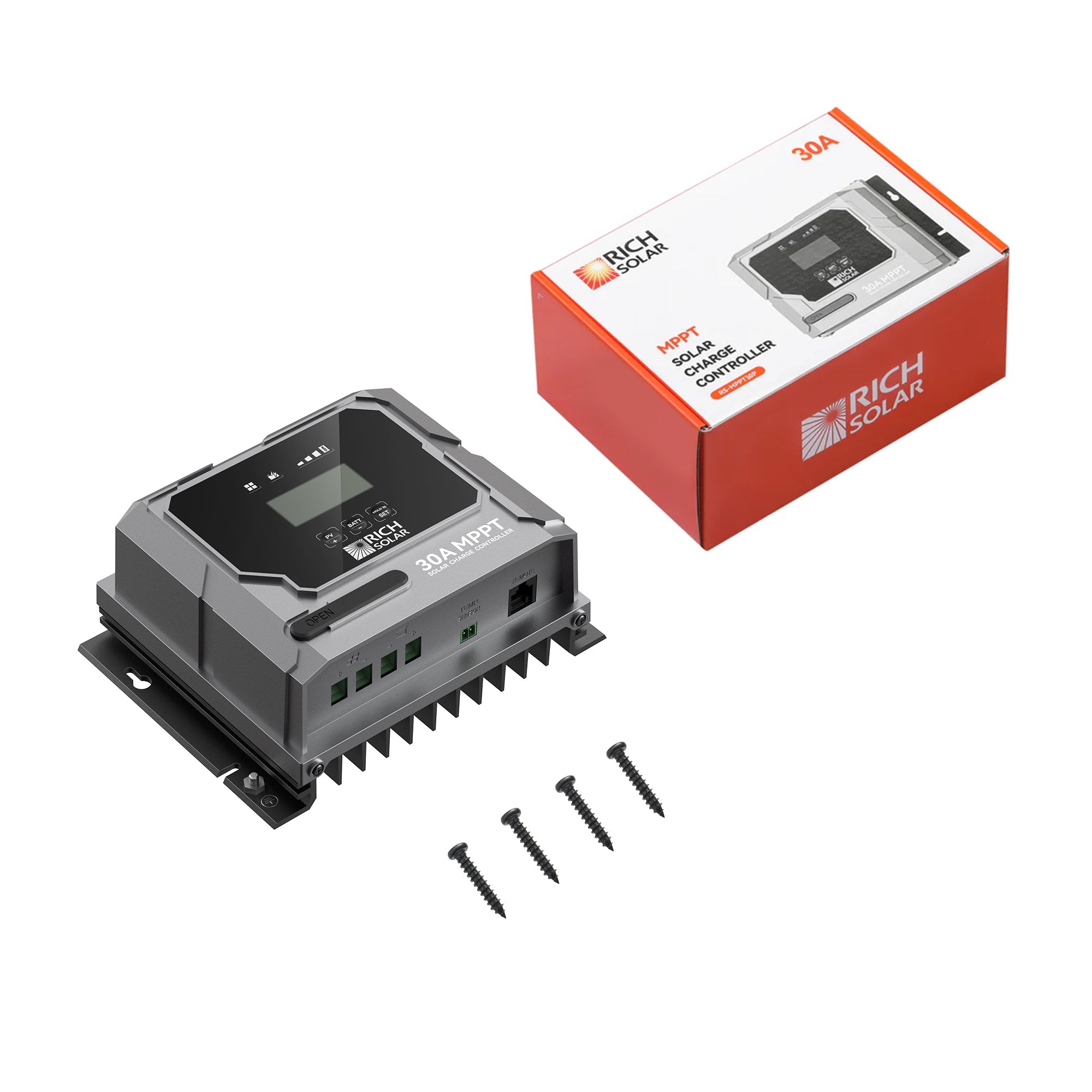

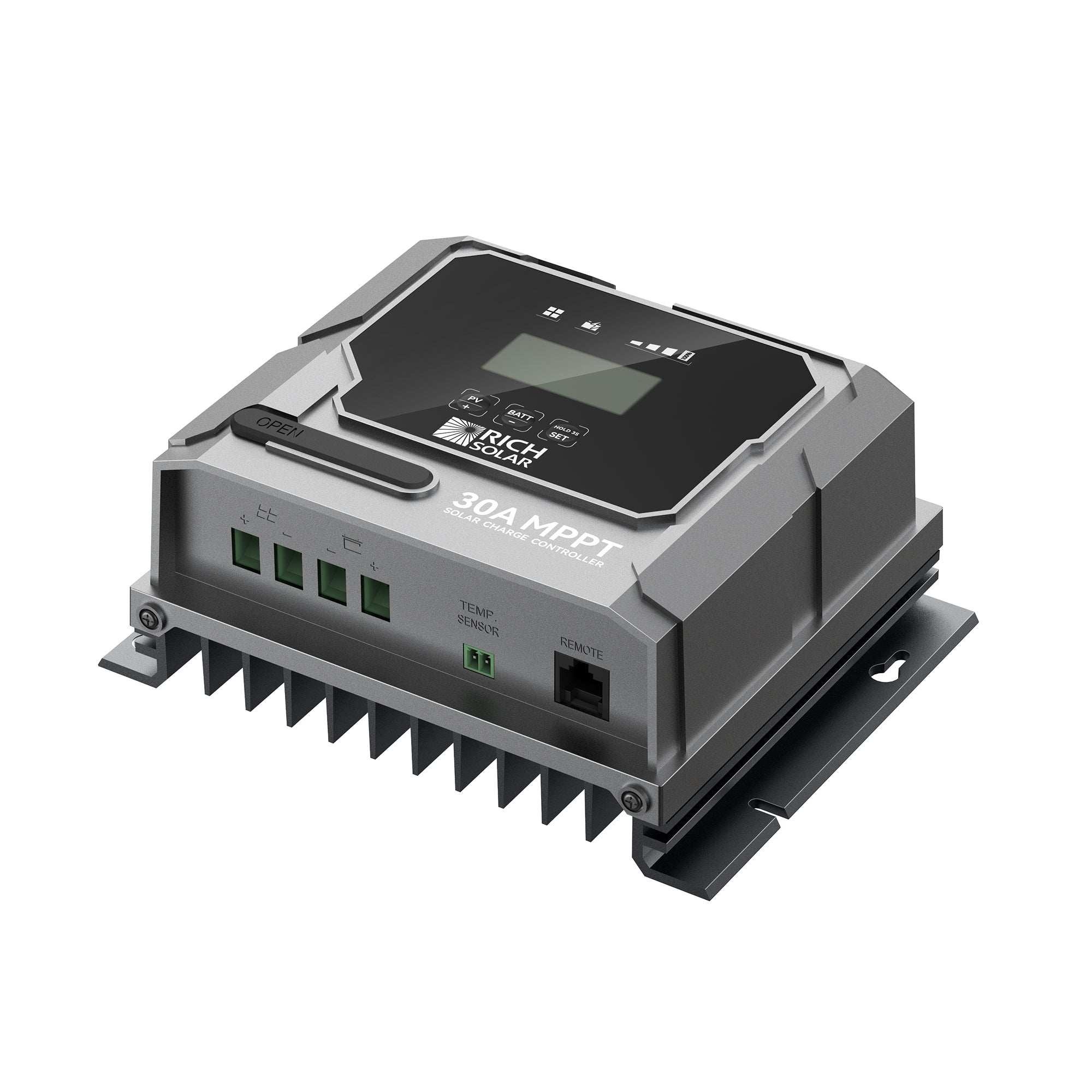

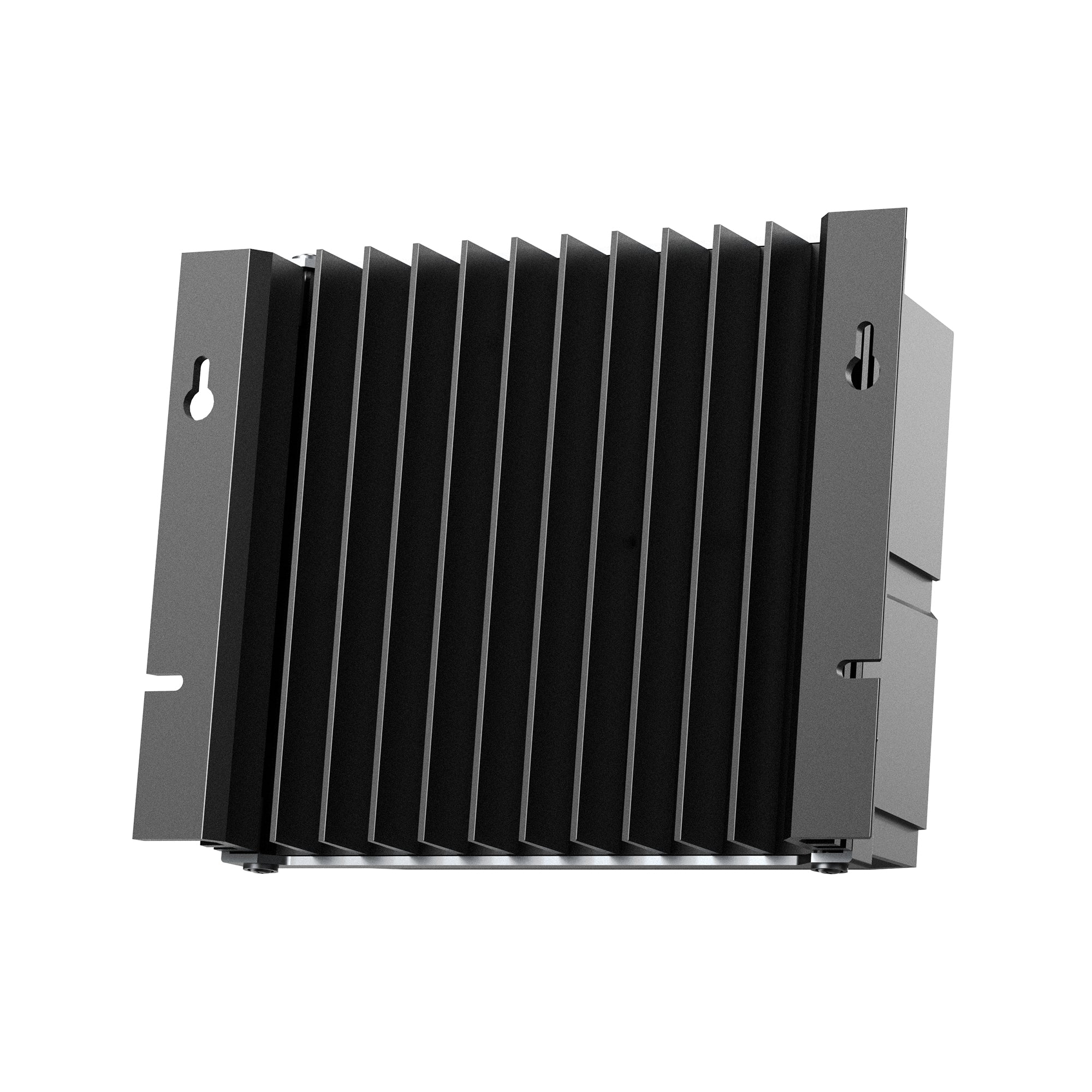

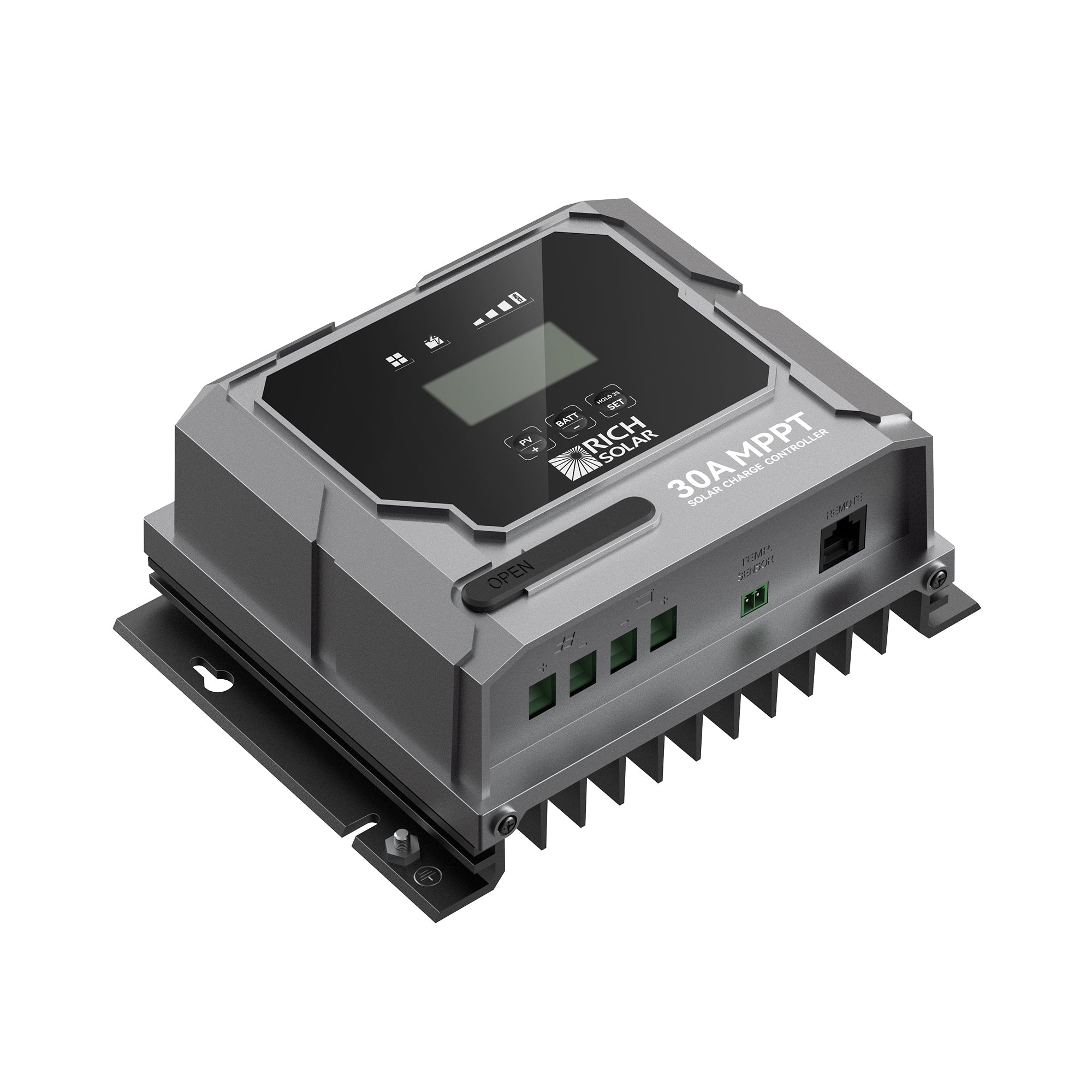

BRAVO 30 — 30 Amp MPPT Solar Charge Controller

Advanced MPPT solar charge controller with >99.5% tracking and 98% conversion efficiency. Auto 12V/24V detection, supports LiFePO4, LTO, Gel, AGM, and more. IP43-rated, with full safety protection, deep discharge recovery, Bluetooth monitor

Features

• Efficient Solar Charging
• Over 99.5% MPPT Tracking Efficiency: Maximizes solar energy harvest under changing sunlight conditions.
• Up to 98% Charge Conversion Efficiency: Converts more solar power into usable battery charging energy.
• Supports up to 1000W PV Input: Handles larger solar arrays for faster battery charging.
• Flexible System Compatibility
• 12V/24V Auto Detection: Automatically identifies the system voltage during installation.
• 100V Max PV Open Circuit Voltage: Supports flexible solar panel configurations and system expansion.
• Supports Multiple Battery Types: Compatible with Crystal, GEL, AGM, Flooded (WET), Calcium, LCO, LFP, and LTO batteries.
• Smart Monitoring
• Built-In Bluetooth Monitoring: View real-time charging status through the RICH SOLAR App.
• LCD Display: View solar input, battery status, and charging information.
• Optional Accessories: Compatible with an optional remote meter and battery temperature sensor.
• Comprehensive Reliability
• Certified to UL 1741, FCC, CE, and RoHS standards.
• Advanced Electronic Protection: Protects against over-voltage, reverse discharge, and circuit faults.
• Conformal Coated Circuit Board: Improves long-term durability in demanding environments.
• Maximum Solar Input Current: 30A
• Maximum Charging Current: 30A
• Recommended Solar Power: 500W (12V) / 1000W (24V)
• Nominal System Voltage: 12V/24V Auto-Detect

Specifications

Questions about this product, shipping, or warranty? Contact Tricky Lizard.

SKU: RS-MPPT30P
