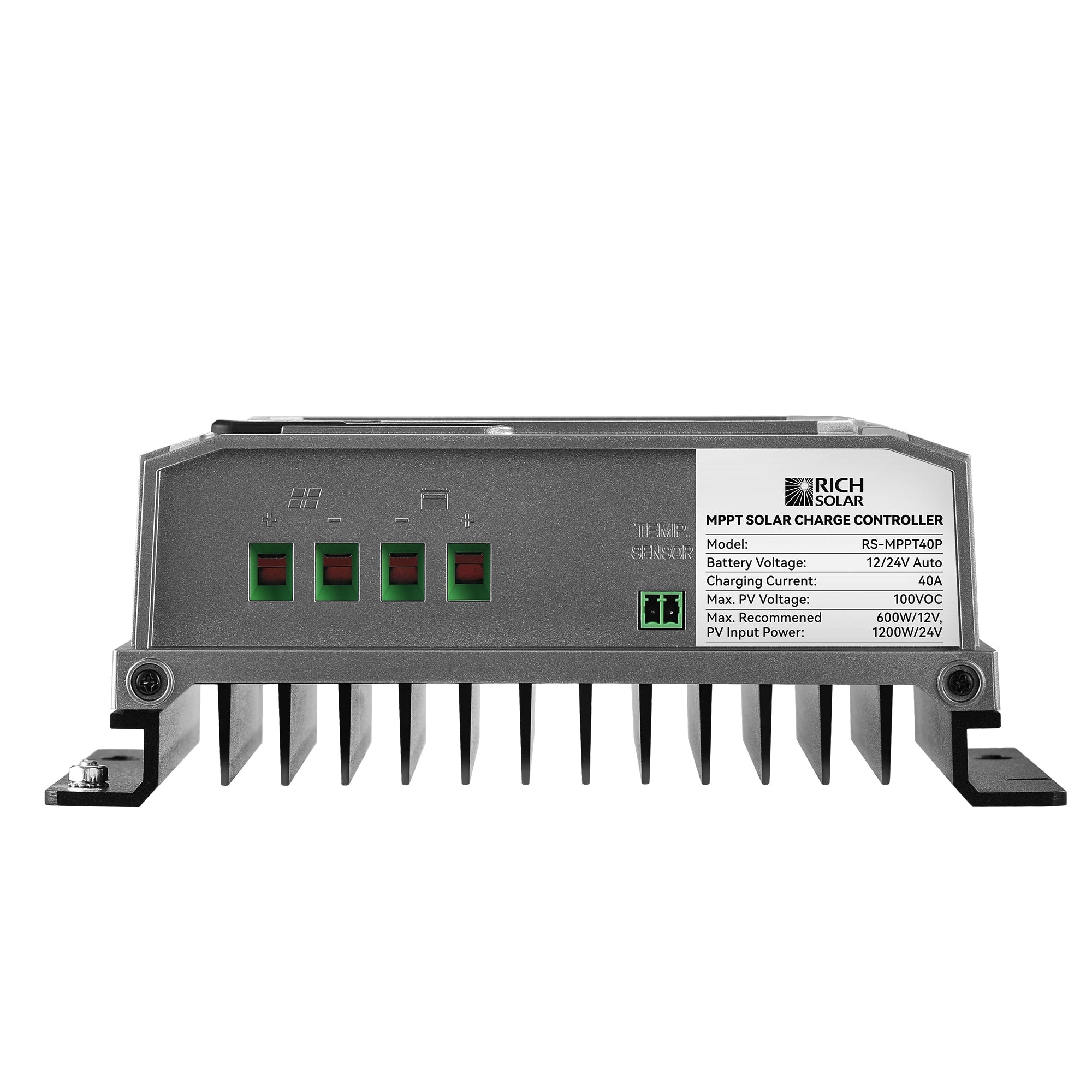

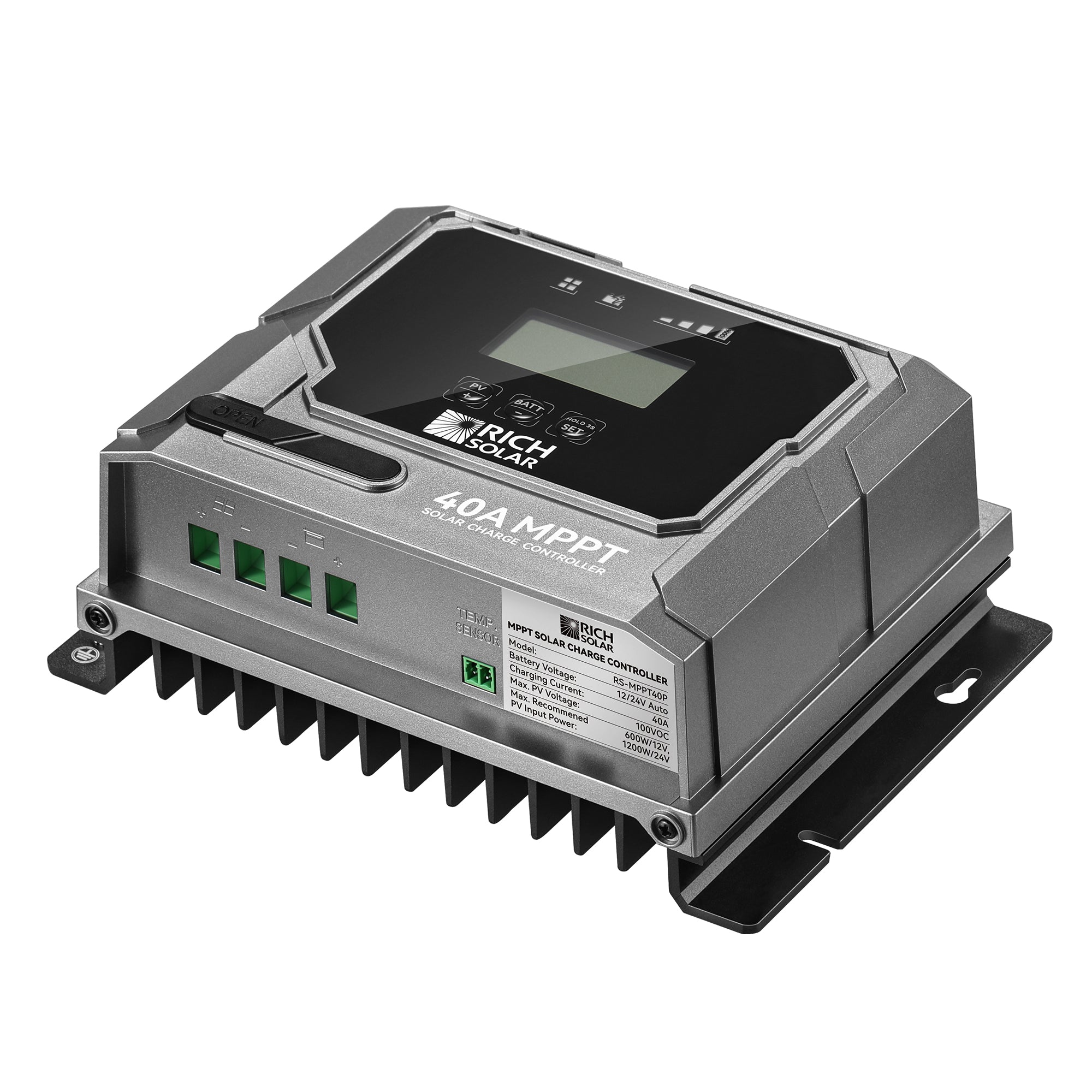

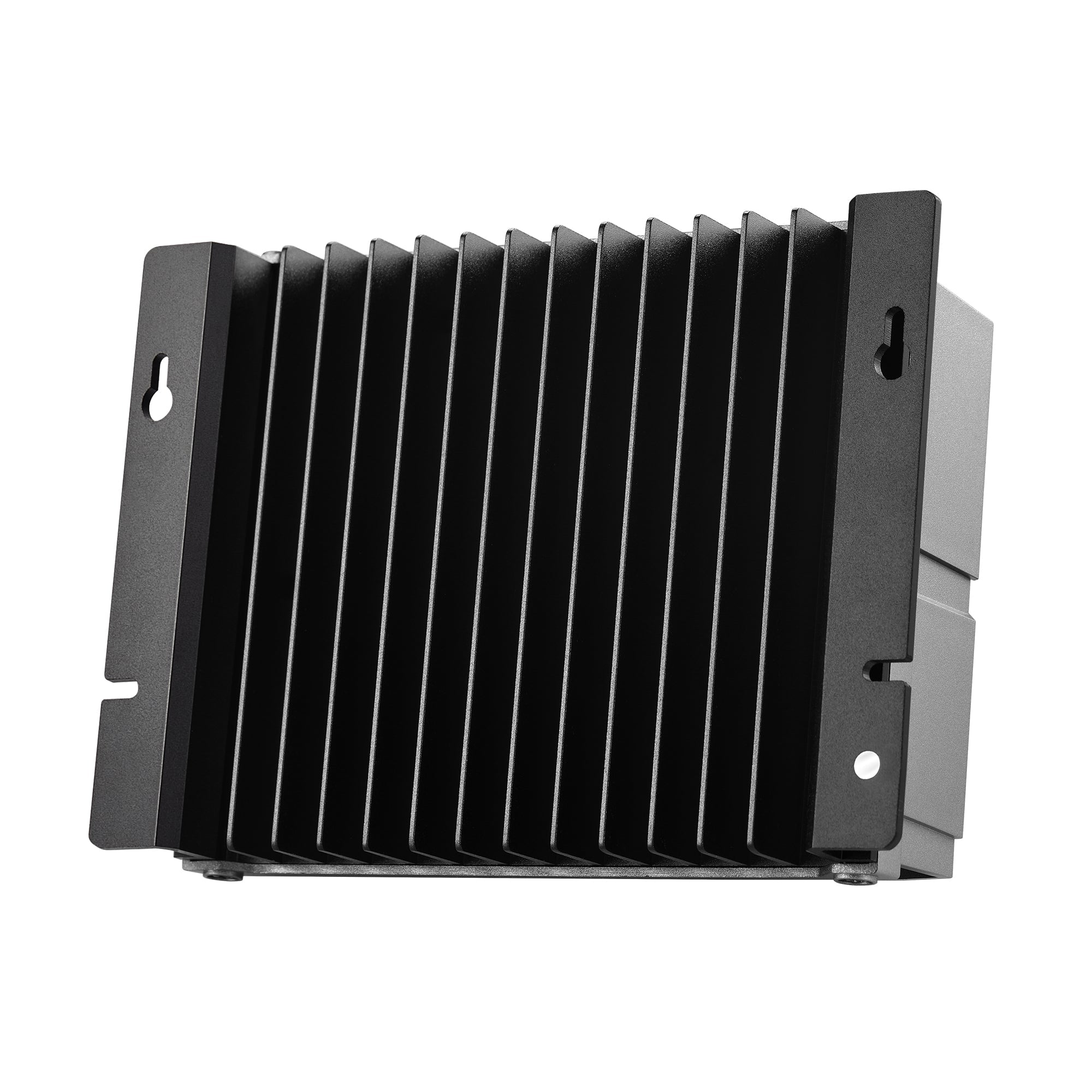

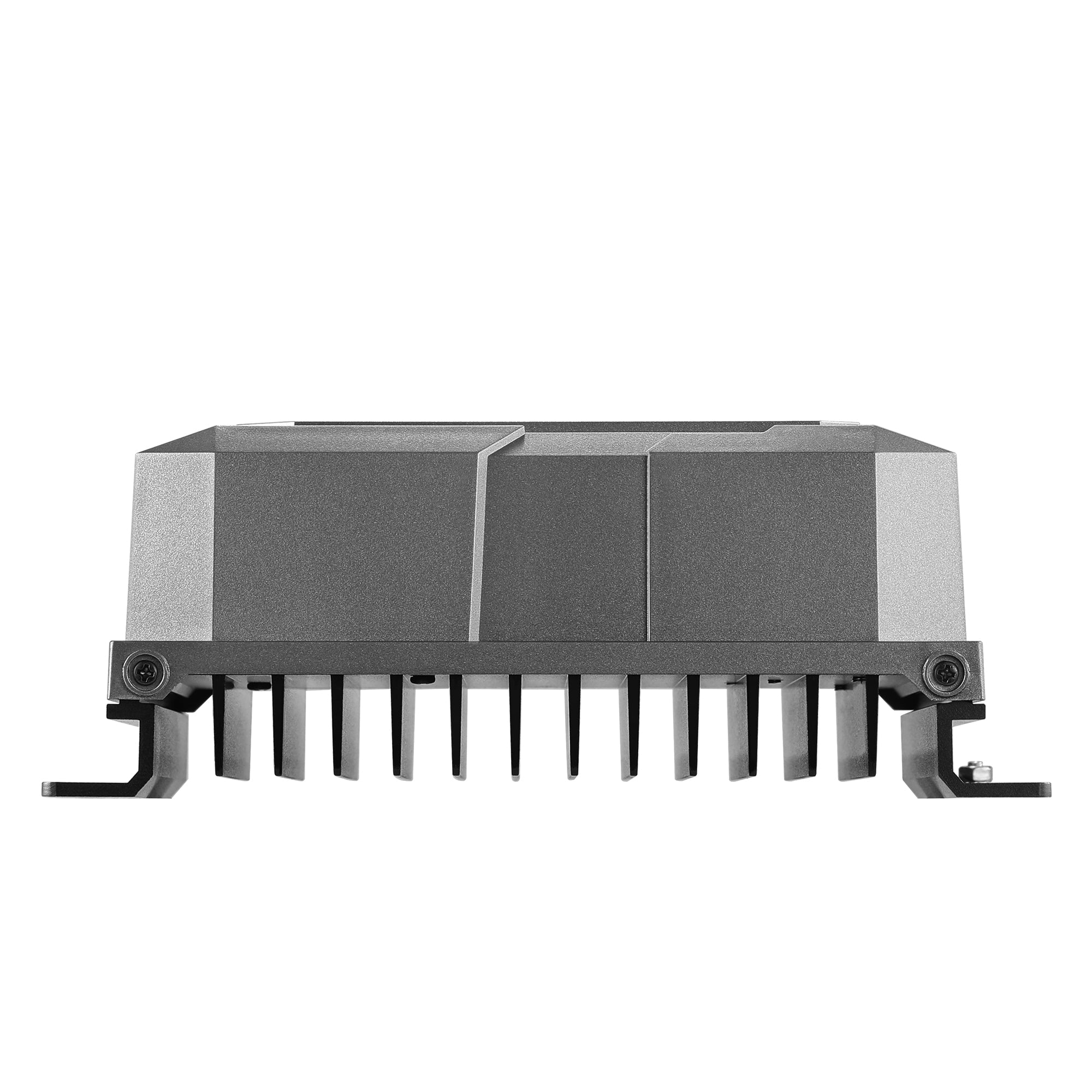

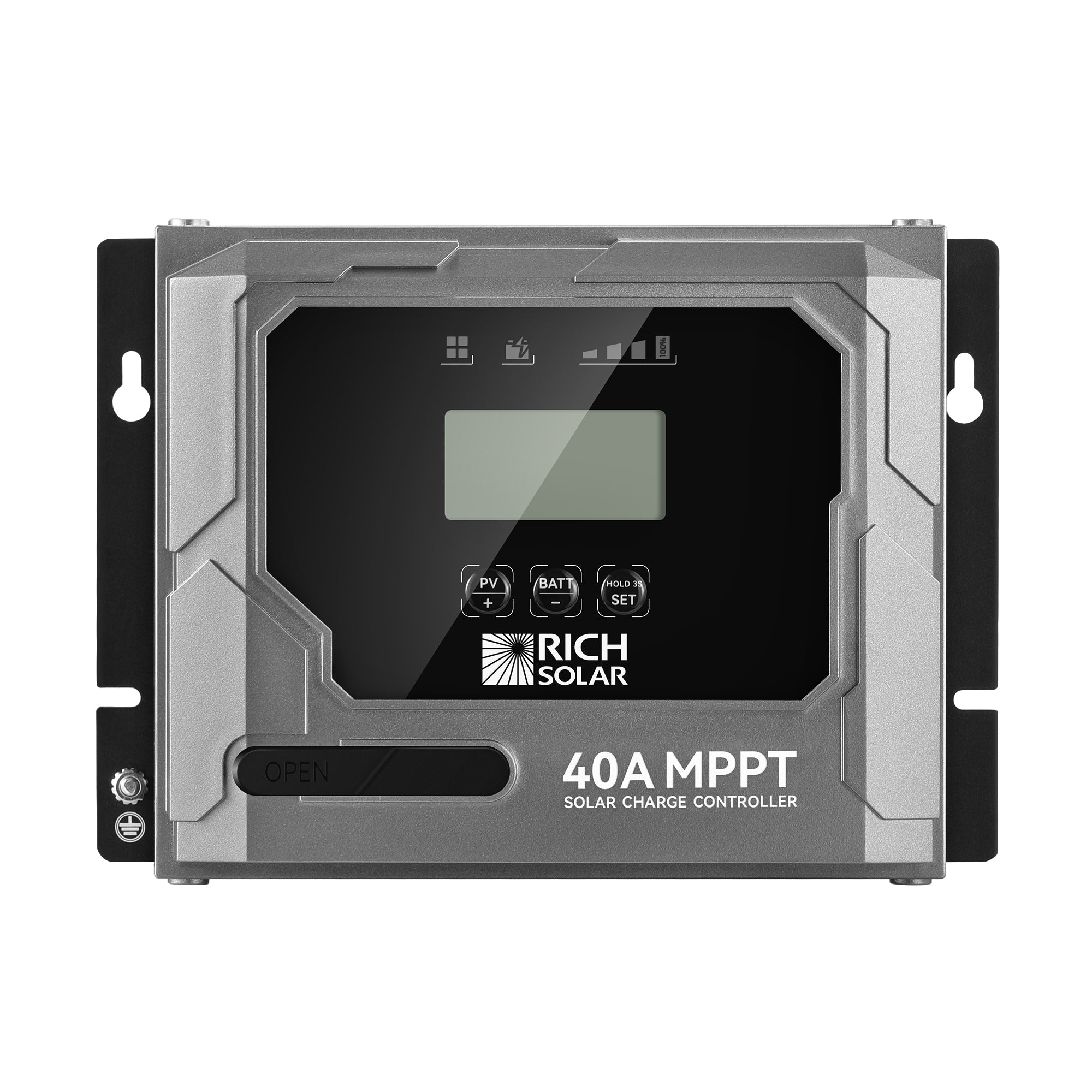

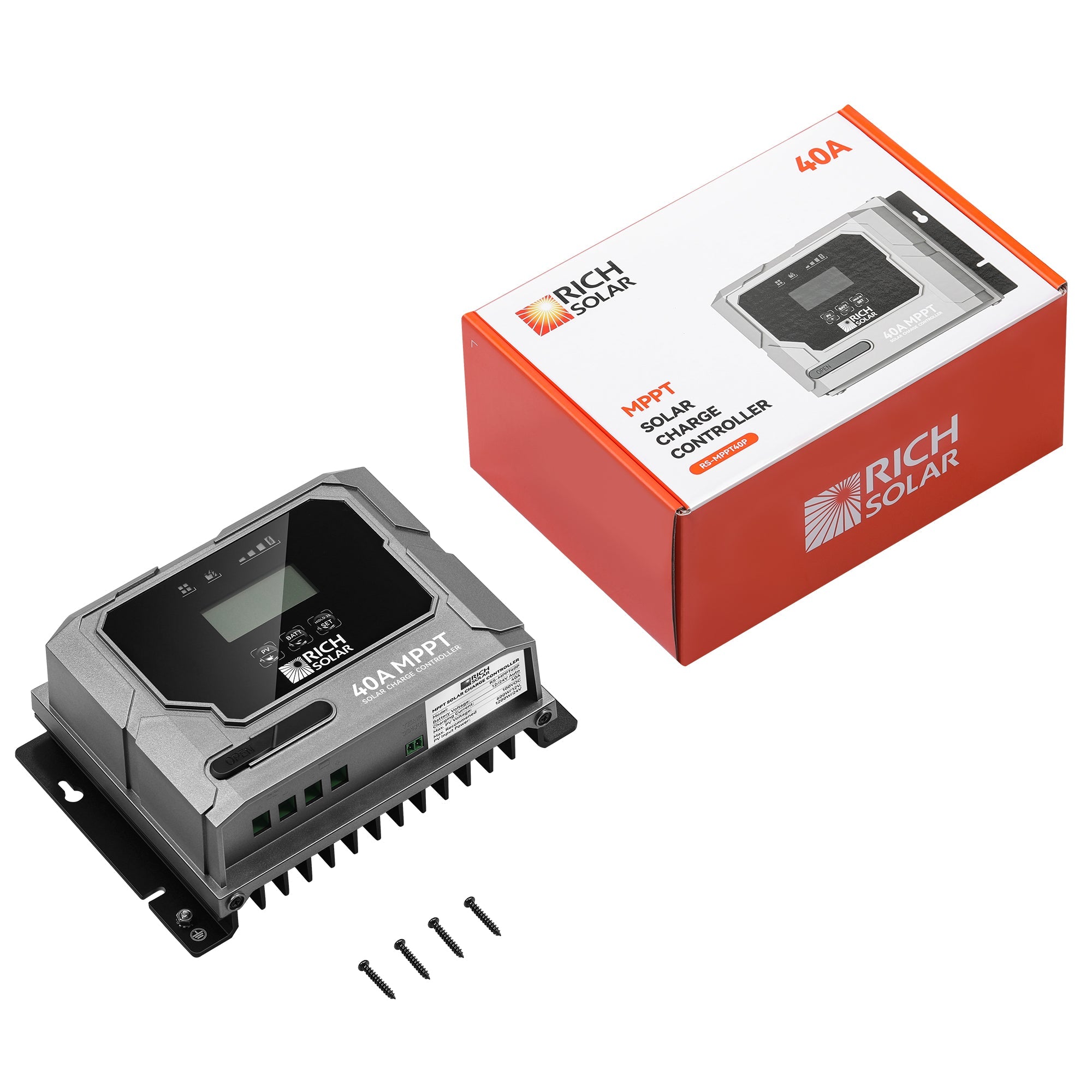

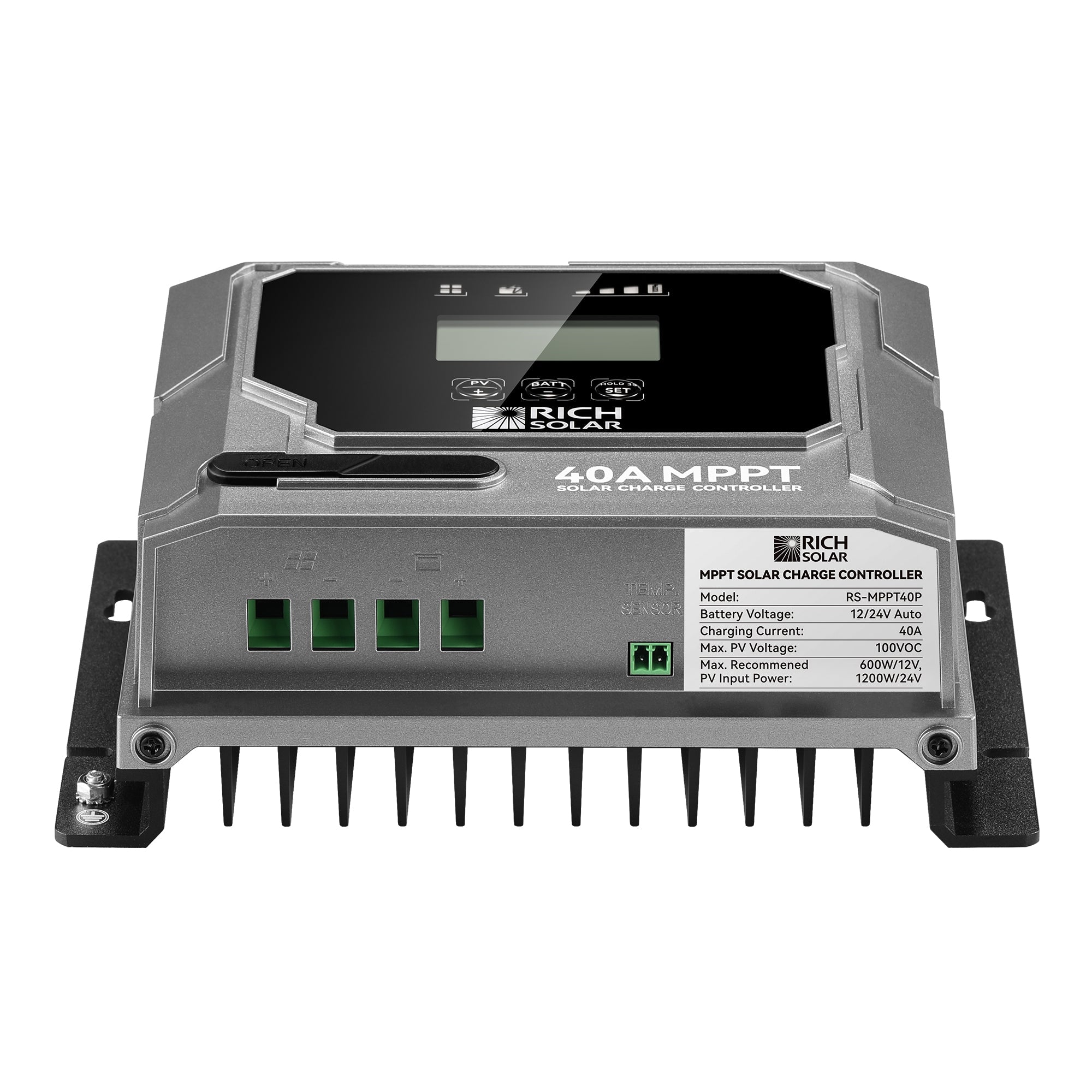

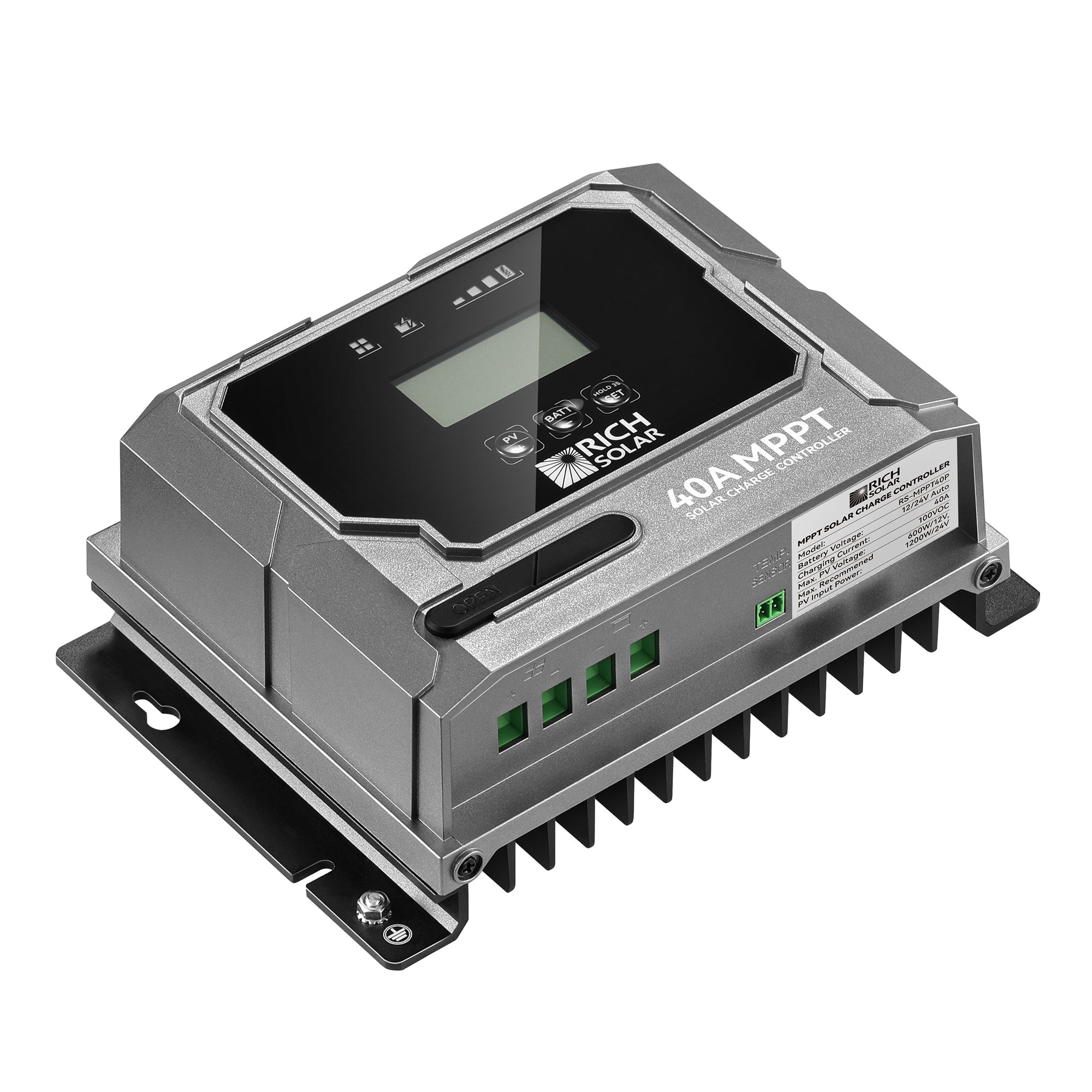

BRAVO 40 — 40 Amp MPPT Solar Charge Controller

The BRAVO 40 Charge Controller from RICH SOLAR features an MPPT tracking efficiency of over 99.5% and charge conversion efficiency as high as 98%.

Features

• Efficient Solar Charging
• Over 99.5% MPPT Tracking Efficiency: Maximizes solar energy harvest under changing sunlight conditions.
• Up to 98% Charge Conversion Efficiency: Converts more solar power into usable battery charging energy.
• Supports up to 1200W PV Input: Handles larger solar arrays for faster battery charging.
• Flexible System Compatibility
• 12V/24V Auto Detection: Automatically identifies the system voltage during installation.
• 100V Max PV Open Circuit Voltage: Supports flexible solar panel configurations and system expansion.
• Supports Multiple Battery Types: Compatible with Crystal, GEL, AGM, Flooded (WET), Calcium, LCO, LFP, and LTO batteries.
• Smart Monitoring
• Built-In Bluetooth Monitoring: Monitor real-time charging status on your smartphone via the Tuya Bluetooth Module.
• LCD Display: View solar input, battery status, and charging information.
• Optional Accessories: Compatible with an optional remote meter and battery temperature sensor.
• Comprehensive Reliability
• Certified to UL 1741, FCC, CE, and RoHS standards.
• Advanced Electronic Protection: Protects against over-voltage, reverse discharge, and circuit faults.
• Conformal Coated Circuit Board: Improves long-term durability in demanding environments.
• System Nominal Voltage: 12/24V Auto
• Max. PV Open Circuit Voltage: 100V DC
• Charging Technology: MPPT
• Max PV Charging Current: 40A

Specifications

Questions about this product, shipping, or warranty? Contact Tricky Lizard.

SKU: RS-MPPT40P
