Features Efficient Solar Charging Over 99.5% MPPT Tracking Efficiency: Maximizes solar energy harvest in changing sunlight conditions. Up to 98% Conversion Efficiency: Converts more solar power into usable battery charging energy. Supports
Features
- Efficient Solar Charging
- Over 99.5% MPPT Tracking Efficiency: Maximizes solar energy harvest in changing sunlight conditions.
- Up to 98% Conversion Efficiency: Converts more solar power into usable battery charging energy.
- Supports up to 1800W PV Input: Handles larger solar arrays for faster battery charging.
- Flexible System Compatibility
- 12V/24V Auto Detection: Automatically identifies the system voltage during installation.
- Supports Multiple Battery Types: Compatible with LiFePO₄, LTO, LCO, AGM, GEL, Flooded, Crystal, and Calcium batteries.
- 100V Max PV Input: Supports flexible solar panel configurations and system expansion.
- Smart Monitoring
- Built-In Bluetooth Monitoring: Monitor real-time charging status on your smartphone via the Tuya Bluetooth Module.

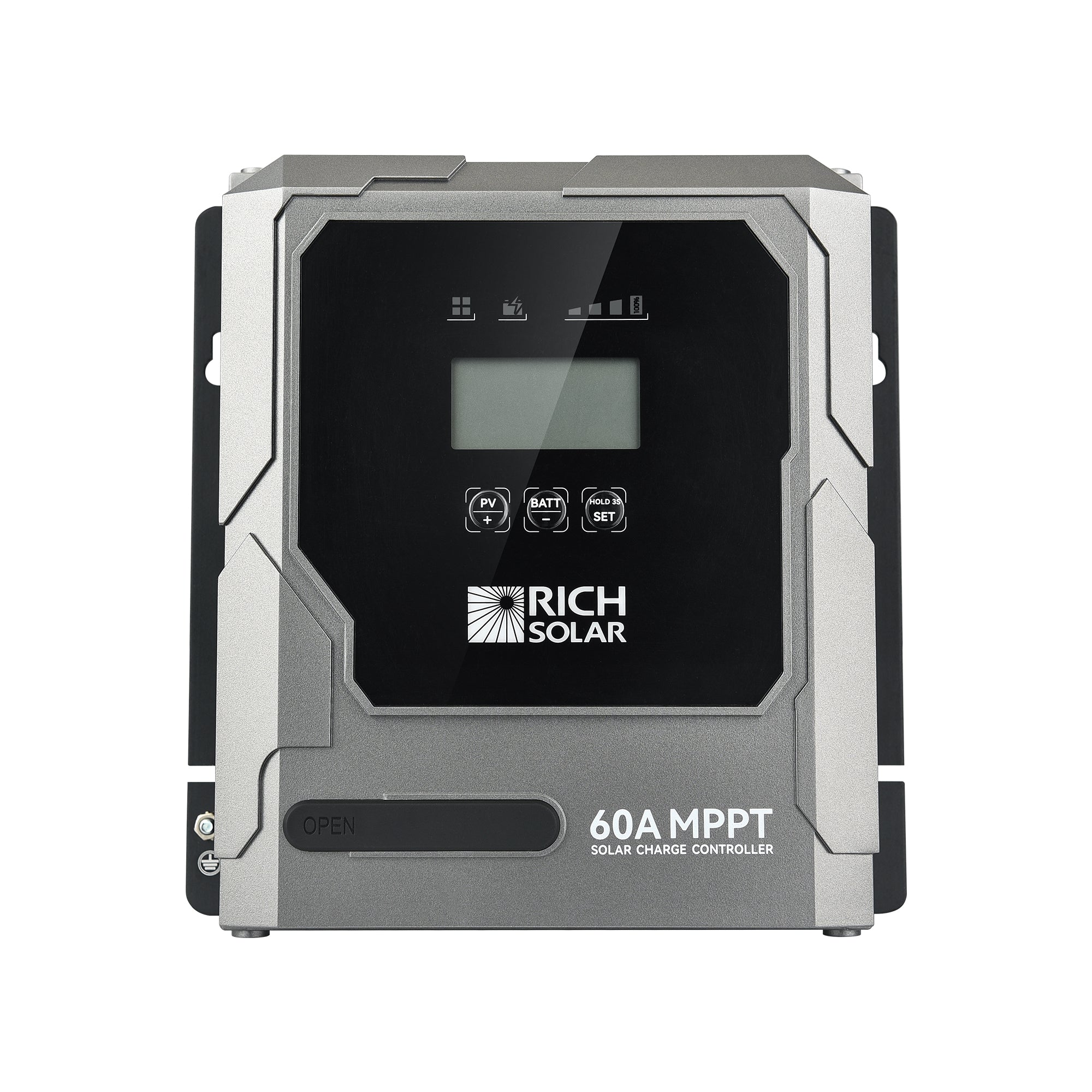

- LCD Display: View solar input, battery status, and charging information.
- Optional Accessories: Compatible with an optional remote meter and battery temperature sensor.
- Comprehensive Reliability
- Advanced Electronic Protection: Protects against over-voltage, reverse discharge, and circuit faults.
- Common Negative Ground Design: Supports reliable system integration.
- Conformal Coated Circuit Board: Improves long-term durability in demanding environments.
- System Nominal Voltage: 12/24V Auto
- Max PV Charging Current: 60A
- Max. Recommended PV Input Power: 900 Watt (12V) / 1800 Watt (24V)
- Max PV Open Circuit Voltage: 100V DC
Specifications
| System Nominal Voltage |
12/24V Auto |
| Max PV Charging Current |
60A |
| Max. Recommended PV Input Power |
900 Watt (12V) / 1800 Watt (24V) |
| Max PV Open Circuit Voltage |
100V DC |
| MPPT Tracking Efficiency |
>99.5% |
| Charge Conversion Efficiency |
≤98% |
| Battery Type Preset |
Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO |
| IP Grade |
IP43 for Inside PCBA, IP22 for Connection Area |
| Housing Case Color |
Black / Grey |
| Dimensions (L × W × H) |
201 × 195 × 85 mm (7.9 × 7.7 × 3.3 in) |
Questions about this product, shipping, or warranty? Contact Tricky Lizard.
SKU: RS-MPPT60P
