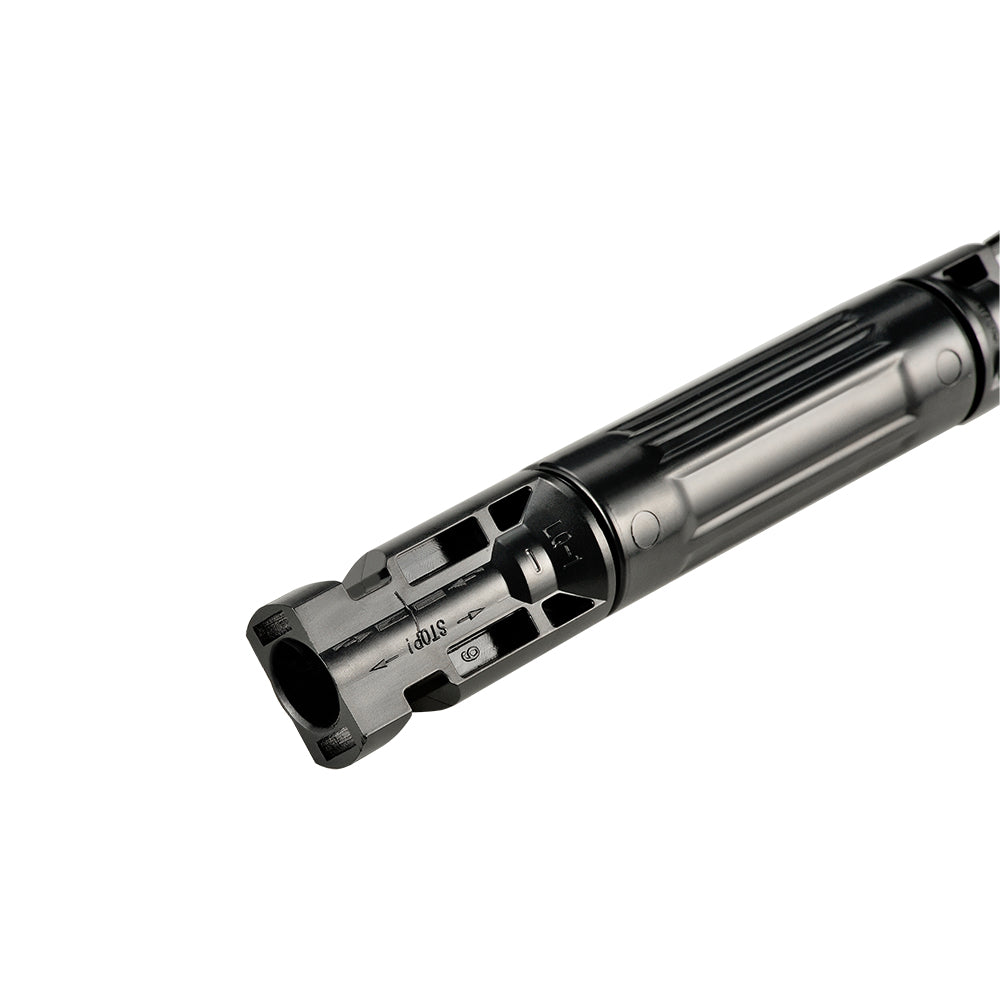

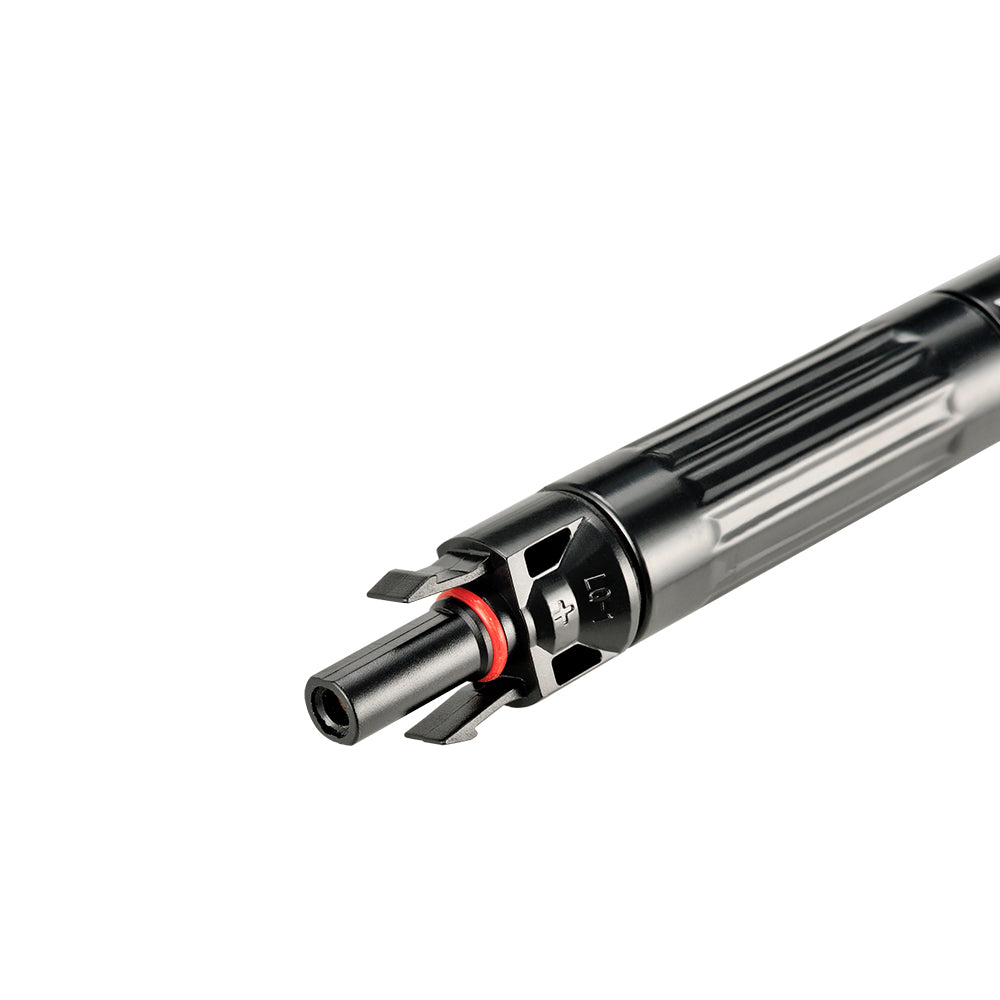

Inline Fuse Holder
SKU: RS-SC10F
$12.79 $12.79 $15.99
Sale 20.01% $3.20 (20.01%)
Shipping calculated at checkout.
Amperage 10A
In stock
Description

Features Single-Circuit Protection: Protects solar circuits from overcurrent and short circuits. Replaceable Fuse: Available with 10A, 15A, 20A, or 30A replaceable fuse options. Waterproof Fuse Holder: Sealed design provides reliable outdoo

Features

  • Single-Circuit Protection: Protects solar circuits from overcurrent and short circuits.

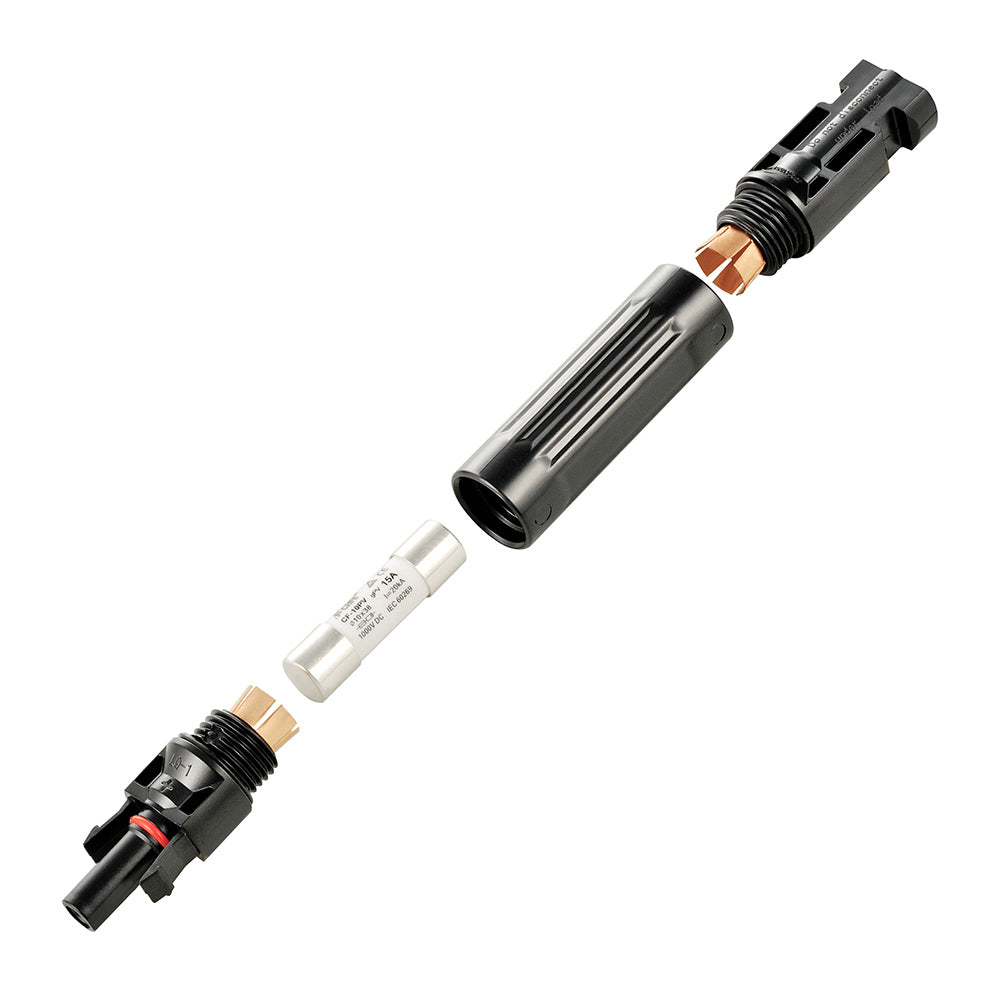

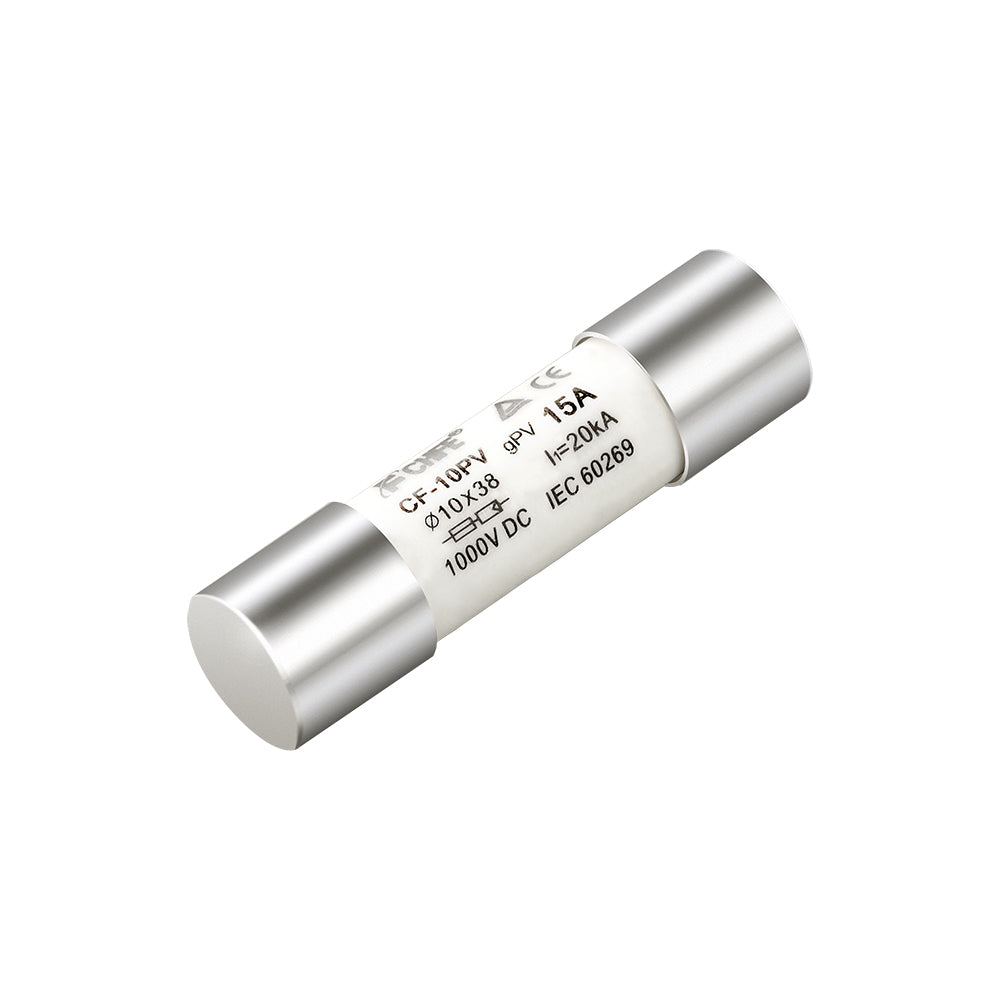

  • Replaceable Fuse: Available with 10A, 15A, 20A, or 30A replaceable fuse options.
  • Waterproof Fuse Holder: Sealed design provides reliable outdoor performance.
  • Solar Connector Ready: Standard solar connectors enable direct connection to solar panels and extension cables.
  • Plug-and-Play Installation: Installs quickly without cutting or splicing wires.
  • Secure Locking Connectors: Auto-locking connectors provide a reliable connection.

Specifications

Rated Current 10A, 15A, 20A, or 30A
Rated Voltage 1000V DC
Protection Rating IP2X, IP67
Flame Class UL94 V-0
Safety Class II
Overvoltage Category CAT III
Connector Type Solar Connector (MC4 Compatible)
Contact Material Silver-Plated Copper
Insulation Material PPO
Contact Resistance 1mΩ
Insertion Force ≤50N
Withdrawal Force ≥50N
Test Voltage 6000V AC (50Hz, 1 min)
Operating Temperature -40°F to 257°F
Package Dimensions 3 × 8 in
Gross Weight 1 lb
