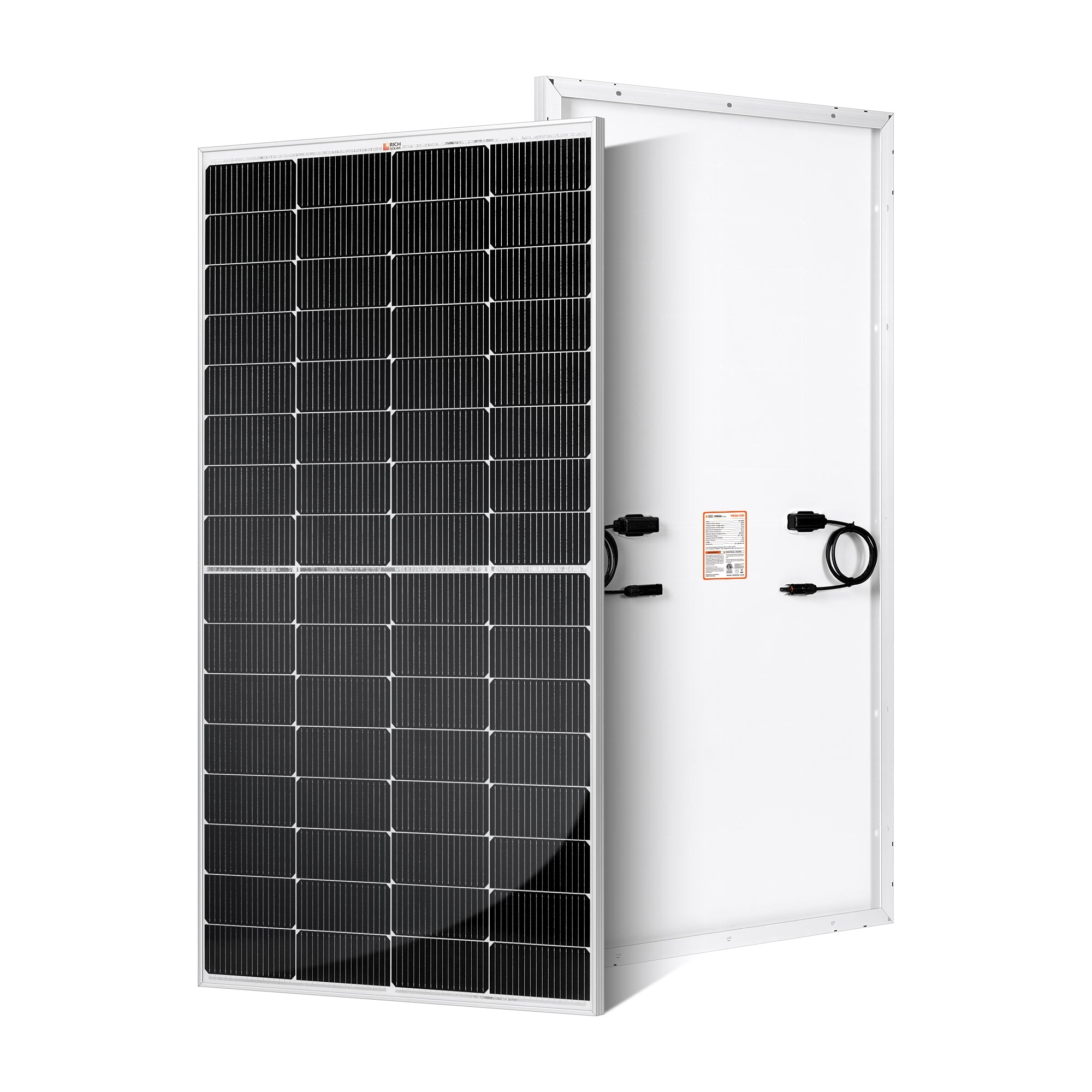

MEGA 220 — 220 Watt Solar Panel

The MEGA 220 Solar Panel is built with split energy technology and durable frames to withstand the harshest environments while producing 220W of solar energy.

Features

• 12V off-grid solar panel.
• 16-busb monocrystalline cells with up to 20.7% efficiency.
• 64-cell configuration delivers a reliable 220W output.
• 3.2 mm AR-coated tempered glass maximizes sunlight capture and durability.
• Power tolerance 0 to +5W ensures at least the rated output.
• Excellent low-light performance on cloudy days and at dawn/dusk.
• PID-resistant and 100% EL-inspected to help prevent microcracks.
• Tested for UV exposure, thermal cycling, humidity freeze, and more.
• Rated for 5400 Pa snow loads and 2400 Pa wind loads.
• Certified to UL 61730, IEC 61215, and CSA C22.2 standards.
• Ideal for RVs, boats, cabins, sheds, and off-grid solar systems.

Installation

• Anodized aluminum frame – lightweight, strong, and corrosion-resistant
• 14 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
• MC4 connectors with 4 ft pre-attached cables for easy connection to other solar panels
• Compatible with both on-grid and off-grid inverters
• 25-year output warranty
• 10-year workmanship warranty

What's included

• Panel Leads (Pair): 12 AWG, 4 ft each
• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors
• Maximum Power(Pmax): 220W
• Maximum Power Voltage(Vmp): 18.3V
• Maximum Power Current(Imp): 12.0A
• Open Circuit Voltage(Voc): 22.1V
• Short Circuit Current(Isc): 12.5A
• Maximum System Voltage(Vmax): 1500 VDC
• Temperature Range: -40~ +185℉
• Weight: 23.7lb (10.7kg)
• Dimensions: 55.1x30.0x1.2in

Specifications

Questions about this product, shipping, or warranty? Contact Tricky Lizard.

SKU: RS-M220
