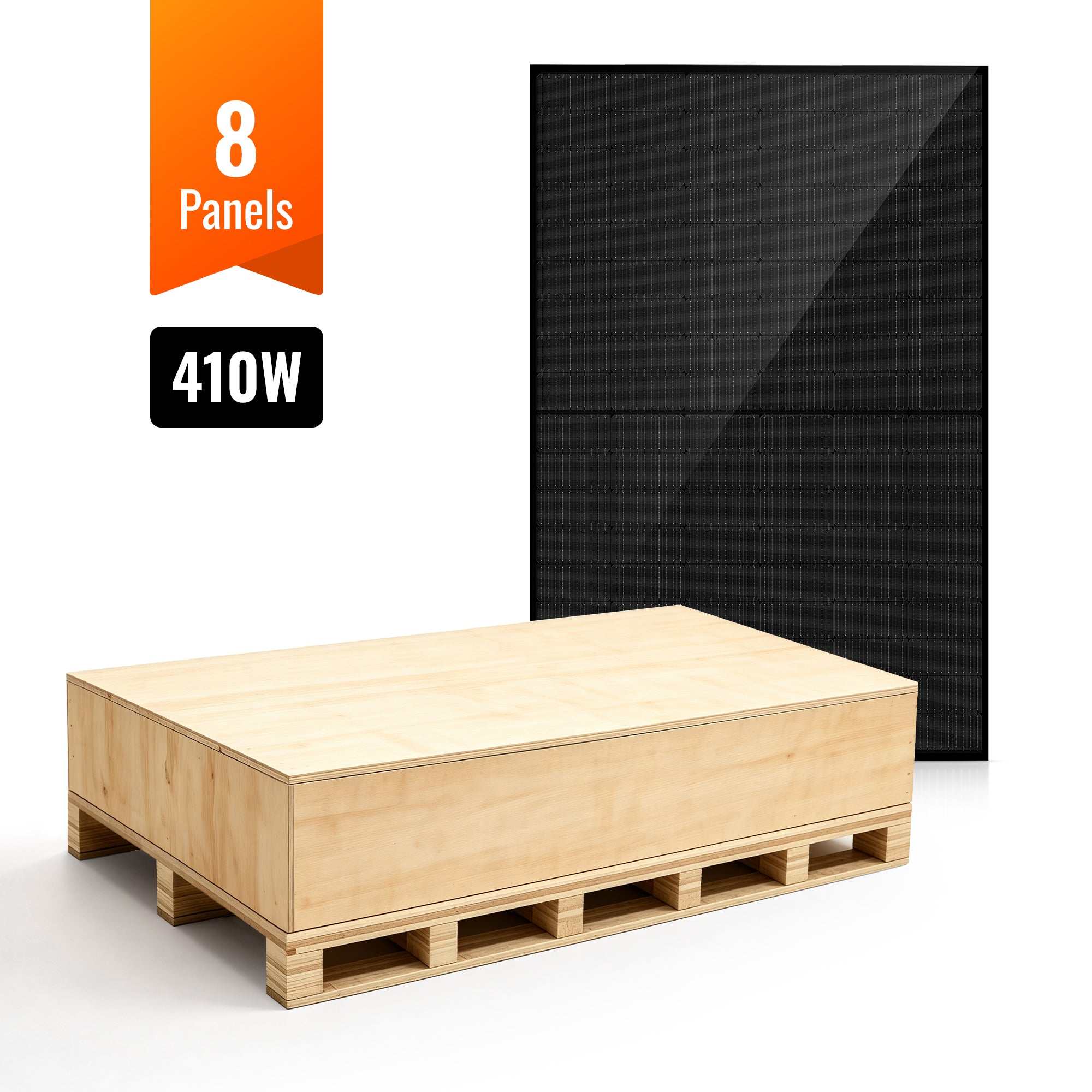

MEGA 410 - 8 (410 watt solar panels)

The MEGA 410 Solar Panel combines high efficiency with robust construction, making it ideal for large-scale solar power systems.

Features

• 24V off-grid solar panel.
• 10-busbar monocrystalline cells with up to 23.2% efficiency.
• 108-cell configuration delivers a reliable 410W output.
• 3.2 mm AR-coated tempered glass maximizes sunlight capture and durability.
• Power tolerance 0 to +5W ensures at least the rated output.
• Excellent low-light performance on cloudy days and at dawn/dusk.
• PID-resistant and 100% EL-inspected to help prevent microcracks.
• Tested for UV exposure, thermal cycling, humidity freeze, and more.
• Rated for 5400 Pa snow loads and 2400 Pa wind loads.
• Certified to UL 61730, IEC 61215, and CSA C22.2 standards.
• Ideal for residential, agricultural, and commercial off-grid.

Installation

• Anodized aluminum frame – lightweight, strong, and corrosion-resistant
• 8 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
• MC4 connectors with 4 ft pre-attached cables for quick and easy installation
• Compatible with both on-grid and off-grid inverters
• 25-year limited power output warranty
• 10-year workmanship warranty

What's included

• Panel Leads (Pair): 12 AWG, 4 ft each
• IP68-rated waterproof junction box
• IP67-rated waterproof solar connectors
• Maximum Power(Pmax): 410W
• Maximum Power Voltage(Vmp): 31.3V
• Maximum Power Current(Imp): 13.1A
• Open Circuit Voltage(Voc): 37.5V
• Short Circuit Current(Isc): 13.8A
• Maximum System Voltage(Vmax): 1500VDC
• Temperature Range: -40°F ~ 185°F
• Max Series Fuse Rating: 25A
• Weight: 45.2 lb
• Dimensions: 67.8 x 44.7 x 1.2 in

Specifications

Questions about this product, shipping, or warranty? Contact Tricky Lizard.

SKU: RS-M410-8
