The MEGA 50 Solar Panel is a compact and efficient solution for any off-grid home or vehicle. Start your solar journey with RICH SOLAR today.
Features
- 12V off-grid solar panel.
- 10-busbar monocrystalline cells with up to 23.2% efficiency.
- 3.2 mm AR-coated tempered glass for maximum durability and light transmission.
- 30-cell design delivers a reliable 50W output.
- 0 to +5W guaranteed positive power output.
- Excellent low-light performance on cloudy days and at dawn or dusk.
- Designed to withstand salt, ammonia, sand, high temperatures, and humidity.
- Premium quality with 100% EL inspection and PID resistance.
- Certified for 2400 Pa wind loads and 5400 Pa snow loads.
- Certified to UL 61730, IEC 61215, and CSA C22.2 standards.
- Ideal for RVs, vans, truck campers, and marine systems.
Installation

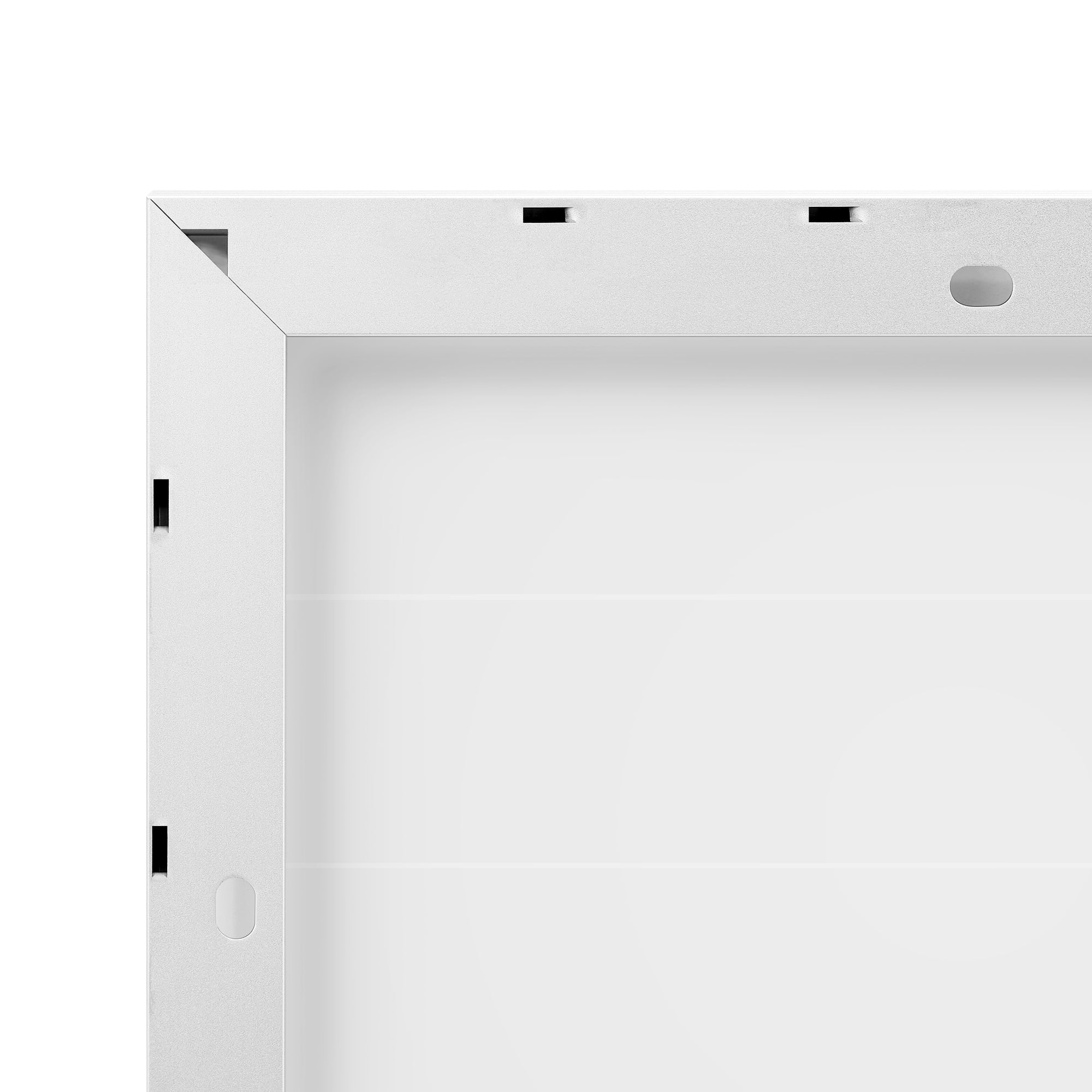

- Anodized aluminum frame – lightweight, strong, and corrosion-resistant
- 12 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation

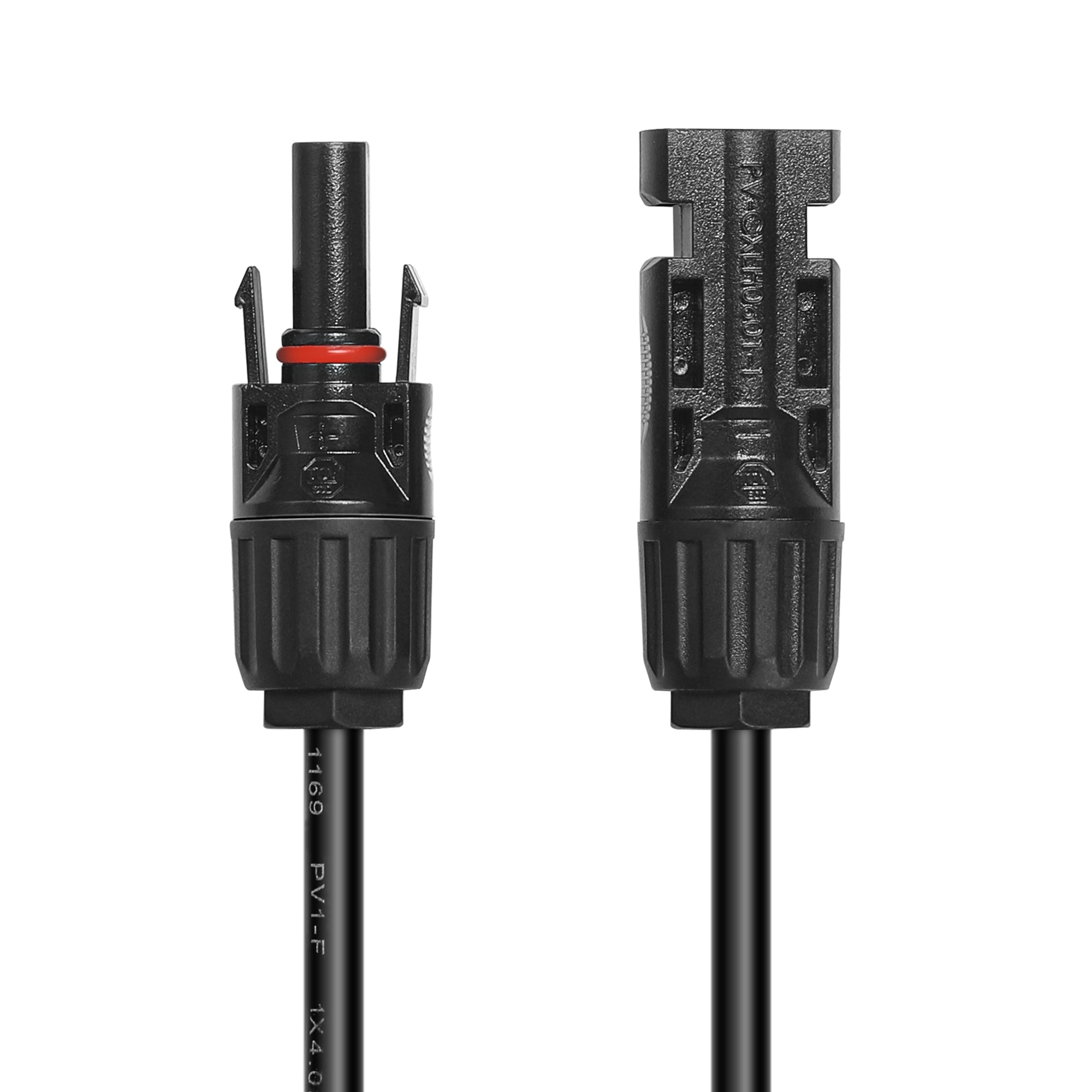

- MC4 connectors with 2 ft pre-attached cables for quick and easy installation
- Compatible with both on-grid and off-grid inverters
- 25-year output warranty
- 10-year workmanship warranty
What's included
- Panel Leads (Pair): 12 AWG, 2 ft each

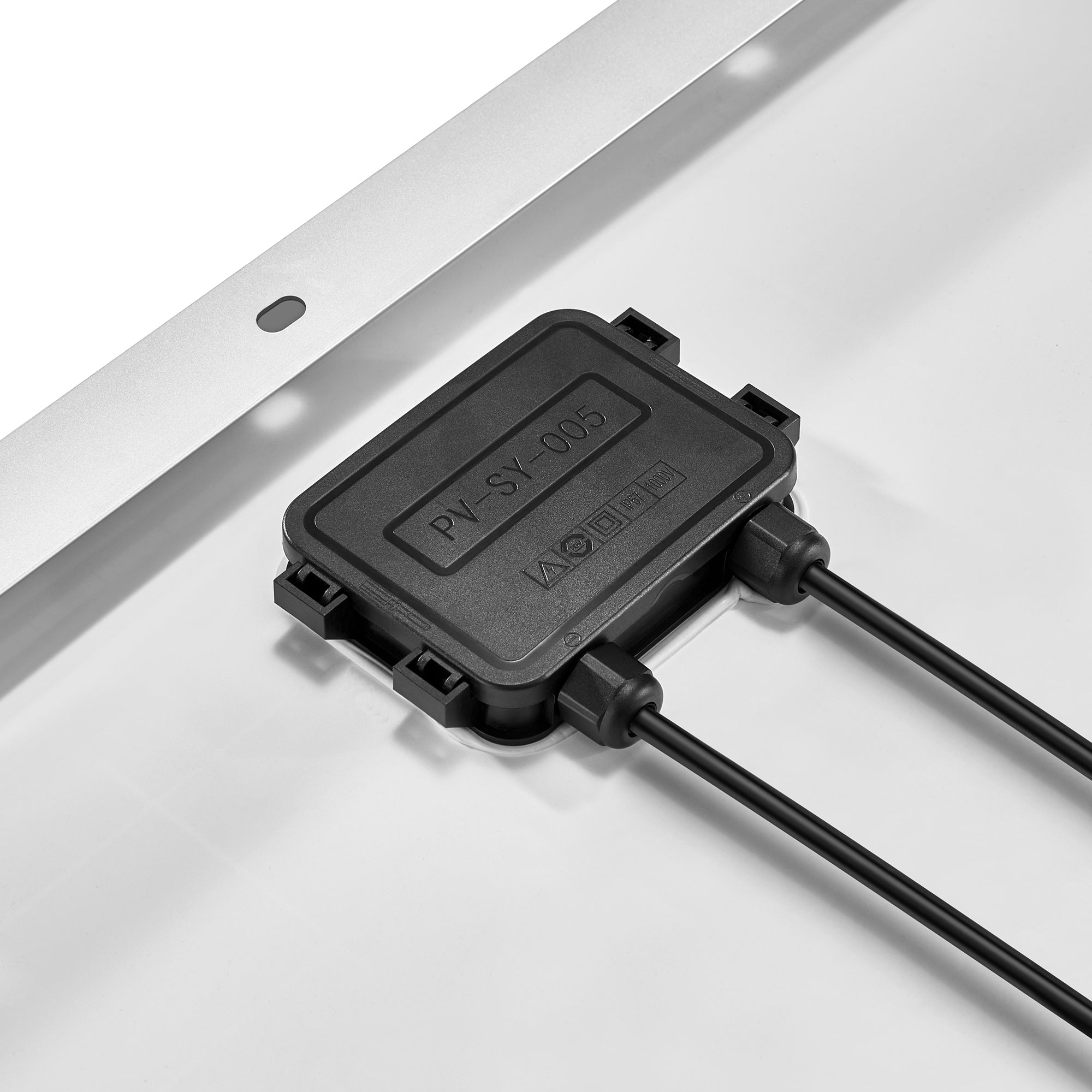

- IP67-rated waterproof junction box
- IP67-rated waterproof solar connectors
- Maximum Power(Pmax): 50W
- Maximum Power Voltage(Vmp): 17.6V
- Maximum Power Current(Imp): 2.84A
- Open Circuit Voltage(Voc): 20.8V
- Short Circuit Current(Isc): 3.13A
- Maximum System Voltage(Vmax): 1000VDC
- Maximum Series Fuse Rating: 10A
- Weight: 8.0 lb

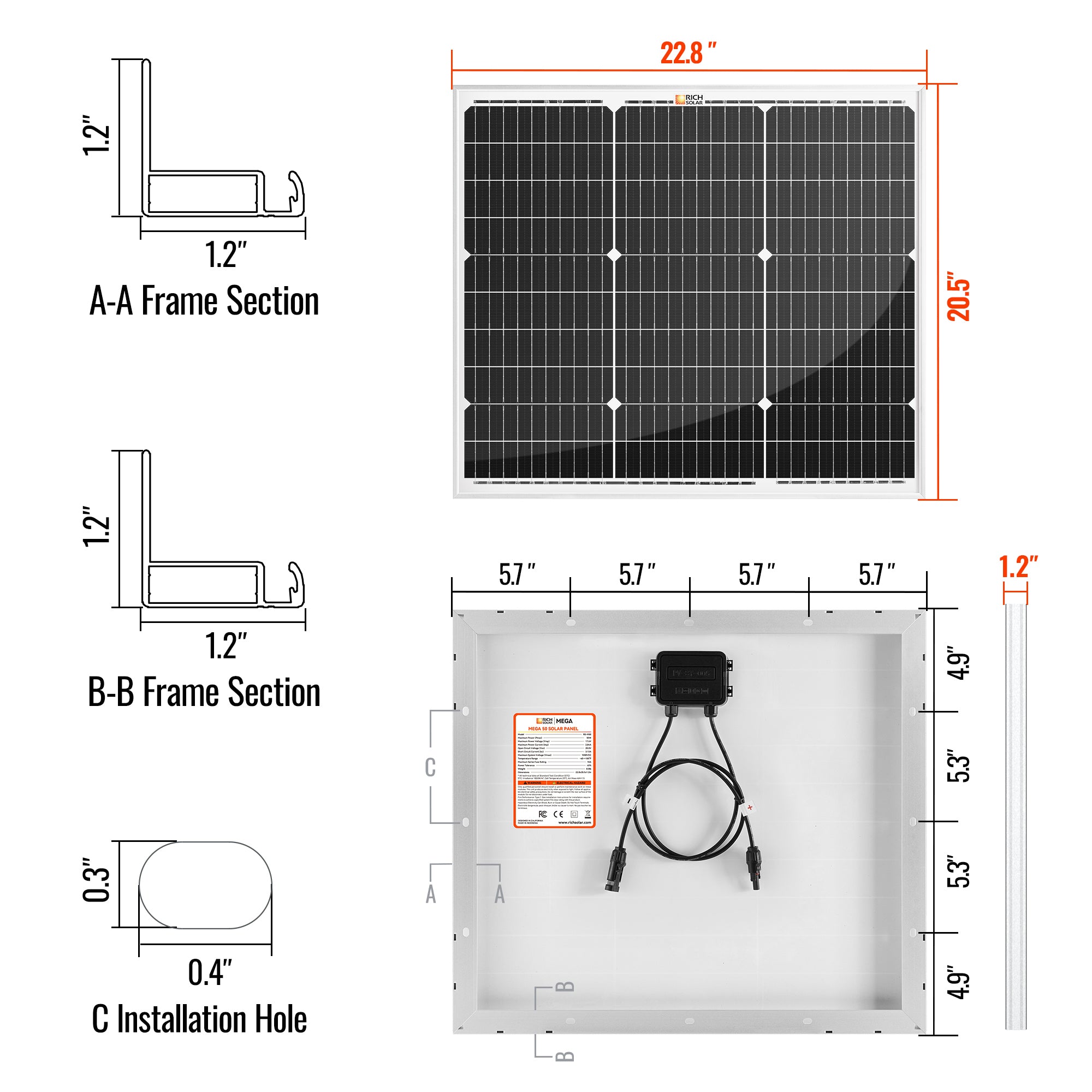

- Dimensions: 22.8x20.5x1.2 in
Specifications
| Maximum Power (PMAX) |
50W |
| Maximum Power Voltage (VMP) |
17.6V |
| Maximum Power Current (IMP) |
2.84A |
| Open Circuit Voltage (VOC) |
20.8V |
| Short Circuit Current (ISC) |
3.13A |
| Maximum System Voltage (VMAX) |
1000VDC |
| Dimensions |
22.8x20.5x1.2in |
| Weight |
8.0 lb |
Questions about this product, shipping, or warranty? Contact Tricky Lizard.
SKU: RS-M50
