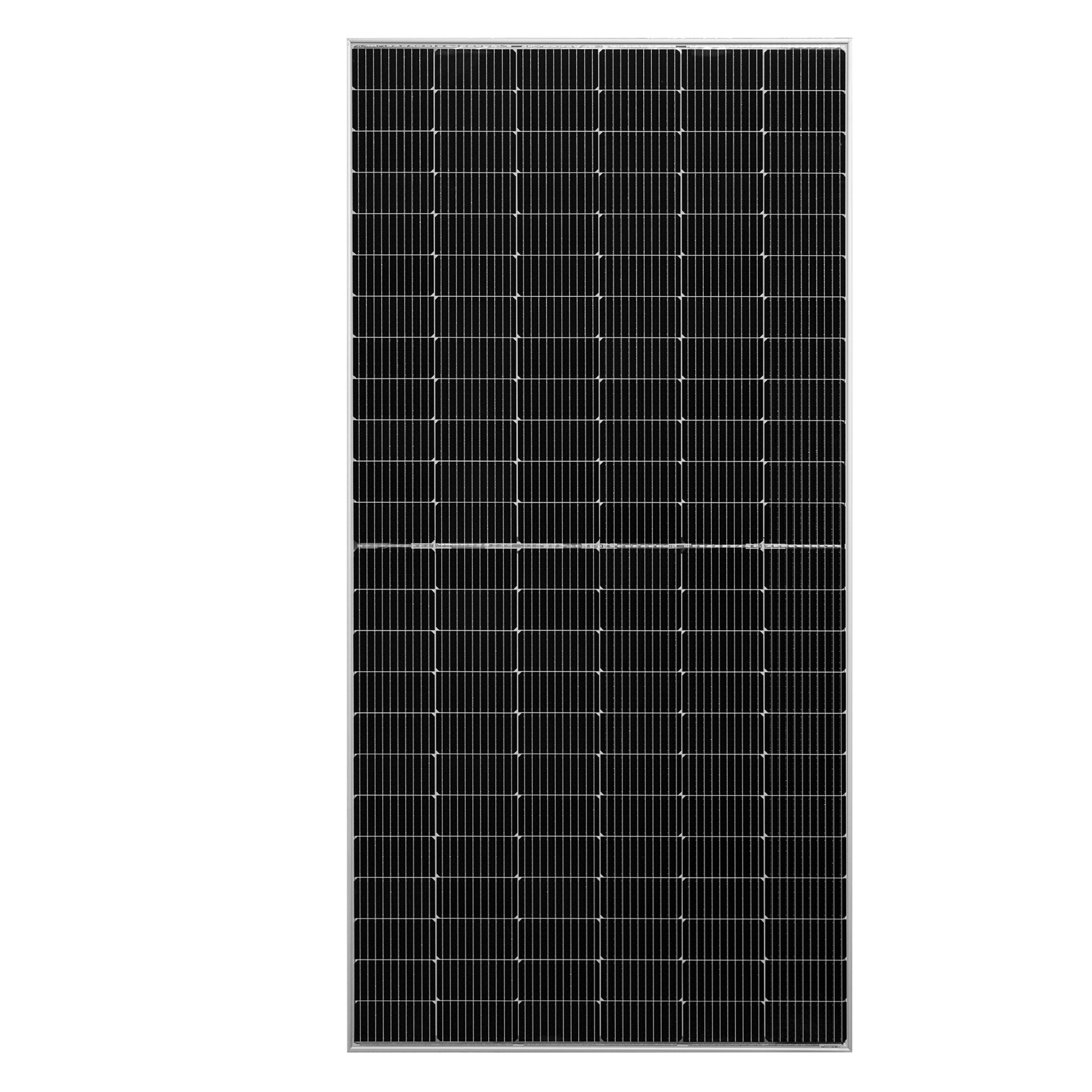

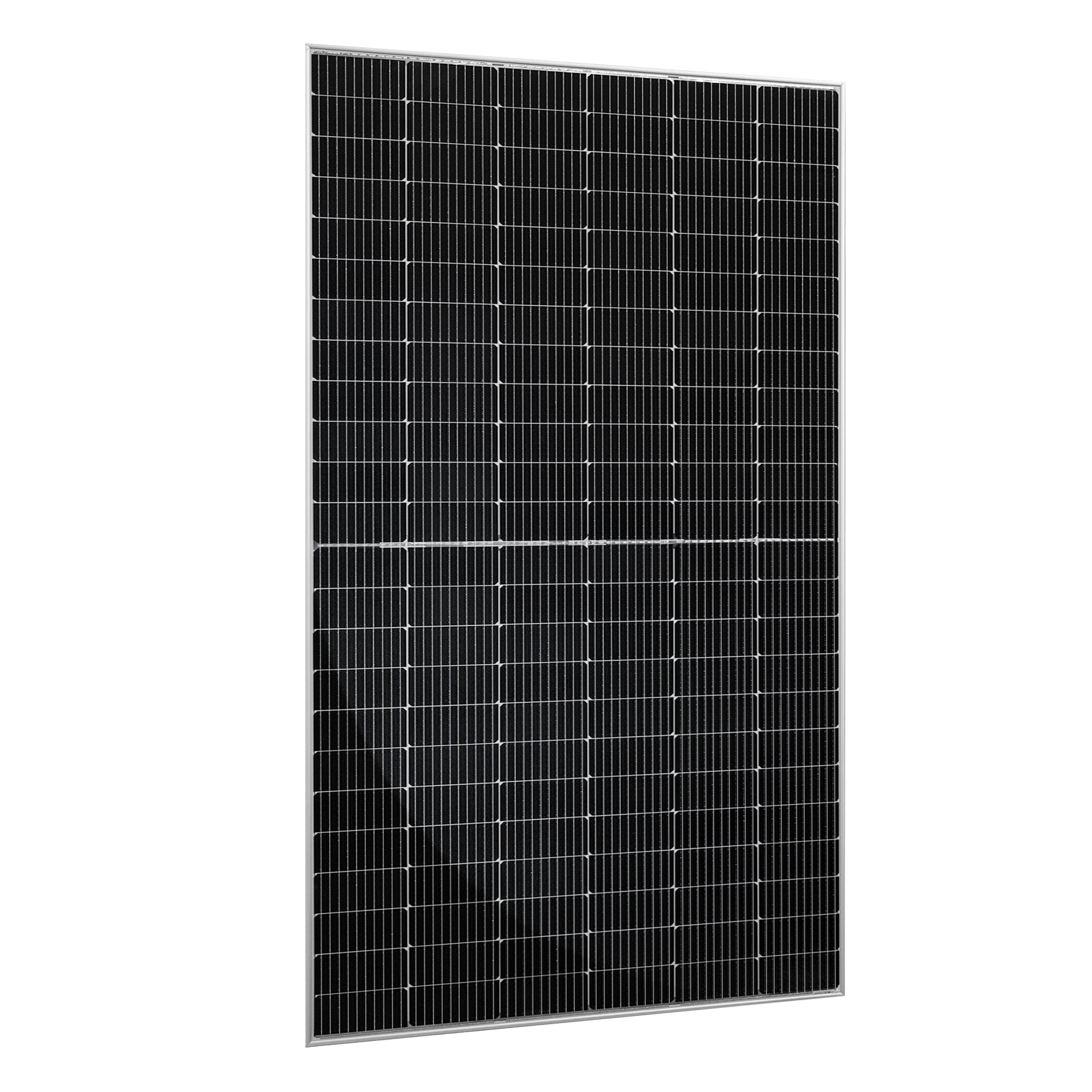

The MEGA 580 solar panel delivers 550W of high-efficiency power with TOPCON technology, durable aluminum frame, and AR-coated glass—ideal for off-grid residential, agricultural, or commercial systems with reliable performance in all weather
Features
- 24V off-grid solar panel.
- 16-busbar N-Type TOPCon cells with up to 25.1% efficiency.
- Excellent IAM and low-light performance for reliable energy production.

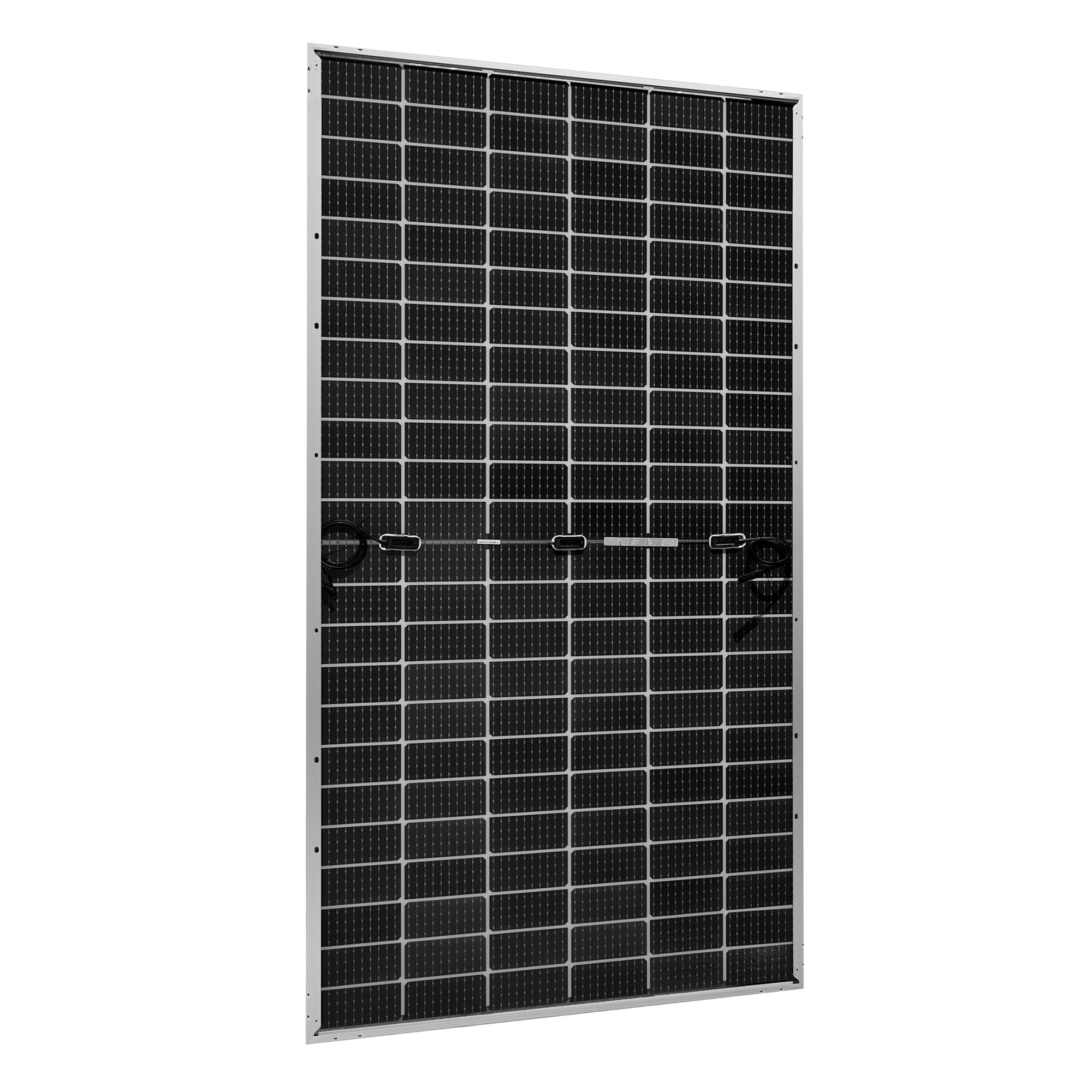

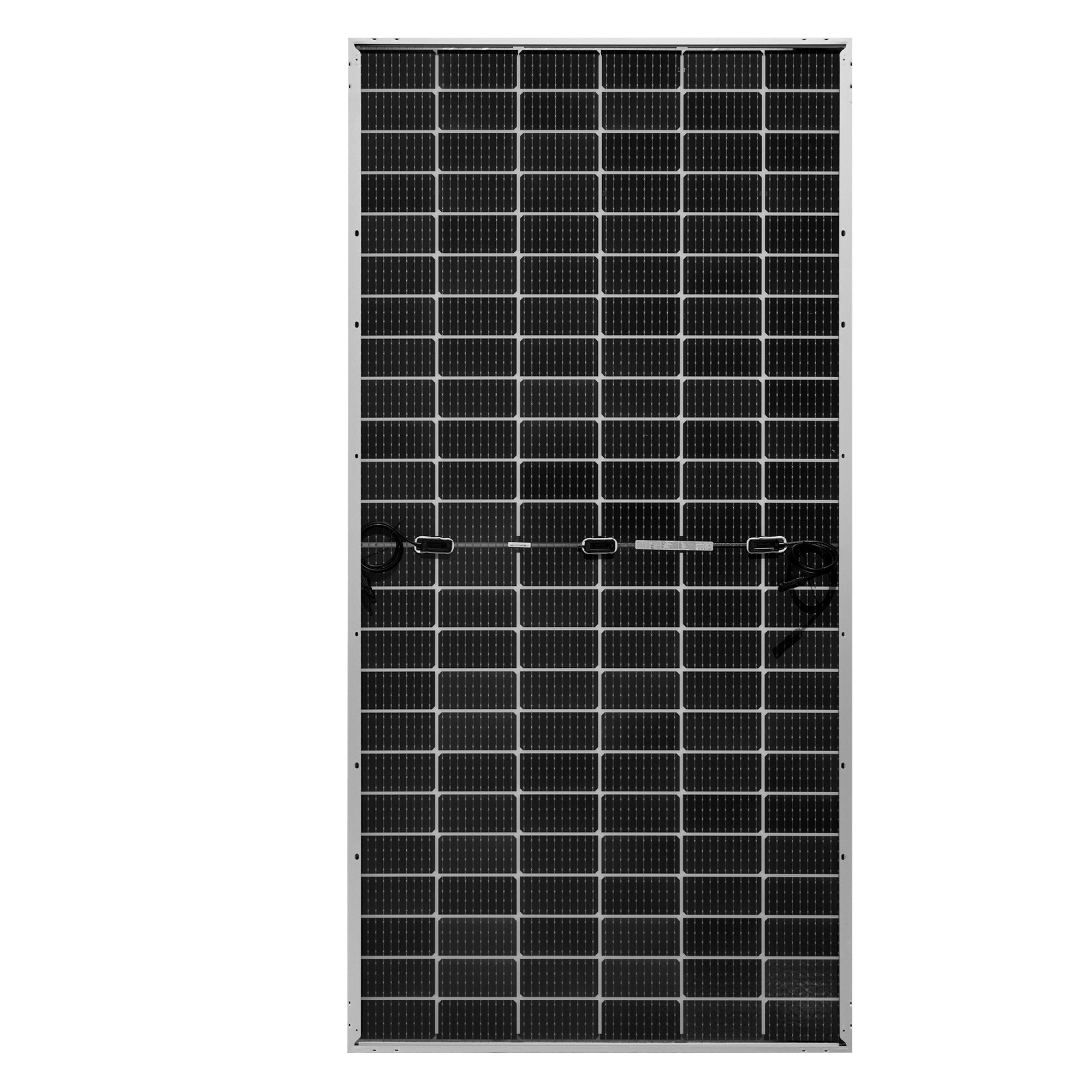

- Bifacial design delivers up to 25% additional rear-side power gain, depending on surface albedo.
- 144-cell configuration delivers a reliable 580W output.
- 2.0 mm front and rear tempered glass maximizes durability and bifacial performance.
- Power tolerance 0 to +5W ensures at least the rated output.
- Excellent low-light performance on cloudy days and at dawn/dusk.
- PID-resistant and 100% EL-inspected to help prevent microcracks.
- Rated for 5400 Pa snow loads and 2400 Pa wind loads.
- Certified to UL 61730, IEC 61215, and CSA C22.2 standards.
- Ideal for residential, agricultural, and commercial applications to reduce electricity costs.
Installation
- Anodized aluminum frame – lightweight, strong, and corrosion-resistant
- 8 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
- MC4 connectors with 4 ft pre-attached cables for quick and easy installation
- Compatible with both on-grid and off-grid inverters
- 25-year output warranty
- 10-year workmanship warranty
What's included
- Panel Leads (Pair): 12 AWG, 4 ft each
- IP68-rated waterproof junction box
- IP67-rated waterproof solar connectors
- Maximum Power(PMAX): 580 W
- Maximum Power Voltage(VMP): 42.7 V
- Maximum Power Current(IMP): 13.6 A
- Open Circuit Voltage(VOC): 51.4 V
- Short Circuit Current(ISC): 14.3 A
- Maximum System Voltage: 1500 VDC
- Module Efficiency η m (%): 22.5%
- Max Series Fuse Rating: 30 A
- Operating Temperature: -40°F to 185°F
- Glass: 2.0 + 2.0 mm Tempered Glass
- Weight: 68.8 lb
- Dimensions: 89.7 × 44.7 × 1.2 in
Specifications
| Maximum Power(PMAX) |
580 W |
| Maximum Power Voltage(VMP) |
42.7 V |
| Maximum Power Current(IMP) |
13.6 A |
| Open Circuit Voltage(VOC) |
51.4 V |
| Short Circuit Current(ISC) |
14.3 A |
| Maximum System Voltage |
1500 VDC |
| Module Efficiency η m (%) |
22.5% |
| Max Series Fuse Rating |
30 A |
| Operating Temperature |
40°F to 185°F |
| Glass |
2.0 + 2.0 mm Tempered Glass |
| Weight |
68.8 lb |
Questions about this product, shipping, or warranty? Contact Tricky Lizard.
SKU: RS-M580BF-8
