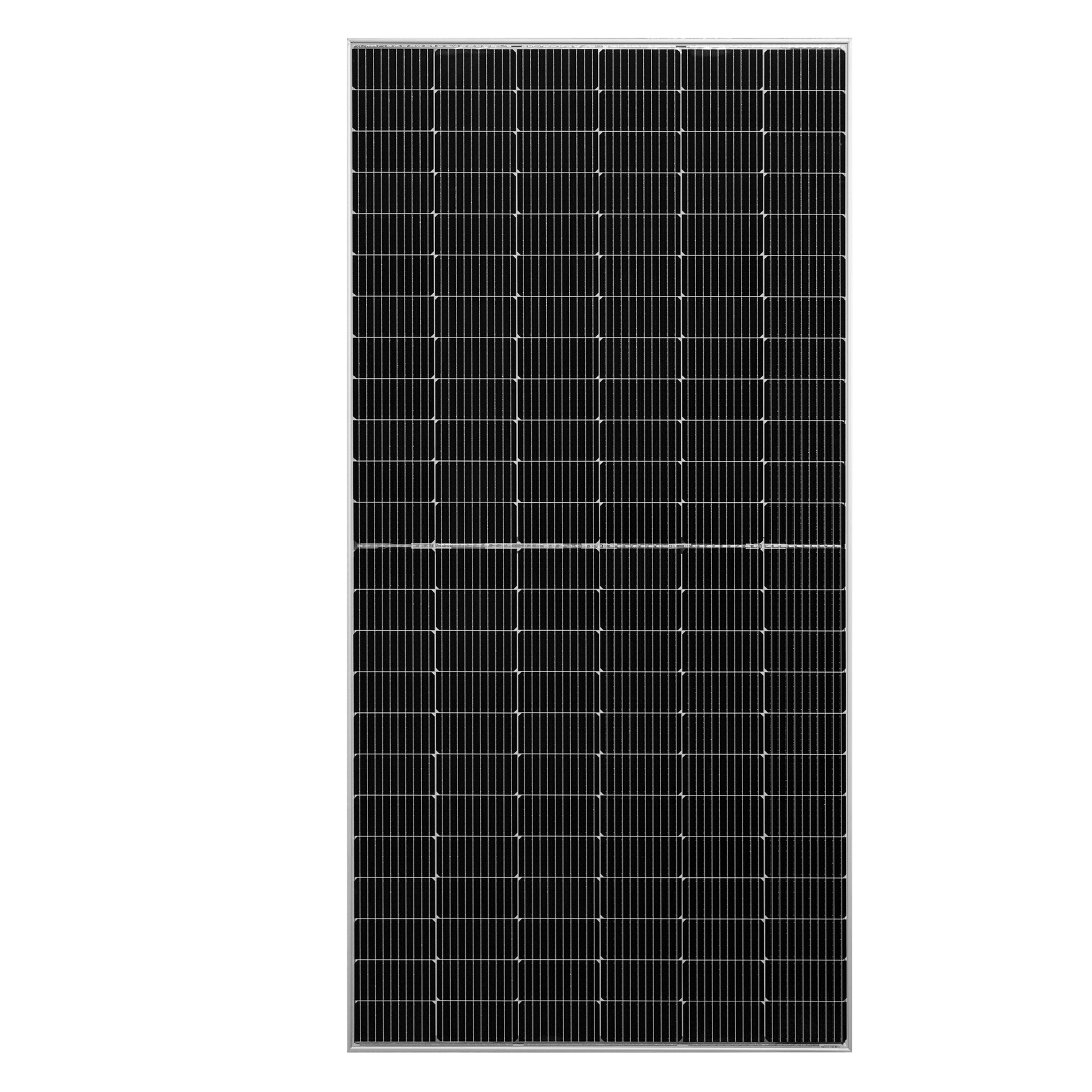

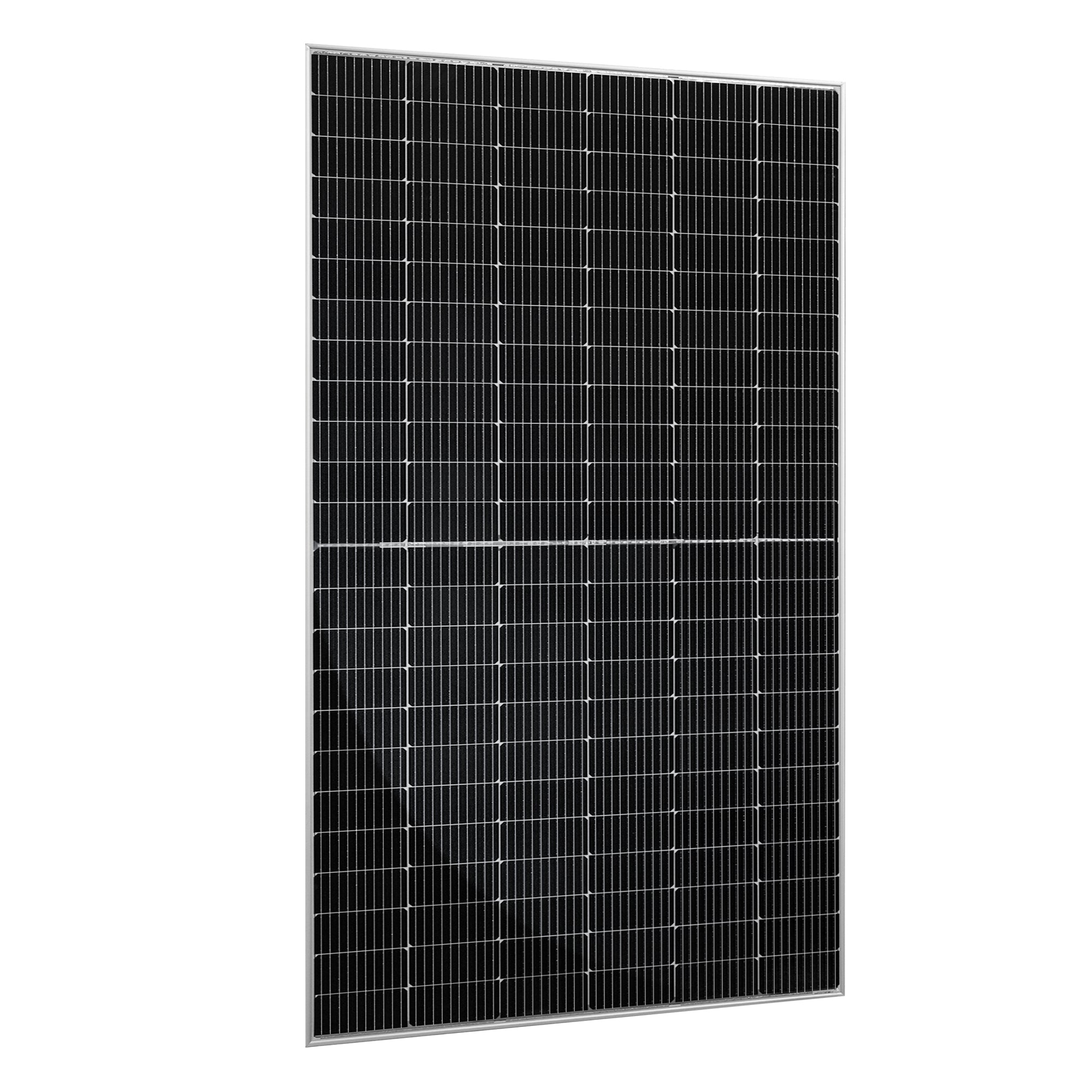

MEGA 600 BIFACIAL solar panel delivers 600W at 24V with high efficiency and bifacial gain. Designed for off-grid residential, agricultural, and commercial use with durable, weather-resistant construction.
Features
- 24V off-grid solar panel.
- 16-busbar N-Type TOPCon cells with up to 25.1% efficiency.
- Excellent IAM and low-light performance for reliable energy production.

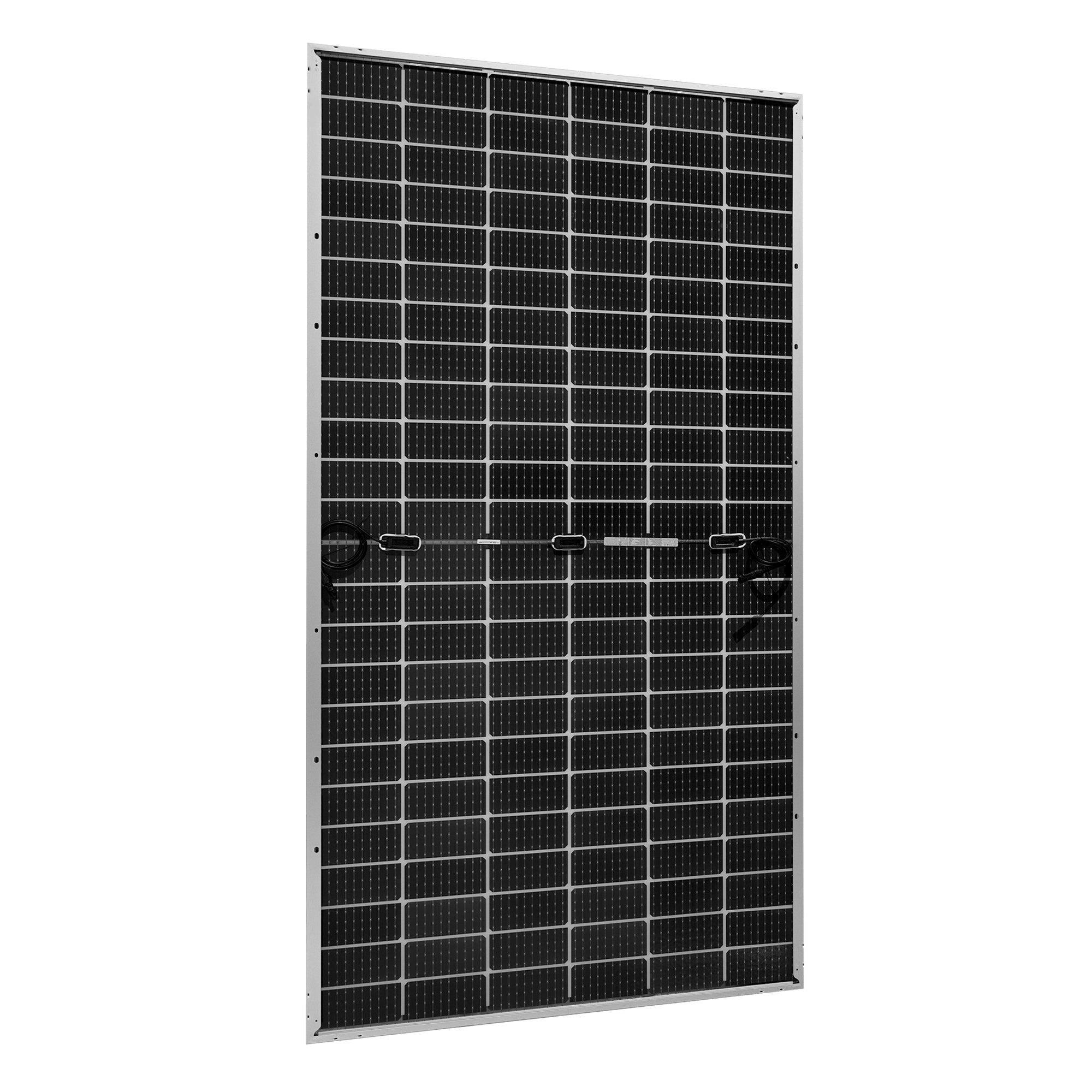

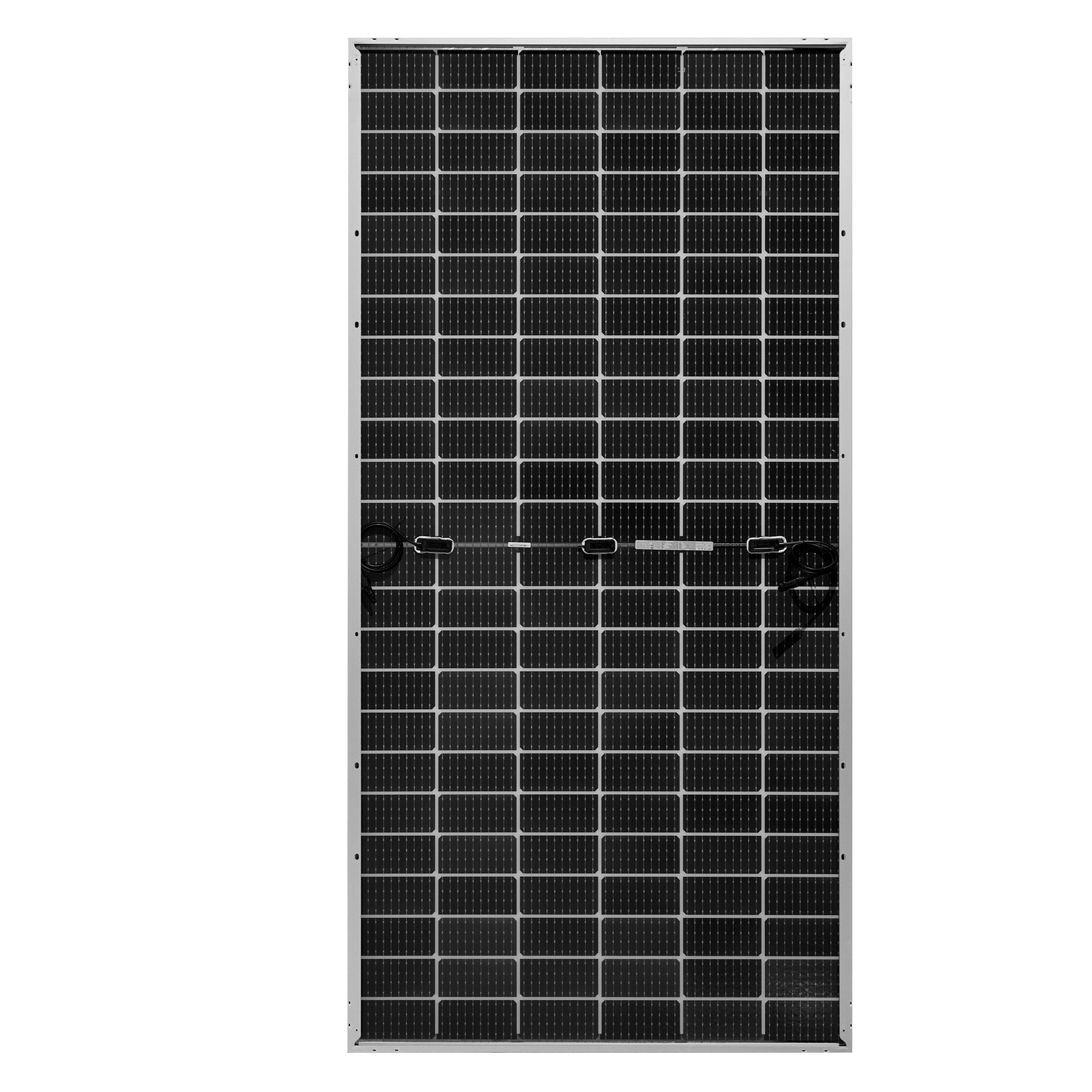

- Bifacial design delivers up to 25% additional rear-side power gain, depending on surface albedo.
- 144-cell configuration delivers a reliable 600W output.
- 2.0 mm front and rear tempered glass maximizes durability and bifacial performance.
- Power tolerance 0 to +5W ensures at least the rated output.
- Excellent low-light performance on cloudy days and at dawn/dusk.
- PID-resistant and 100% EL-inspected to help prevent microcracks.
- Rated for 5400 Pa snow loads and 2400 Pa wind loads.
- Certified to UL 61730, IEC 61215, and CSA C22.2 standards.
- Ideal for residential, agricultural, and commercial applications to reduce electricity costs.
Installation
- Anodized aluminum frame – lightweight, strong, and corrosion-resistant
- 8 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
- MC4 connectors with 4 ft pre-attached cables for quick and easy installation
- Compatible with both on-grid and off-grid inverters
- 25-year output warranty
- 10-year workmanship warranty
What's included
- Panel Leads (Pair): 12 AWG, 4 ft each
- IP68-rated waterproof junction box
- IP67-rated waterproof solar connectors
- Maximum Power (PMAX): 600 W
- Maximum Power Voltage (VMP): 44.2 V
- Maximum Power Current (IMP): 13.5 A
- Open Circuit Voltage (VOC): 52.9 V
- Short Circuit Current (ISC): 14.3 A
- Maximum System Voltage: 1500 VDC
- Max Series Fuse Rating: 25 A
- Operating Temperature: -40°F to 185°F
- Glass: 2.0 + 2.0 mm Tempered Glass
- Weight: 70.6 lb
- Dimensions: 89.7 × 44.6 × 1.2 in
Specifications
| Maximum Power (PMAX) |
600 W |
| Maximum Power Voltage (VMP) |
44.2 V |
| Maximum Power Current (IMP) |
13.5 A |
| Open Circuit Voltage (VOC) |
52.9 V |
| Short Circuit Current (ISC) |
14.3 A |
| Maximum System Voltage |
1500 VDC |
| Max Series Fuse Rating |
25 A |
| Operating Temperature |
40°F to 185°F |
| Glass |
2.0 + 2.0 mm Tempered Glass |
| Weight |
70.6 lb |
| Dimensions |
89.7 × 44.6 × 1.2 in |
Questions about this product, shipping, or warranty? Contact Tricky Lizard.
SKU: RS-M600BF-8
