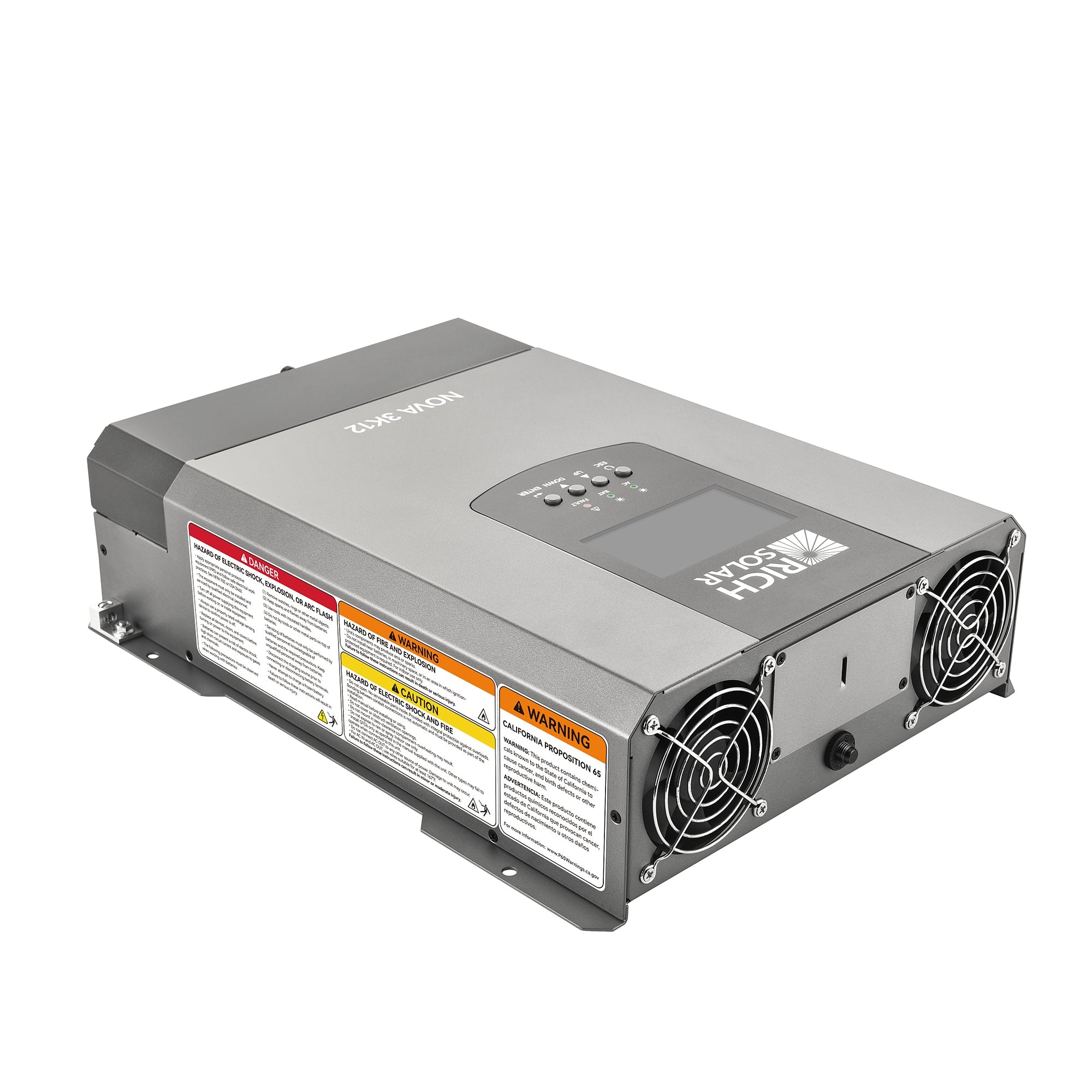

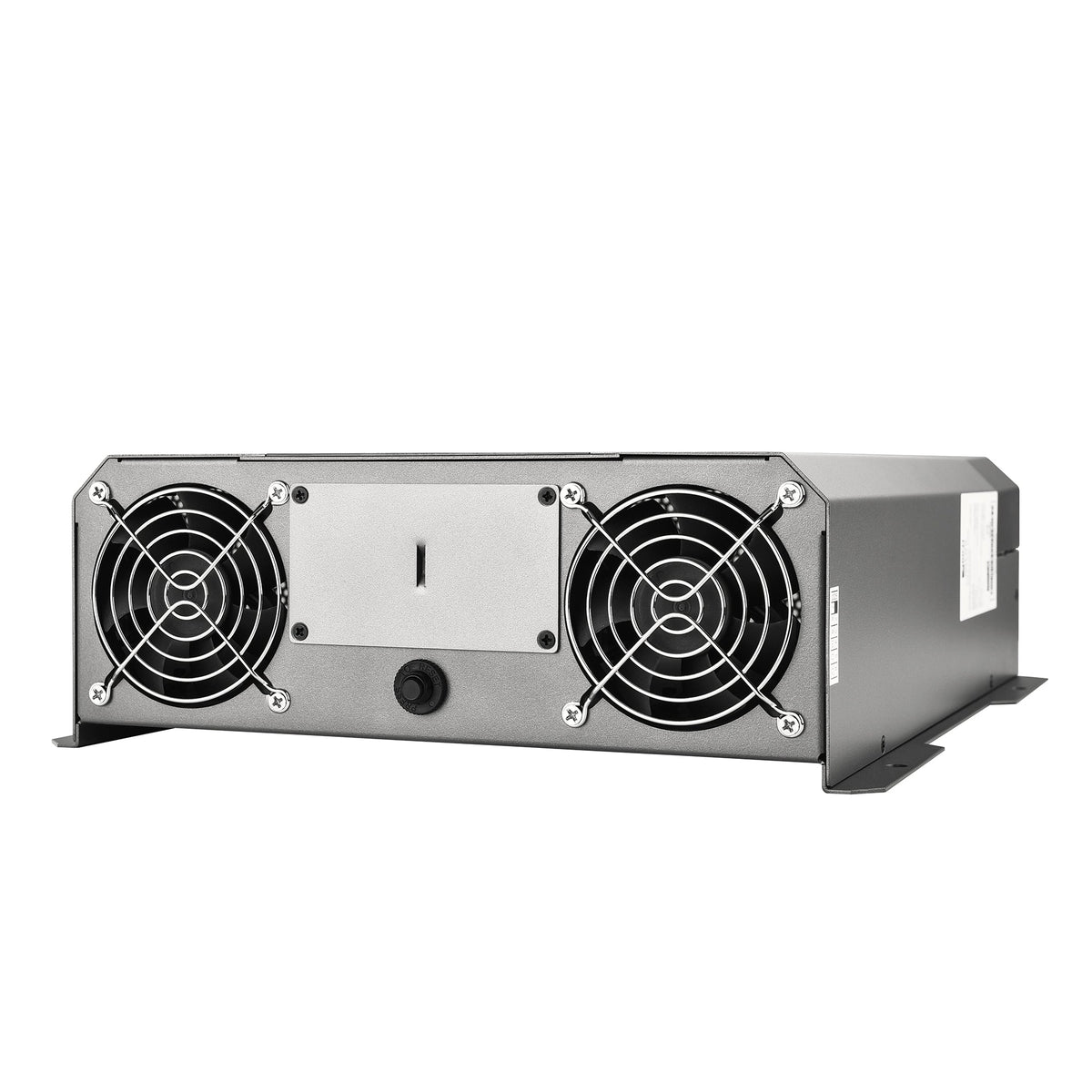

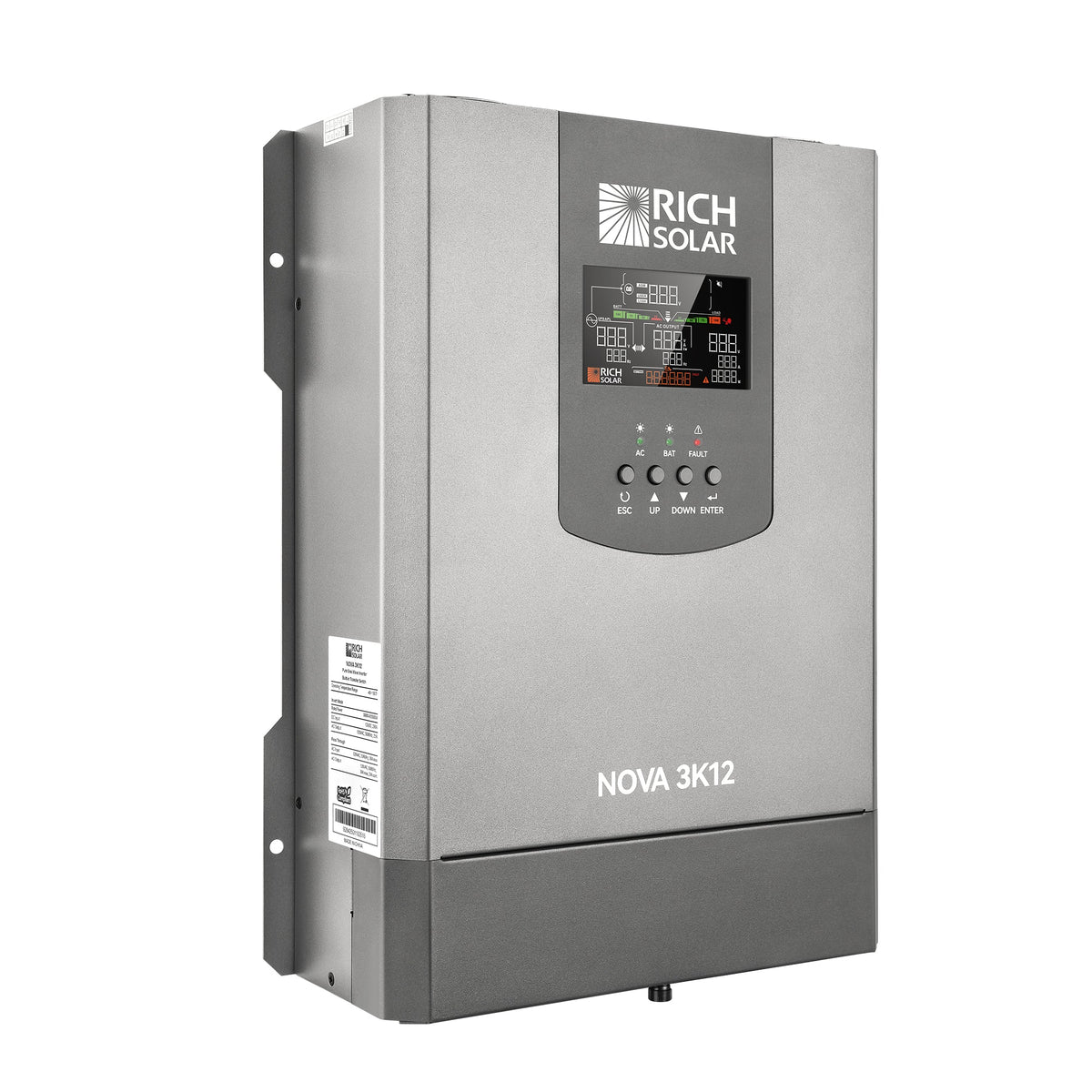

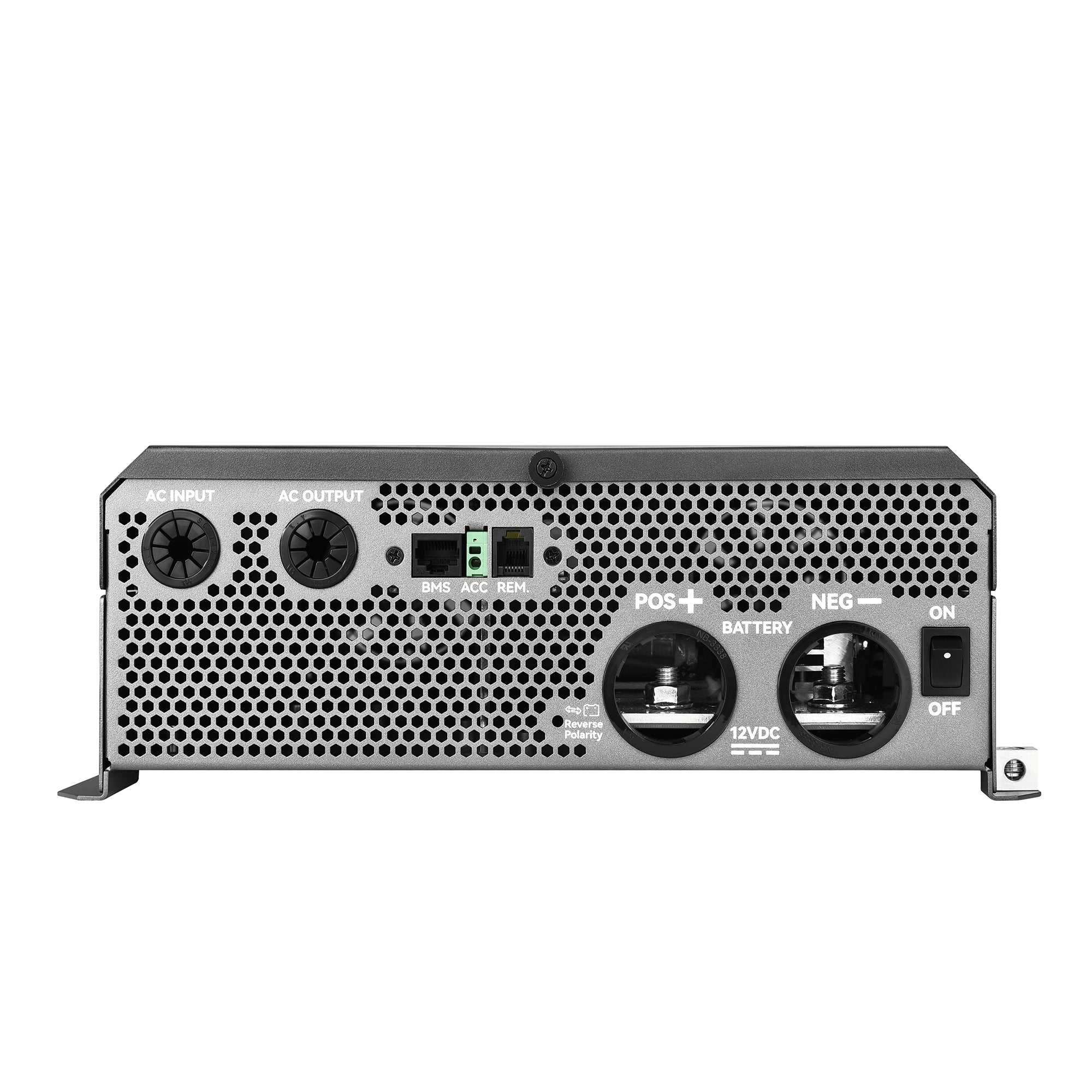

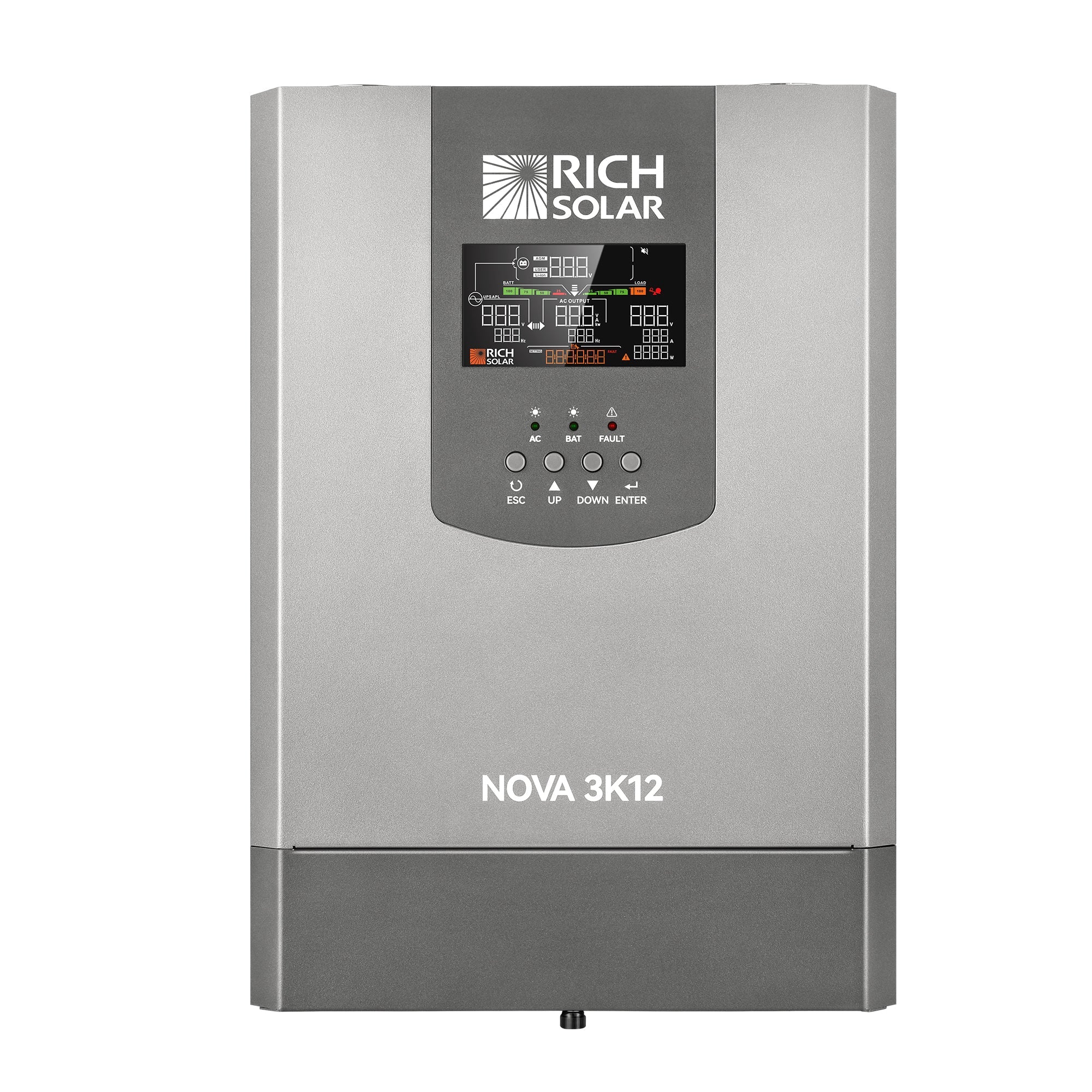

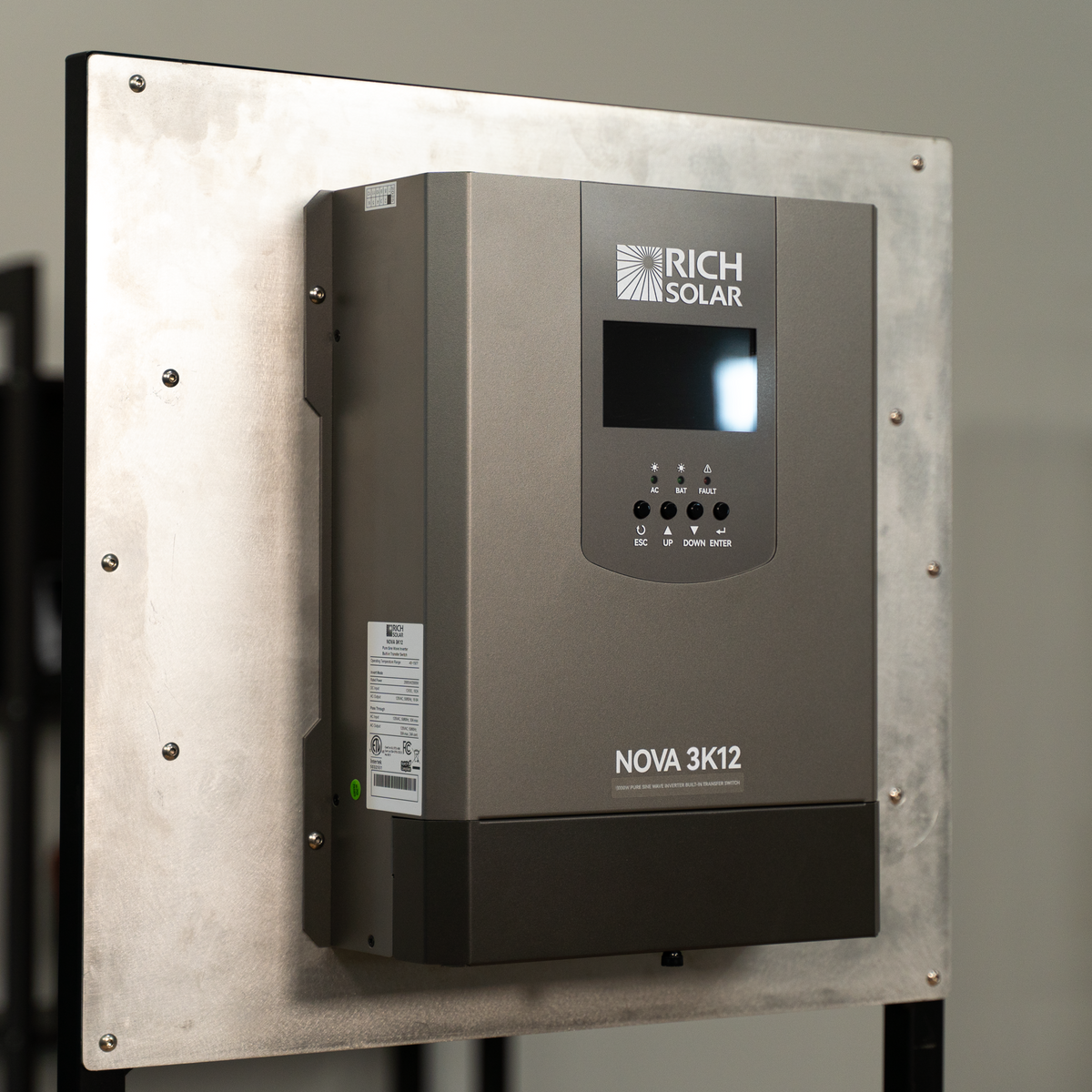

NOVA 3K12 — 3000W 12V Pure Sine Wave Inverter with Built-in Transfer Switch

The NOVA 3K12 is a 3000W 12V pure sine wave inverter with a built-in transfer switch, designed for RVs, trailers, campers, and vans. UL458 certified, it delivers stable 120V AC power from a 12V battery system. With <5% THD, 92% efficienc

Features

• Power Conversion
• 3,000W Pure Sine Wave Output: Delivers reliable AC power with a 6,000W surge capacity for RVs, boats, and off-grid applications.
• Up to 91% Peak Efficiency: Maximizes battery runtime while reducing energy loss.
• Built-in Transfer Switch (<20ms): Automatically switches between shore power and inverter power for uninterrupted operation.
• Smart Operation
• Multiple Power Sources: Supports utility grid power or AC generators for AC input and 12V battery power for inverter operation.
• Battery Compatibility: Compatible with 12V deep-cycle and lithium (BMS) batteries.
• Configurable AC Output: Selectable 108V, 110V, or 120V output voltage and 50Hz or 60Hz output frequency.
• Ignition Control: Supports automatic inverter ON/OFF with the vehicle's ignition circuit or a manual remote switch.
• Reliable Protection
• Pure Sine Wave Output (<5% THD): Delivers clean, stable power for sensitive electronics and household appliances.
• Advanced Protection System: Adjustable low-voltage shutdown (10.5V–12.8V) with overload, short-circuit, and over-temperature protection.
• Certified to UL 458 and FCC Part 15 standards.
• DC Input
• Nominal DC Voltage: 12V DC
• Operating voltage range: LBCO - 18.0V DC
• Nominal current at full load: 288A DC
• AC Input
• Nominal Input Voltage: 120V AC
• Operating Voltage Range: 80–140V AC (Full Power)

Specifications

Questions about this product, shipping, or warranty? Contact Tricky Lizard.

SKU: RS-V3P12TS
