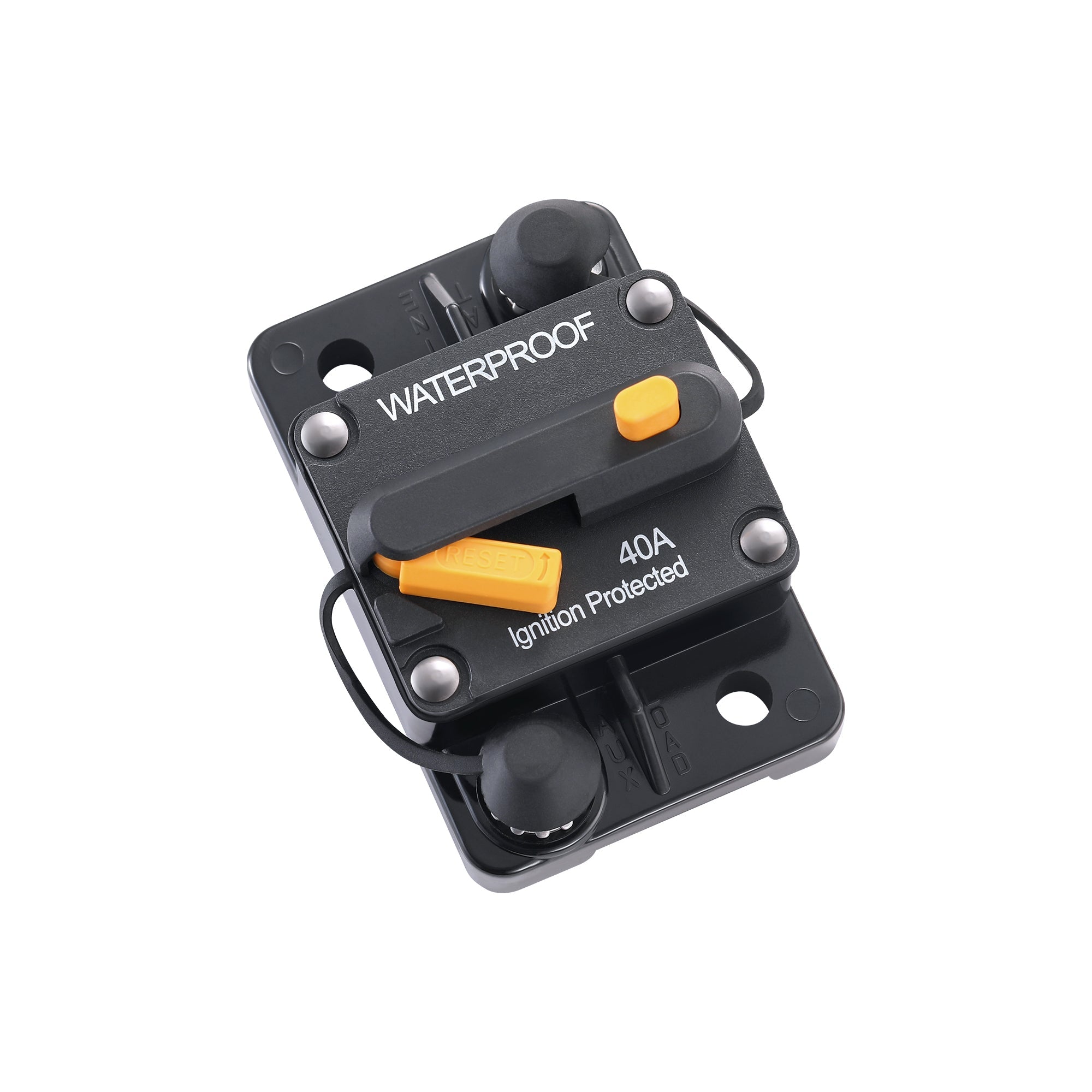

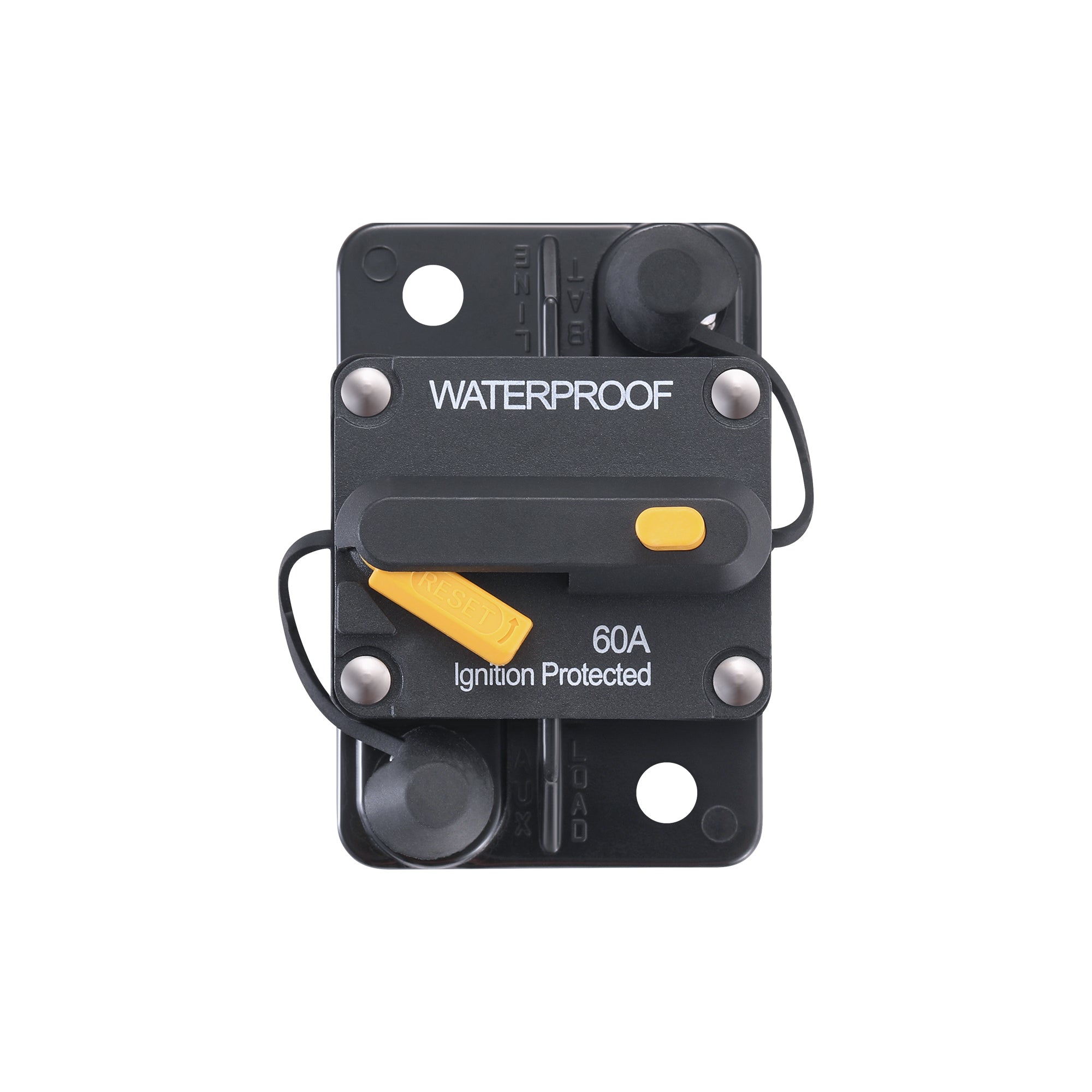

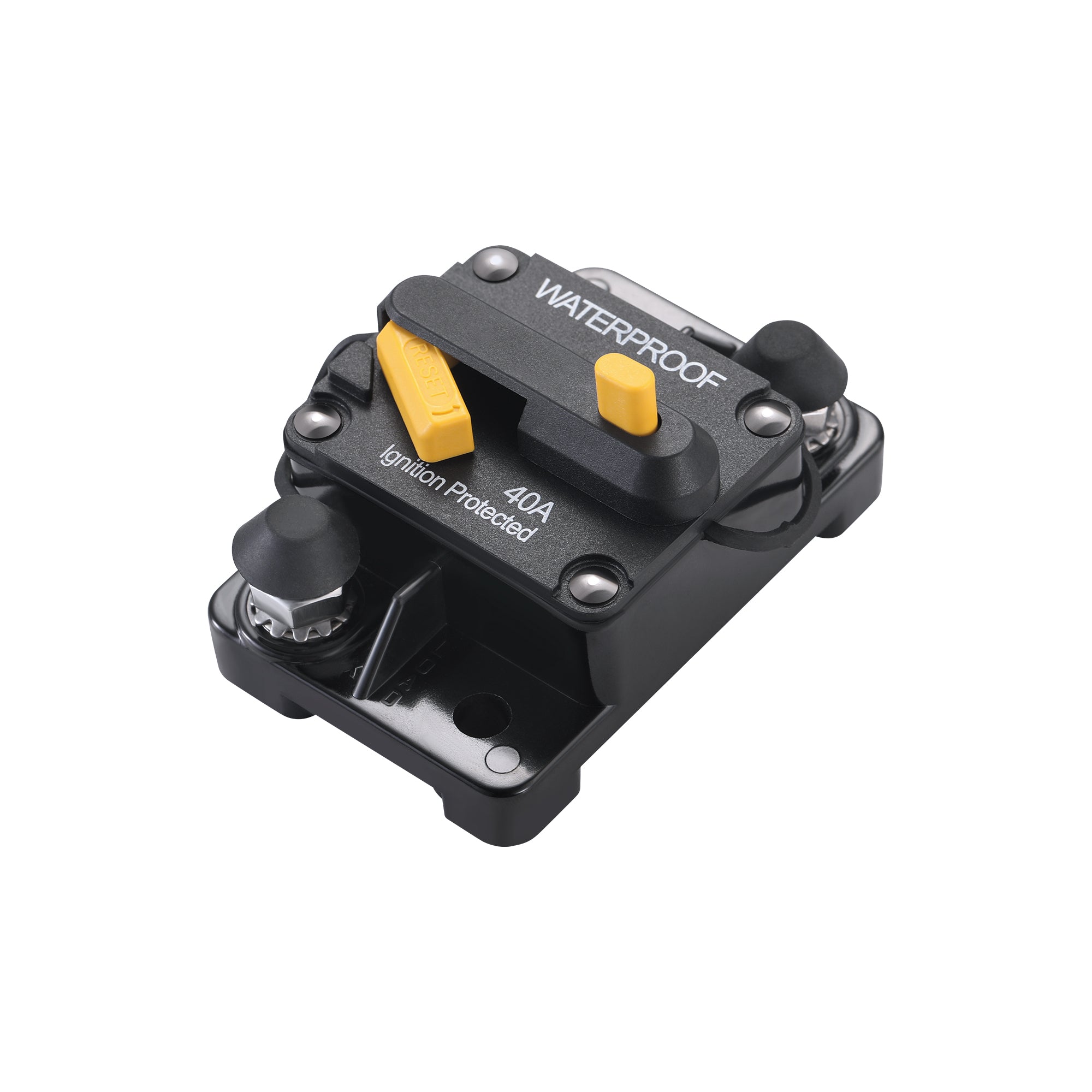

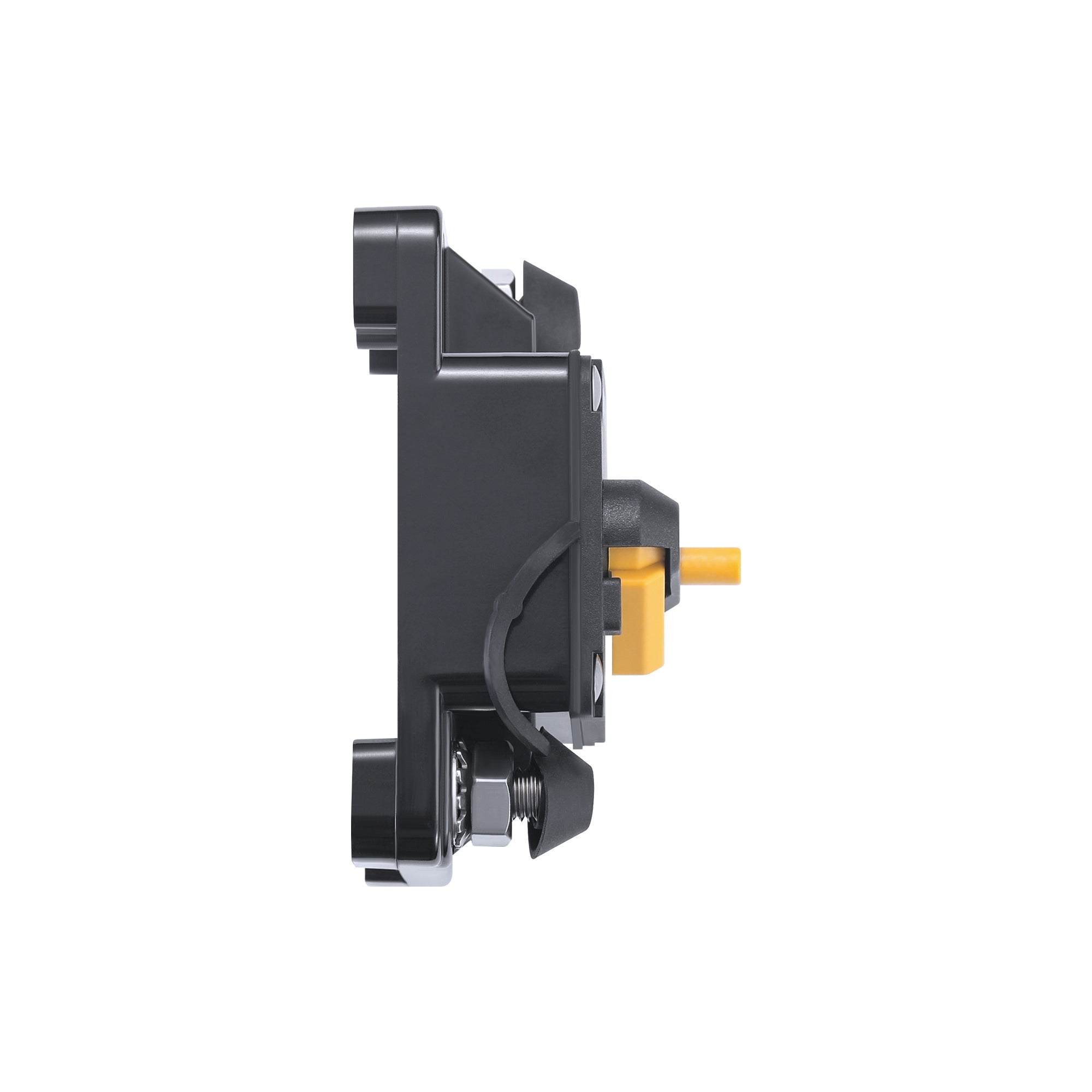

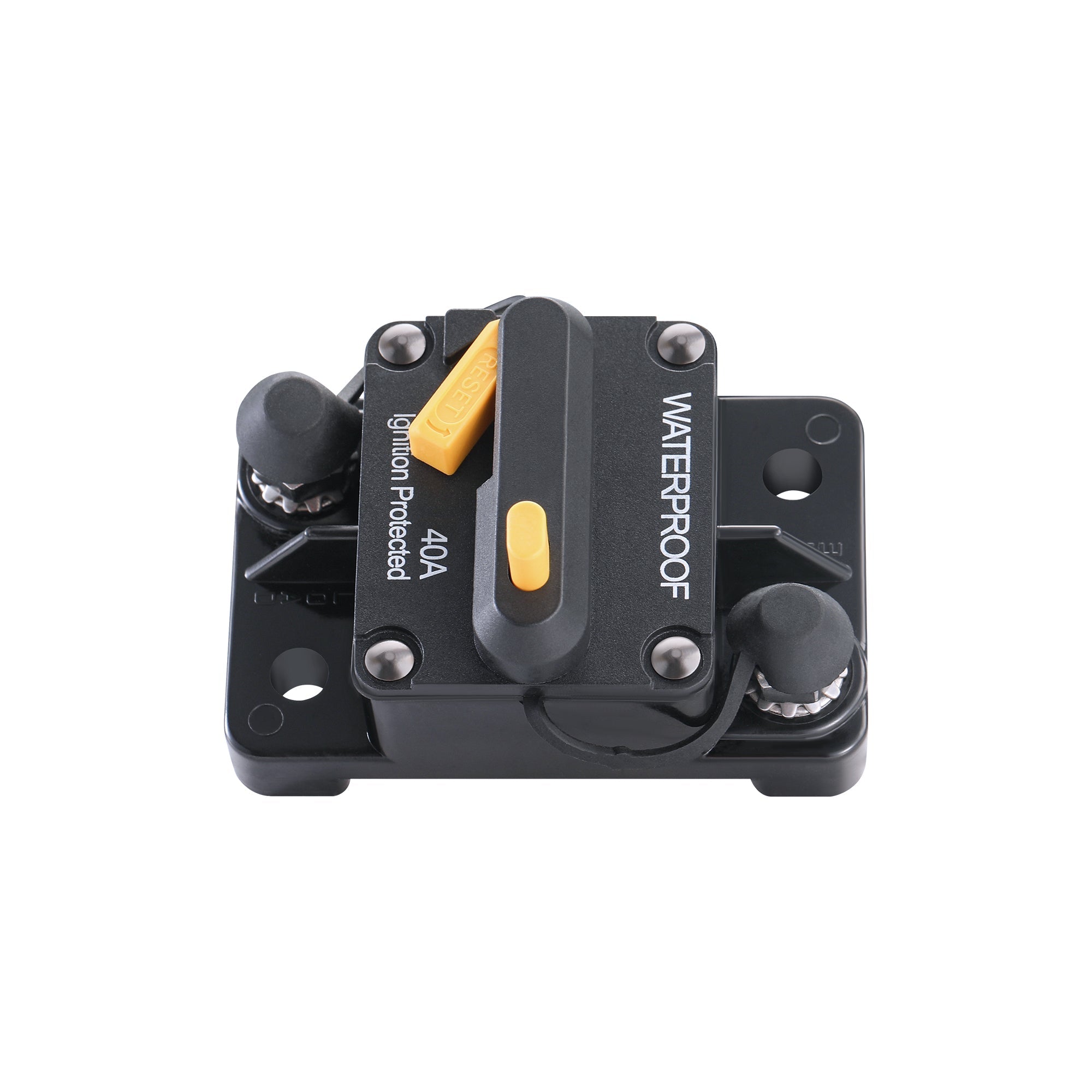

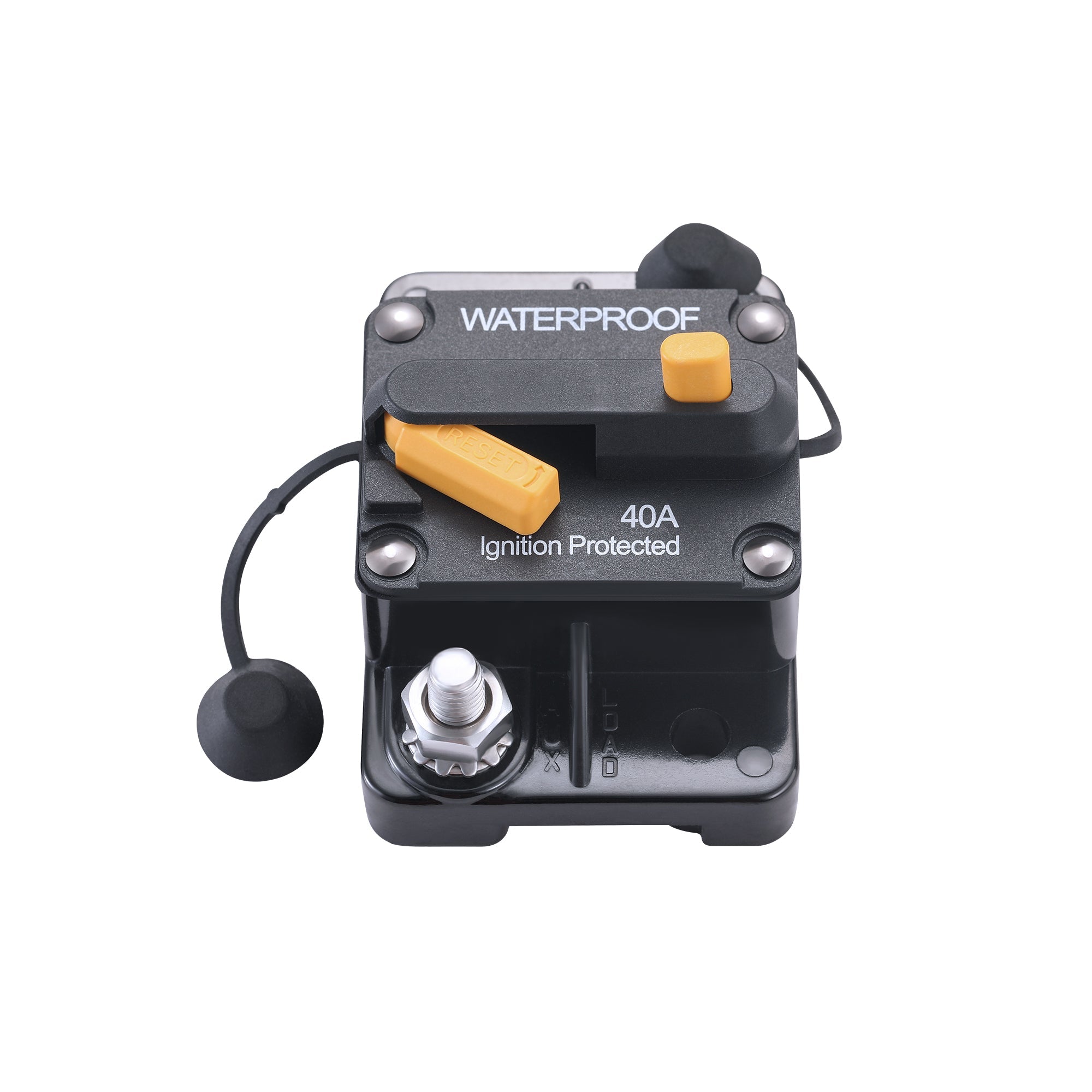

Heavy-duty DC circuit breaker rated 25–250A, 30VDC/48VDC, with 3000A interrupt capacity. IP67 waterproof, manual reset, flame-retardant UL 94V-0 housing. Ideal for trucks, RVs, boats, and DC systems. SAE J1171, ABYC E-11, CE compliant. Easy
Features
- Advanced Circuit Protection: Protects DC systems from overloads and short circuits with a 3,000A @ 30VDC interrupt rating.
- Manual Reset Function: Features a push-to-trip button and reset lever for easy testing and quick power restoration.
- IP67 Waterproof Housing: Sealed construction protects against water, dust, and harsh outdoor environments.
- UL94 V-0 Flame-Retardant Housing: Durable thermoplastic housing with insulated terminals enhances safety and long-term reliability.
- Panel or Surface Mount: Supports flexible installation with 1/4"-28 or 3/8"-16 threaded stud terminals.
- 25A–250A Current Options: Available in multiple current ratings to support a wide range of DC power applications.
- Industry-Recognized Certifications: Meets SAE J1625, SAE J1171, ABYC E-11, and CE standards for dependable performance.
- Current Ratings: 25A–250A
- Rated Voltage: 30VDC, 48VDC
- Interrupt Rating: 3,000A @ 30VDC
- Operating Temperature: -25°F to 180°F
- Storage Temperature: -30°F to 300°F
- Housing Material: UL94 V-0 Flame-Retardant Thermoset Plastic
- Terminal Type: 1/4"-28 or 3/8"-16 Threaded Studs
- Max Terminal Torque: 50 in-lbs (5.6 N·m)
- Mounting: Panel or Surface Mount
- Waterproof Rating: IP67
- Certifications: SAE J1625, SAE J1171 (Ignition Protected), ABYC E-11, CE
- Package Dimensions: 4 × 6 × 3 in
- Gross Weight: 1 lb
Questions about this product, shipping, or warranty? Contact Tricky Lizard.
SKU: RS-CB40
