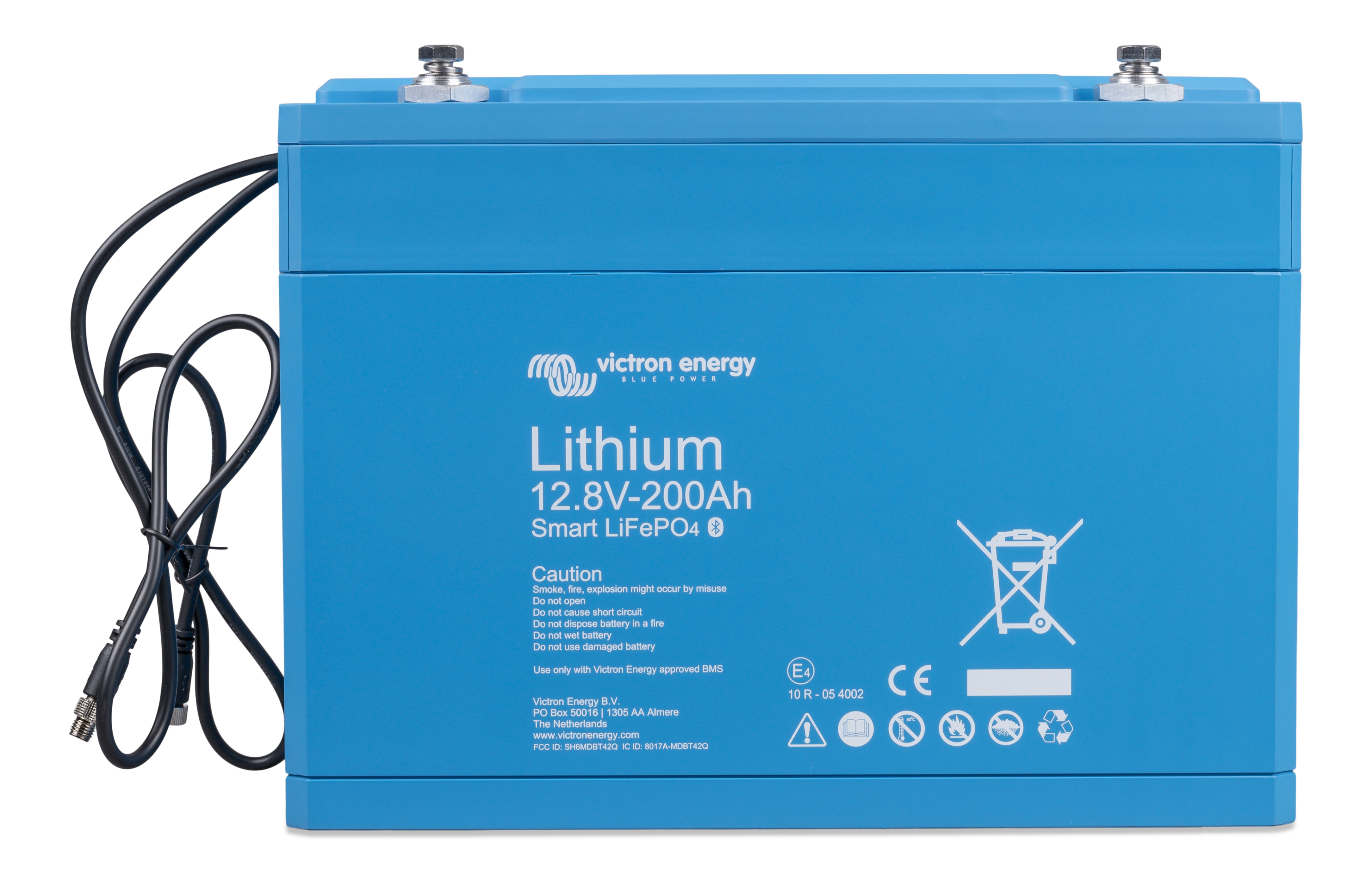

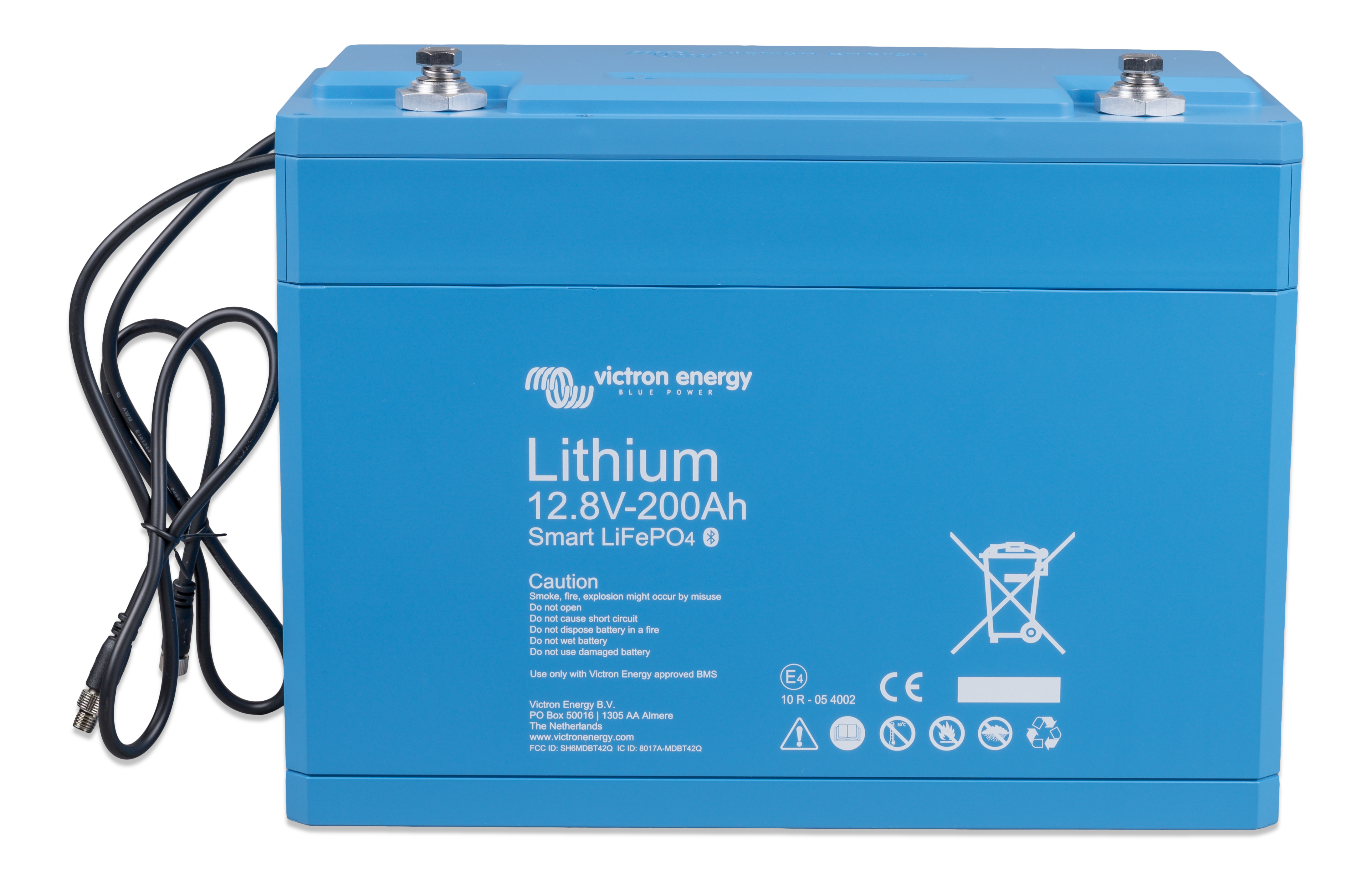

Victron LiFePO4 Battery 12.8V/200Ah Smart
SKU: BAT512120610
$1,561.45 $1,561.45
Shipping calculated at checkout.
In stock
Description
DatasheetManual

12.8V / 200Ah LiFePO4 with Bluetooth cell monitoring. Series and parallel for 12V, 24V, or 48V banks. Requires a Victron BMS (sold separately). This is not the SuperPack (SuperPack has an internal BMS and cannot be series-connected).

  • Bluetooth cell voltage and temperature in VictronConnect
  • Series/parallel for 12/24/48V (up to 20 batteries per system)
  • Must be used with a Victron BMS — will not protect itself alone
Chemistry LiFePO4
Nominal voltage / capacity 12.8V / 200Ah
Energy 2560 Wh
Dimensions (h × w × d) 237 × 321 × 152 mm
Weight 20 kg (44 lb)
Connection M8
BMS Required, sold separately
SKU BAT512120610

You'll also need

A Victron BMS: VE.Bus BMS V2 with a MultiPlus/Quattro, or Lynx Smart BMS 500 (M8). Cerbo GX MK2 if you want it on a GX system.

Questions: contact Tricky Lizard.
