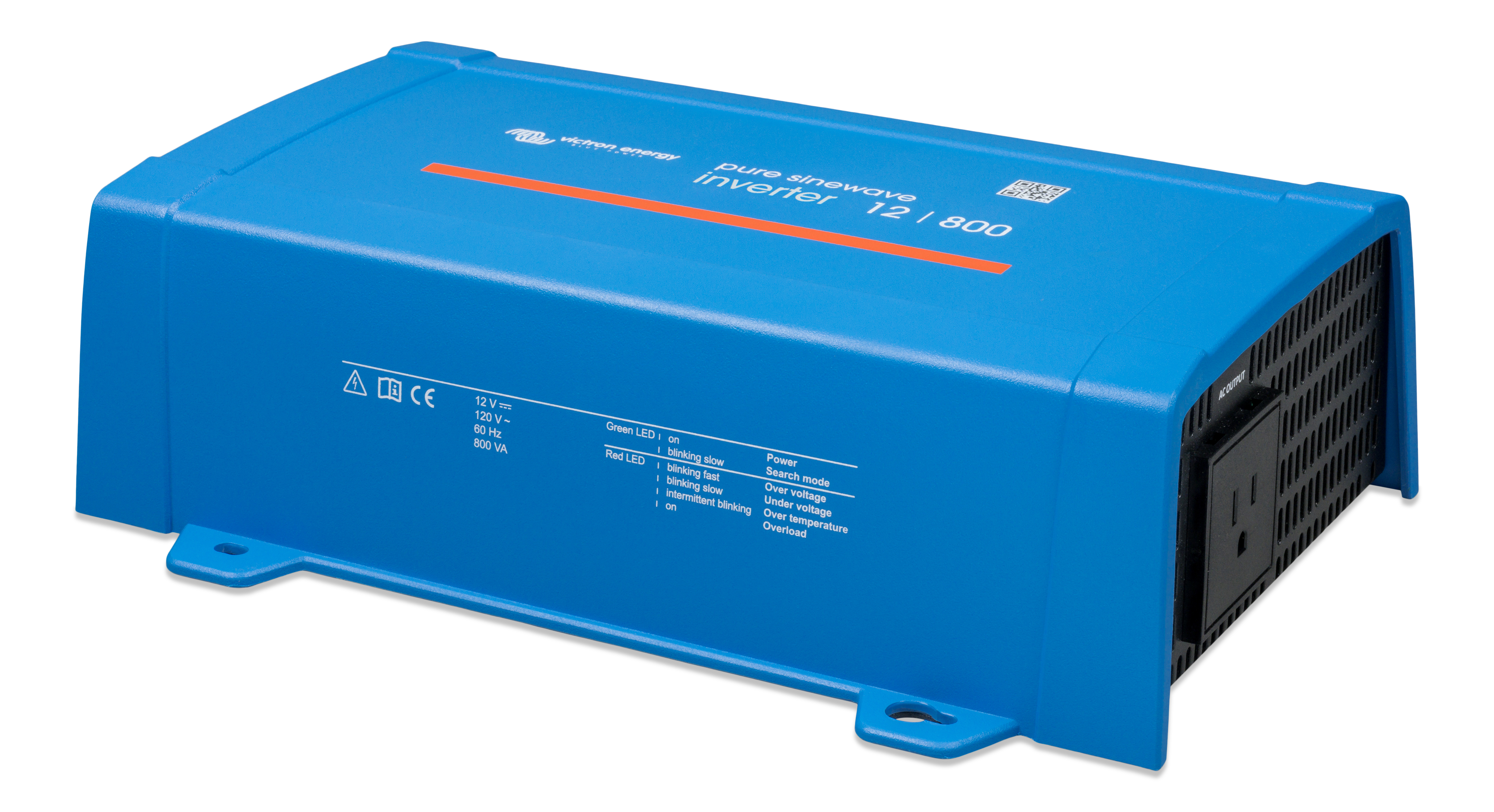

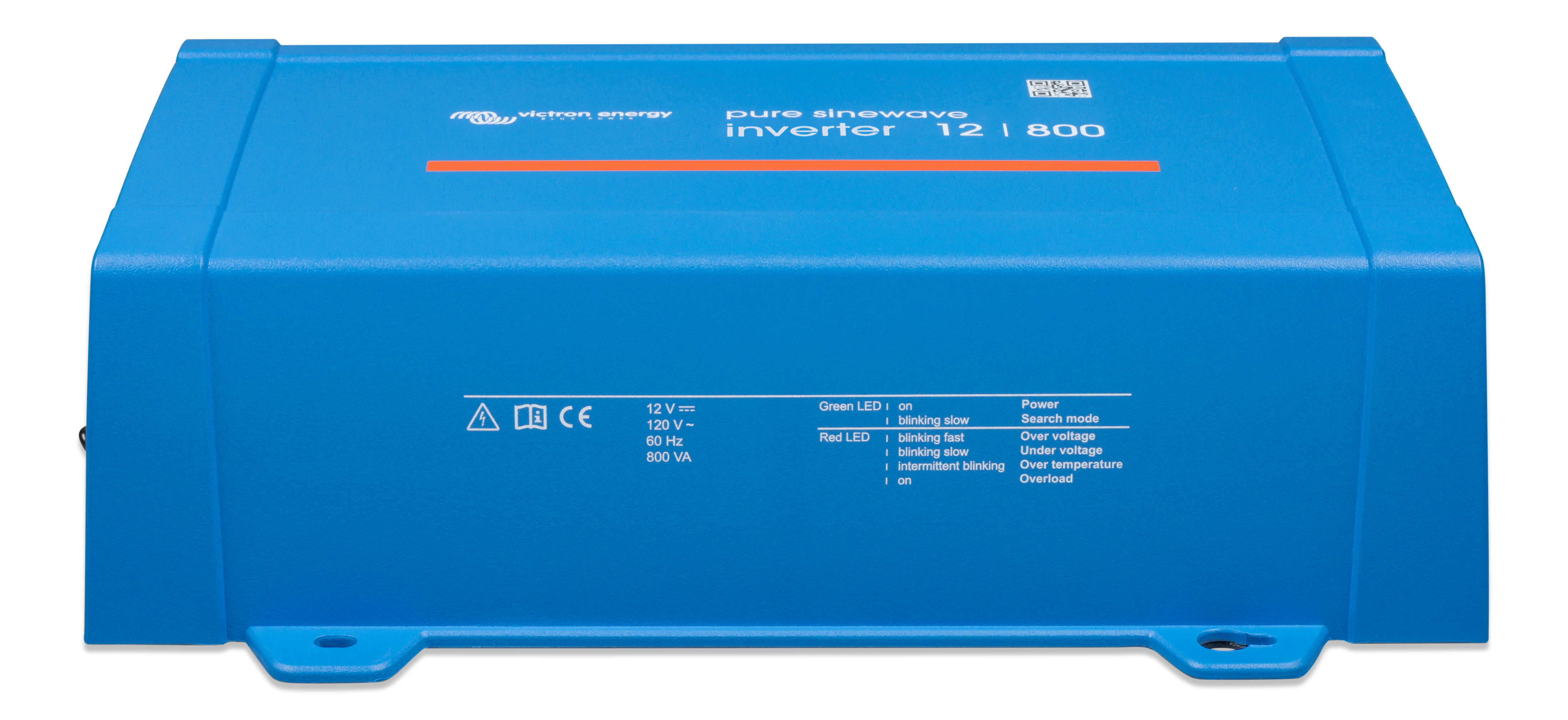

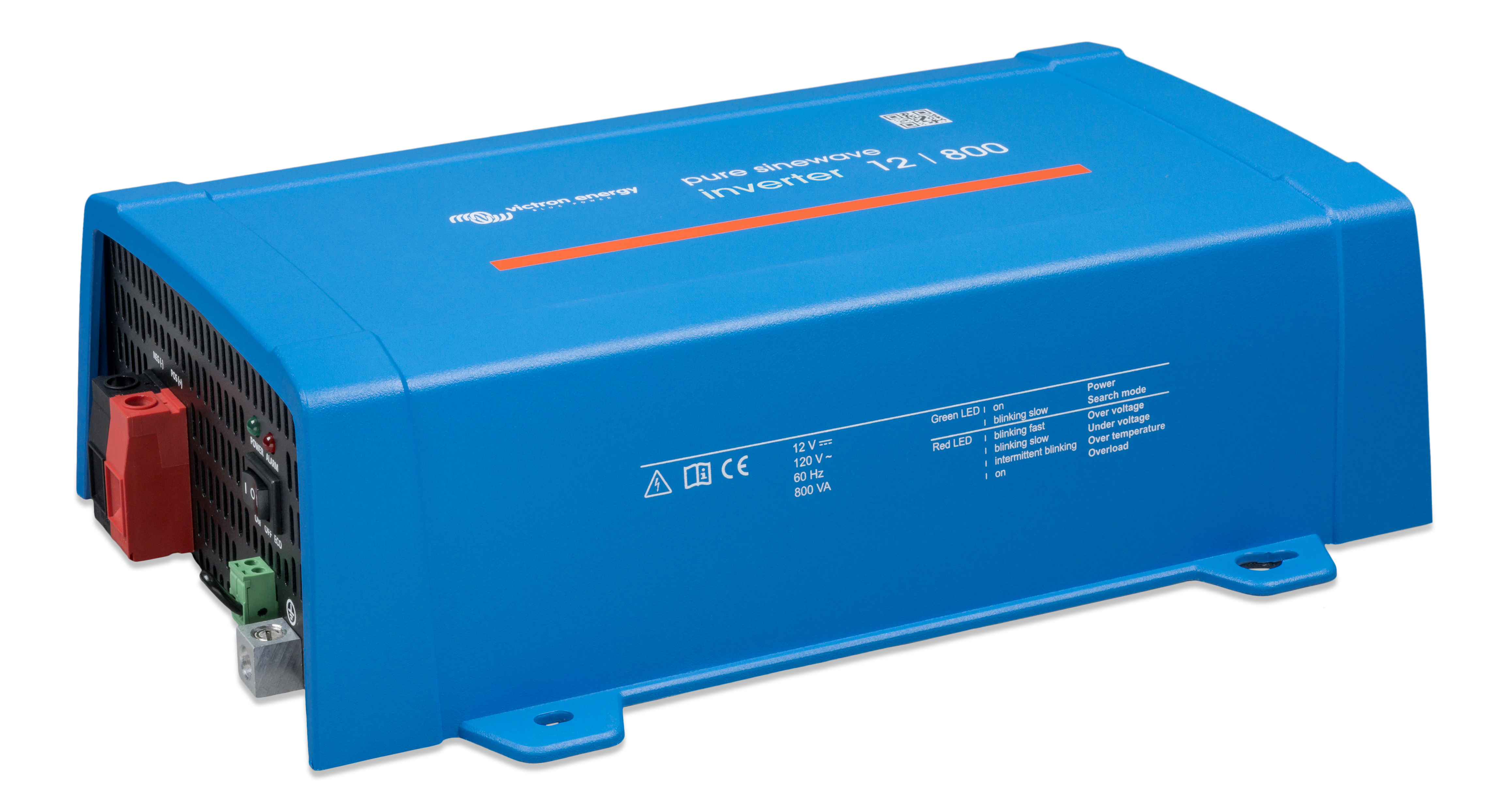

Victron Phoenix Inverter 12/800 120V VE.Direct NEMA 5-15R
SKU: PIN121800500
$263.50 $263.50
Shipping calculated at checkout.
In stock
Description
DatasheetManual

Inverter only (no charger). 12V DC to 120V AC with a NEMA 5-15R outlet. VE.Direct for monitoring. Pair with a VE.Direct Bluetooth dongle or a VE.Direct cable to a Cerbo. This is not a MultiPlus.

  • 800VA class, 120V NEMA 5-15R, pure sine
  • VE.Direct (not VE.Bus) — no built-in Bluetooth
  • Inverter only; it does not charge the battery
Input 12V DC (9.2–17V)

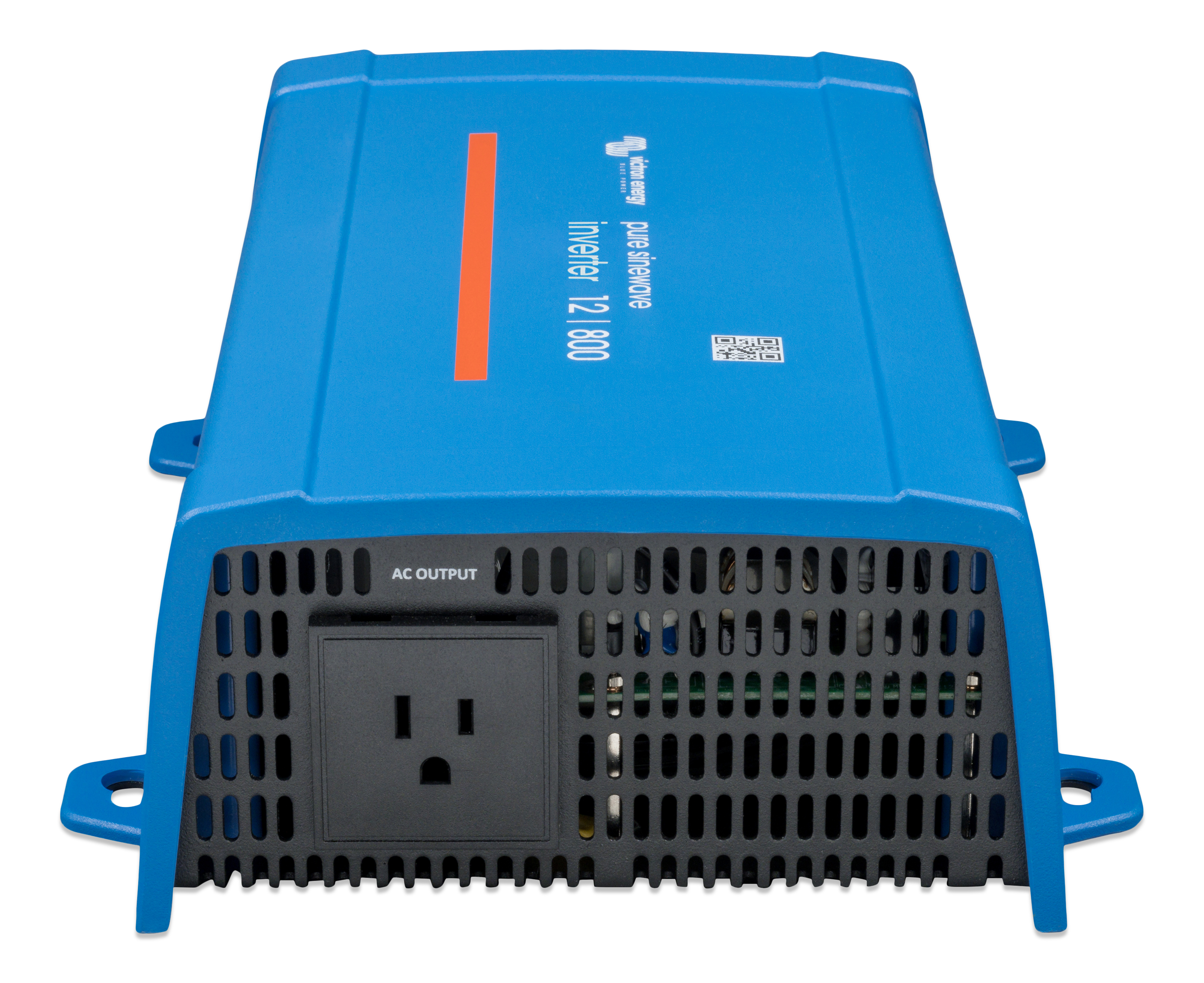

Output 120V AC, NEMA 5-15R
Continuous power (25°C) 800VA / 650W
Continuous power (40°C) 560W
Peak power 1500W

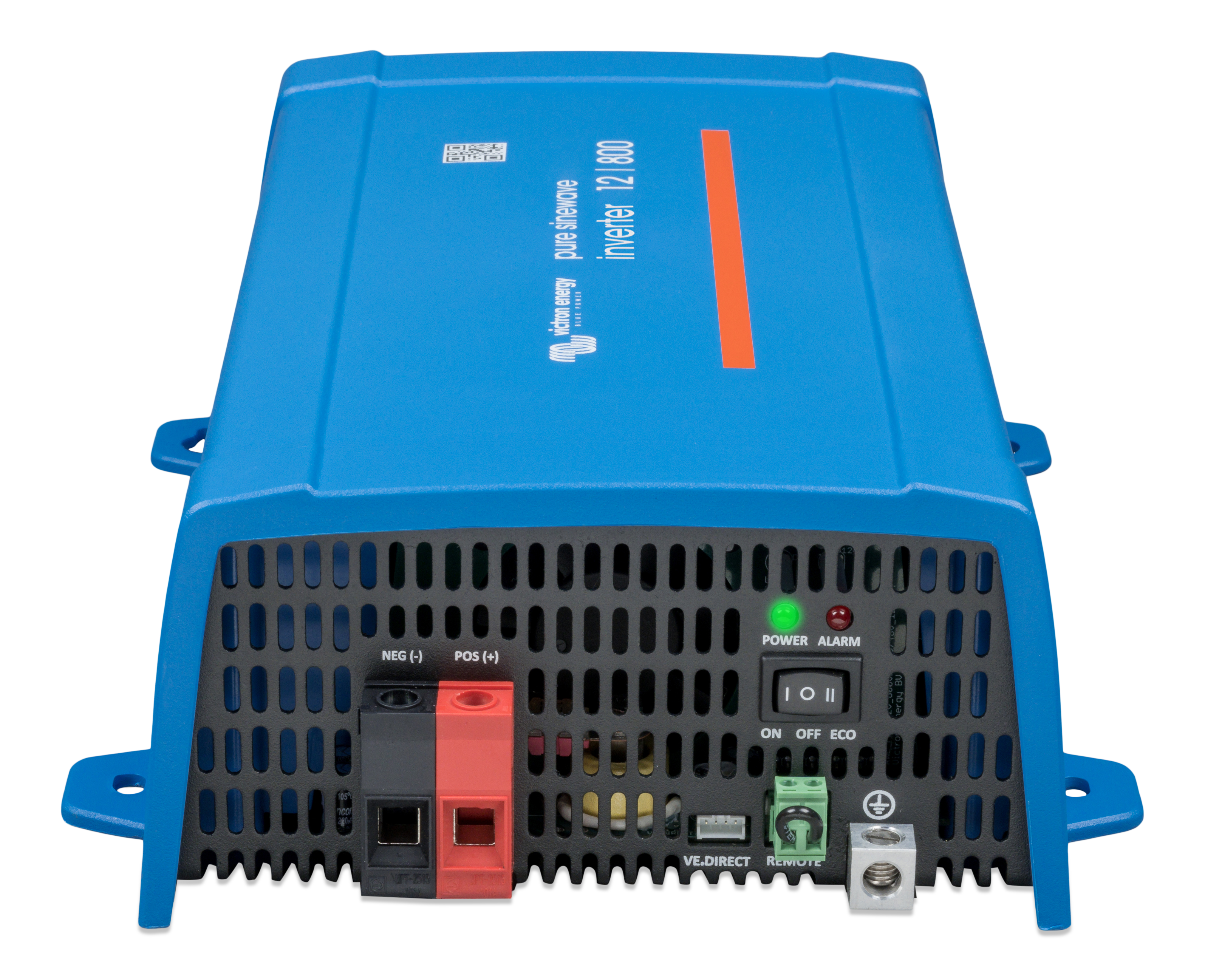

Data VE.Direct
Weight 5.5 kg (12 lb)
SKU PIN121800500

You'll also need

VE.Direct Bluetooth Smart dongle for the VictronConnect app, or a VE.Direct 1.8m cable plus Cerbo GX MK2. Do not use an RJ45 VE.Bus cable on this unit.

Questions: contact Tricky Lizard.
